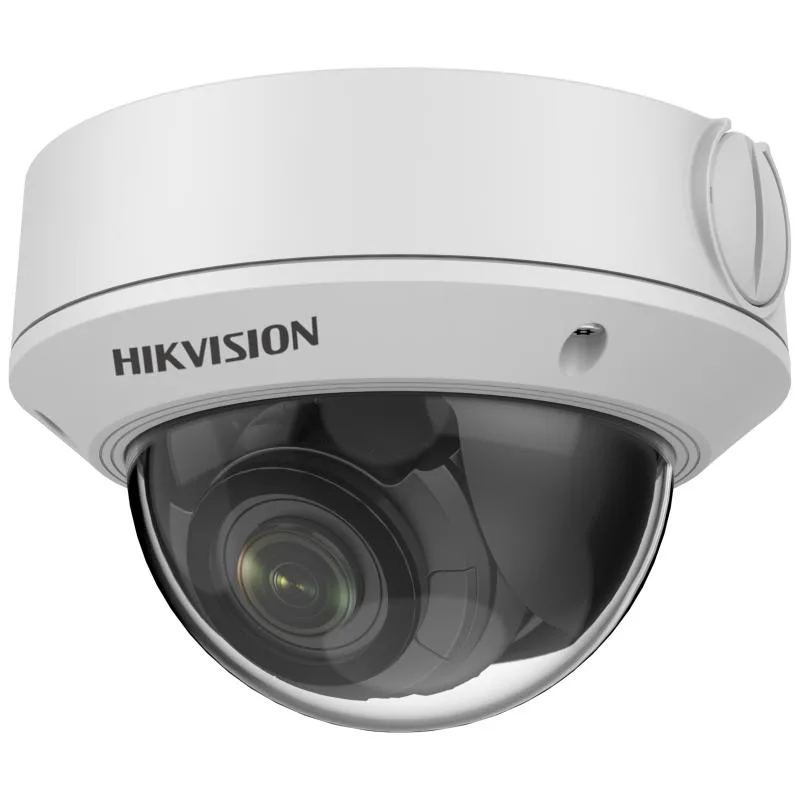

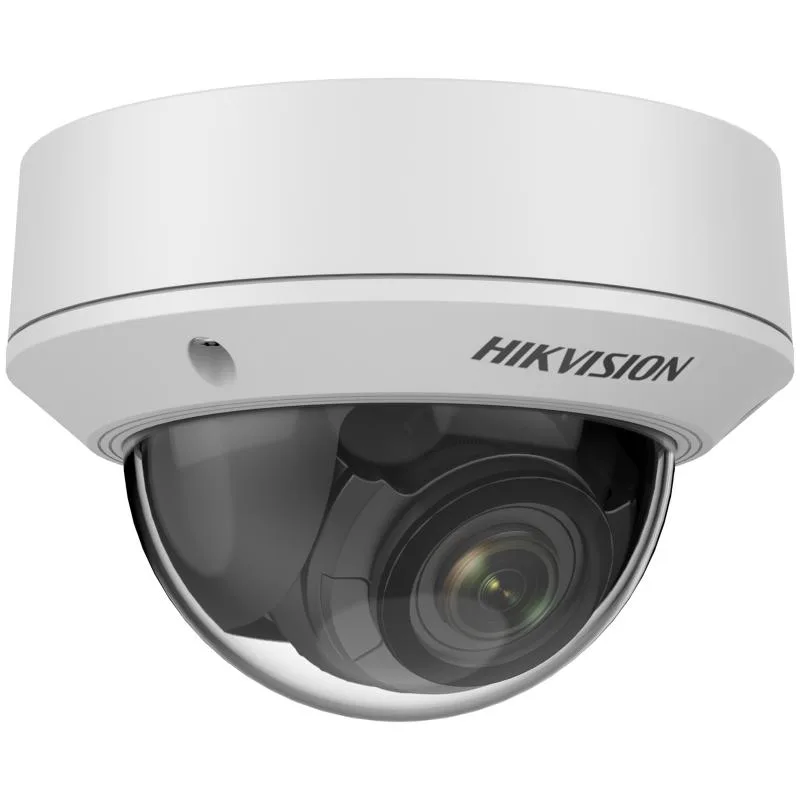

Hikvision DS-2CD1743G0-I(Z) - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CD1743G0-I(Z) - Dome IP kamera
Hikvision

Hikvision DS-2CD1743G0-I(Z) - Dome IP kamera

Model kodu
DS-2CD1743G0-I(Z)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Efficient H.265+ compression technology. Clear imaging even with strong back lighting due to 120 dB WDR. Up to 256 GB memory card slot for storage. 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring. Water and dust resistant (IP67) and vandal proof (IK10). EXIR 2.0: advanced infrared technology with long IR range

Teknik özellikler

Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Wide Dynamic Range 120 dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°
Lens Type Varifocal Lens, motoried lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35°
Lens Mount Ø14
Iris Type Fixed
Aperture F1.6
IR Wavelength 850 nm
IR Range Up to 30 m
Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate -S: 8 kHz/16 kHz
Environment Noise Filtering -S: Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Image Enhancement BLC, 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm -S: 1 input,1 output, max. 12 VDC, 30 mA
Reset Key Yes
Basic Event Motion detection, video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
Power 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
Camera Material Metal
Camera Dimension Ø141 mm × 99.9 mm (Ø5.6" × 3.9")
Package Dimension 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
Camera Weight Approx. 820 g (1.8 lb.)
With Package Weight Approx. 1200 g (2.6 lb.)
Storage Conditions -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Electrical Safety Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Dokümanlar

Data Sheet - 4 MP Varifocal Dome Network Camera Quick Start Guide - 4 MP Varifocal Dome Network Camera User Manual - 4 MP Varifocal Dome Network Camera FAQ - 4 MP Varifocal Dome Network Camera Network Camera V5.5.89 Release Note --G0 - 4 MP Varifocal Dome Network Camera Network Camera-V5.7.26 Release Note-E8 - 4 MP Varifocal Dome Network Camera
