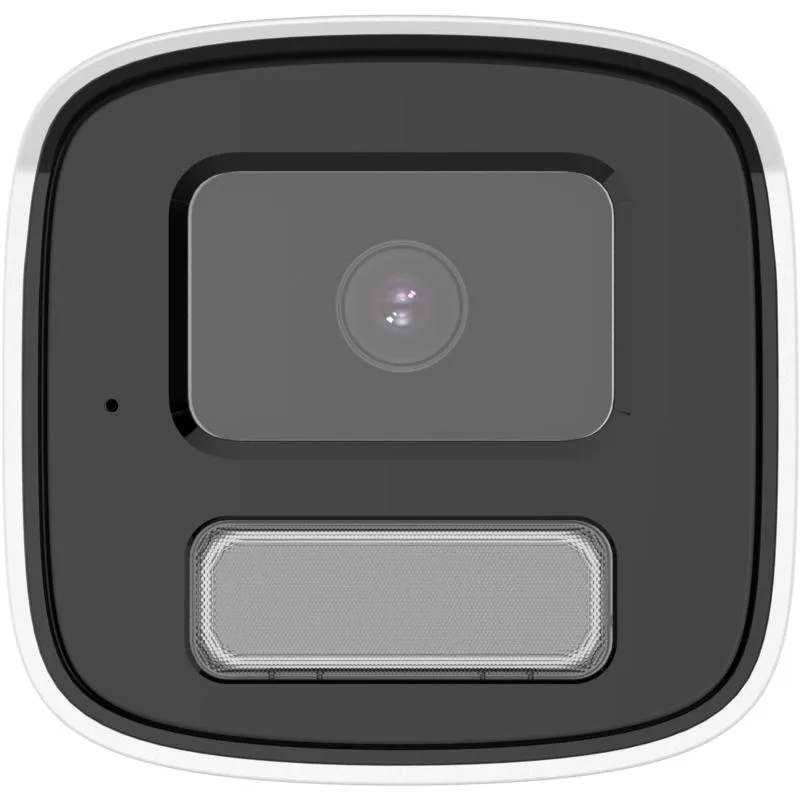

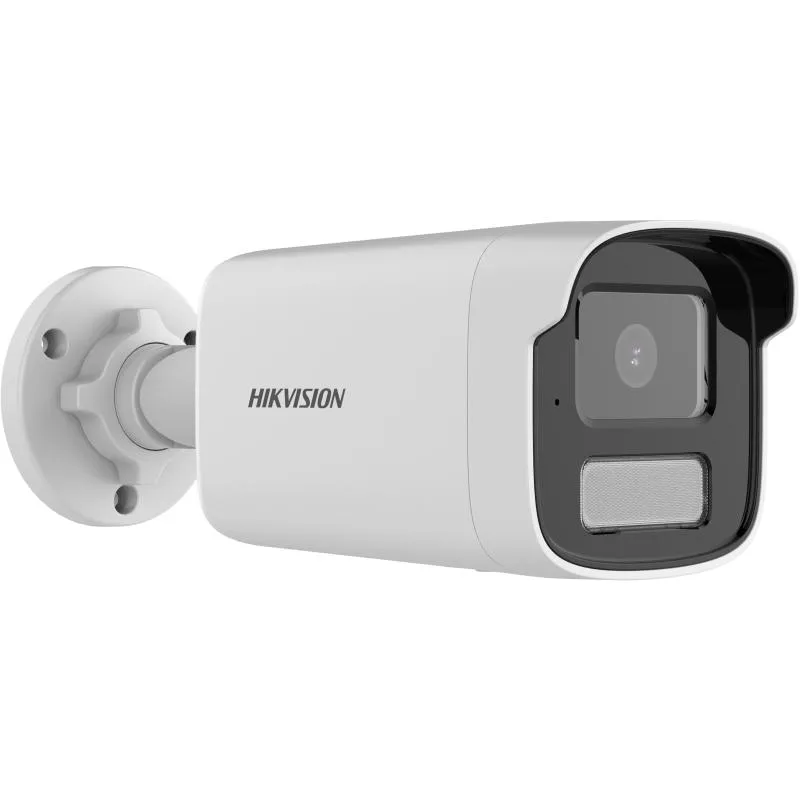

Hikvision DS-2CD1T43G2-LIU(F) - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2CD1T43G2-LIU(F) - Bullet IP kamera
Hikvision

Hikvision DS-2CD1T43G2-LIU(F) - Bullet IP kamera

Model kodu
DS-2CD1T43G2-LIU(F)
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Support Human and Vehicle Detection. Smart Dual-Light: advanced technology with long range. Built-in microphone for real-time audio security. Water and dust resistant (IP67). Efficient H.265+ compression technology. Support on-board storage up to 512 GB (SD card slot) (Optional)

Teknik özellikler

Image Sensor 1/3" Progressive Scan CMOS
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Lens Type Fixed focal lens, 4 and 6 mm optional
Focal Length & FOV 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° 6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57°
Iris Type Fixed
Aperture F1.6
Lens Mount M12
DORI 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m 6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
Supplement Light Type IR,White Light
IR Wavelength 850 nm
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
H.265 Type Main Profile
H.264 Type Baseline Profile,Main Profile,High Profile
Video Bit Rate 32 Kbps to 8 Mbps
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio Sampling Rate 8 kHz/16 kHz
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Client iVMS-4200,Hik-Connect
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Wide Dynamic Range (WDR) 120 dB
Privacy Mask 4 programmable polygon privacy masks
SNR ≥ 52 dB
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes
Reset Key -F: Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
Material Metal & Plastic
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimension 83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Package Dimension 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
With Package Weight Approx. 635 g (1.4 lb.)
Language English, Ukrainian
Weight Approx. 580 g (1.3 lb.)
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
Protection IP67: IEC 60529-2013
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Dokümanlar

Data Sheet - 4 MP Smart Hybrid Light Fixed Bullet Network Camera Quick Start Guide - 4 MP Smart Hybrid Light Fixed Bullet Network Camera User Manual - 4 MP Smart Hybrid Light Fixed Bullet Network Camera
