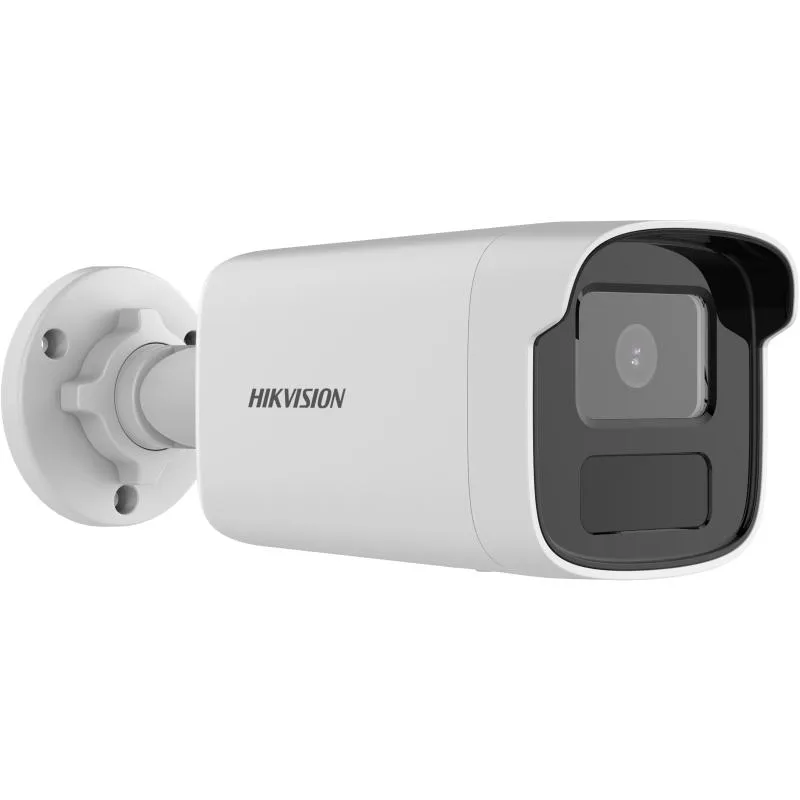

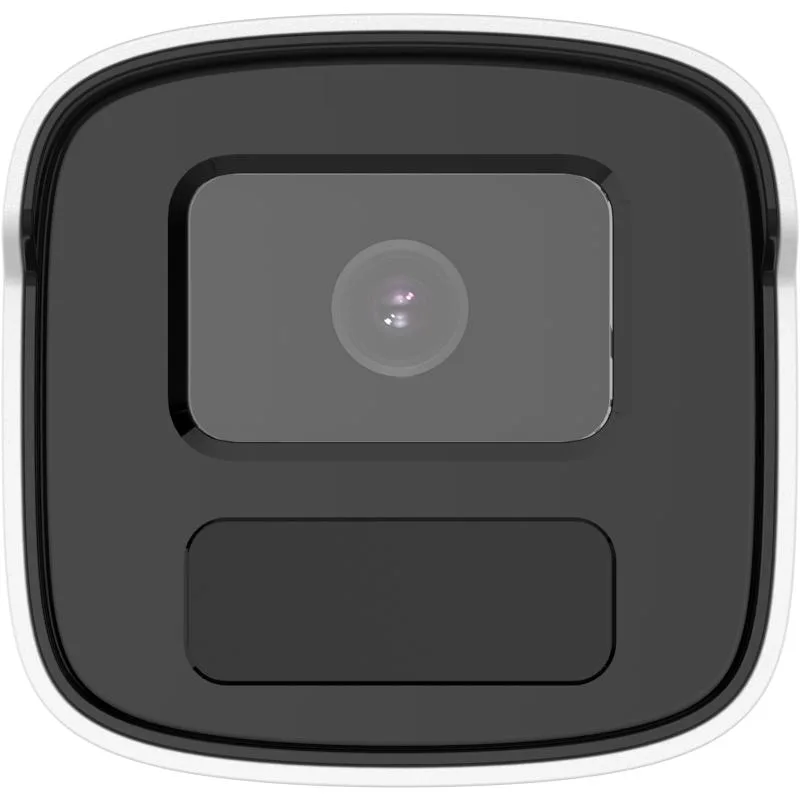

Hikvision DS-2CD1T83G0-I(UF) - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2CD1T83G0-I(UF) - Bullet IP kamera
Hikvision

Hikvision DS-2CD1T83G0-I(UF) - Bullet IP kamera

Model kodu
DS-2CD1T83G0-I(UF)
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 8 MP resolution. Clear imaging against strong back light due to 120 dB WDR technology. Efficient H.265+ compression technology. Water and dustresistant (IP67). Easy installation with Power over Ethernet (PoE) technology. -IUF: Built-in microphone for real-time audio security. -IUF: Support on-board storage up to 256 GB (SD card slot)

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination 4 mm: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR 6 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens Type Fixed focal lens, 4 and 6 mm optional
Focal Length & FOV 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° 6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62°
Lens Mount M12
Iris Type Fixed
Aperture 4 mm, F2.0 6 mm, F1.6
DORI 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m 6 mm, D: 169 m, O: 67 m, R: 34 m, I: 17 m
Supplement Light Type IR
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio Type -IUF: Mono sound
Environment Noise Filtering -IUF: Yes
Audio Sampling Rate -IUF: 8 kHz/16 kHz
Audio Compression -IUF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate -IUF: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S), ISAPI, SDK, -UF: Open Network Video Interface (Profile G)
Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser.
Privacy Mask 4 regions of privacy mask
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -IUF: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone -IUF: Yes
Reset Key -IUF: Yes
Basic Event Motion detection , video tampering alarm, exception
Linkage Notify surveillance center, trigger recording, trigger capture,-UF: upload to memory card
Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5 W
Material Metal & Plastic
Dimension 83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2"× 8.1")
Package Dimension 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight -I: Approx. 400 g (0.9 lb.) -IUF: Approx. 415 g (0.9 lb.)
With Package Weight -I: Approx. 619 g (1.4 lb.) -IUF: Approx. 634 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, password reset via e-mail
EMC FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
Safety UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
Environment CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)

Dokümanlar

Data Sheet - 4K Fixed Bullet Network Camera Quick Start Guide - 4K Fixed Bullet Network Camera User Manual - 4K Fixed Bullet Network Camera FAQ - 4K Fixed Bullet Network Camera Network Camera-V5.7.26 Release Note-E8 - 4K Fixed Bullet Network Camera
