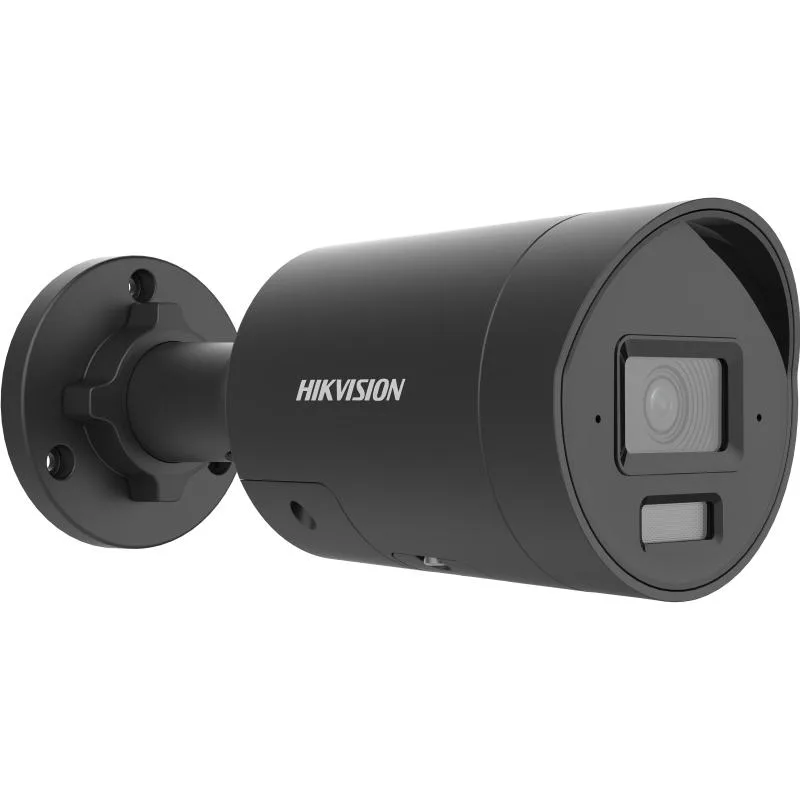

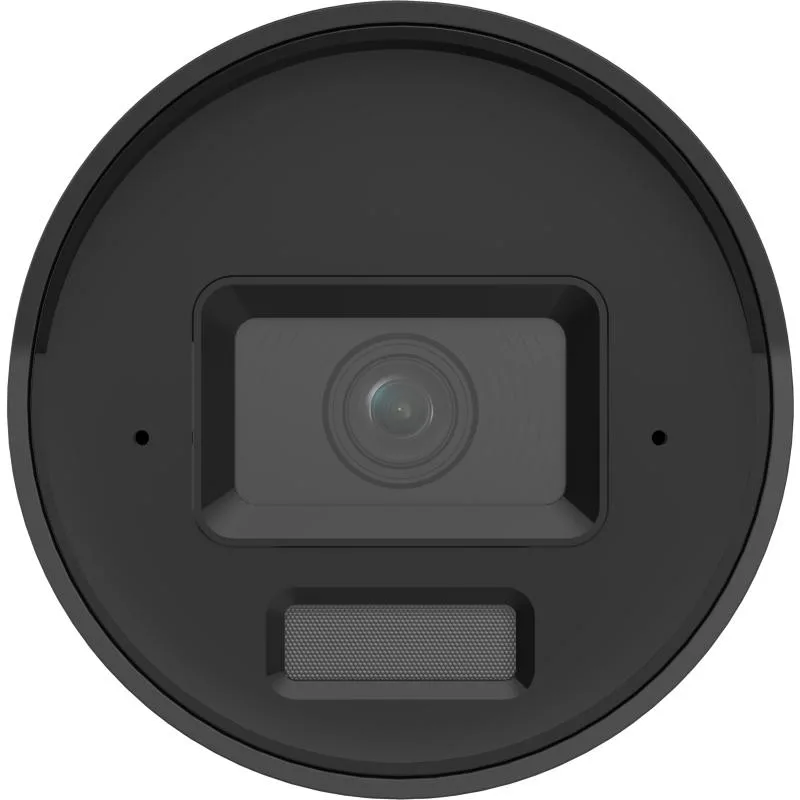

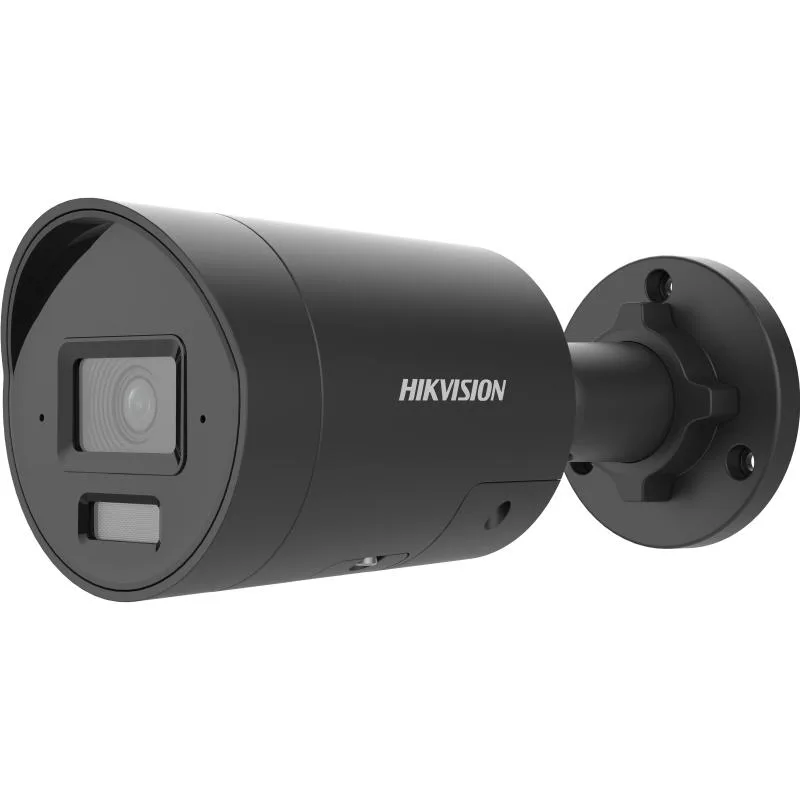

Hikvision DS-2CD2086G2H-I2U/S(L)(RB) - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2CD2086G2H-I2U/S(L)(RB) - Bullet IP kamera
Hikvision

Hikvision DS-2CD2086G2H-I2U/S(L)(RB) - Bullet IP kamera

Model kodu
DS-2CD2086G2H-I2U/S(L)(RB)
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 8 MP resolution. Clear imaging against strong back light due to 120 dB WDR technology. Efficient H.265+ compression technology. Focus on human and vehicle classification based on deep learning. Active strobe light and audio alarm to warn intruders off. Provide real-time security via built-in two-way audio. Support on-board storage up to 512 GB (SD card slot). Water and dust resistant (IP67)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 130° 4 mm, horizontal FOV 90°, vertical FOV 47°, diagonal FOV 111°
Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth of Field 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
Lens Type Fixed focal lens, 2.8 and 4 mm optional
DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR,Defog
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes, 2 built-in microphones
Built-in Speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Reset Key Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Package Dimension 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Material Metal
Dimension Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")
Power 12 VDC ± 25%, 1.25 A, max. 15 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Weight Approx. 515 g (1.1 lb.)
With Package Weight Approx. 845 g (1.9 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Flashing Light /SRB model: Red and Blue Light /SL model: White Light
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Dokümanlar

Data Sheet - 8MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera Quick Start Guide - 8MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera User Manual - 8MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
