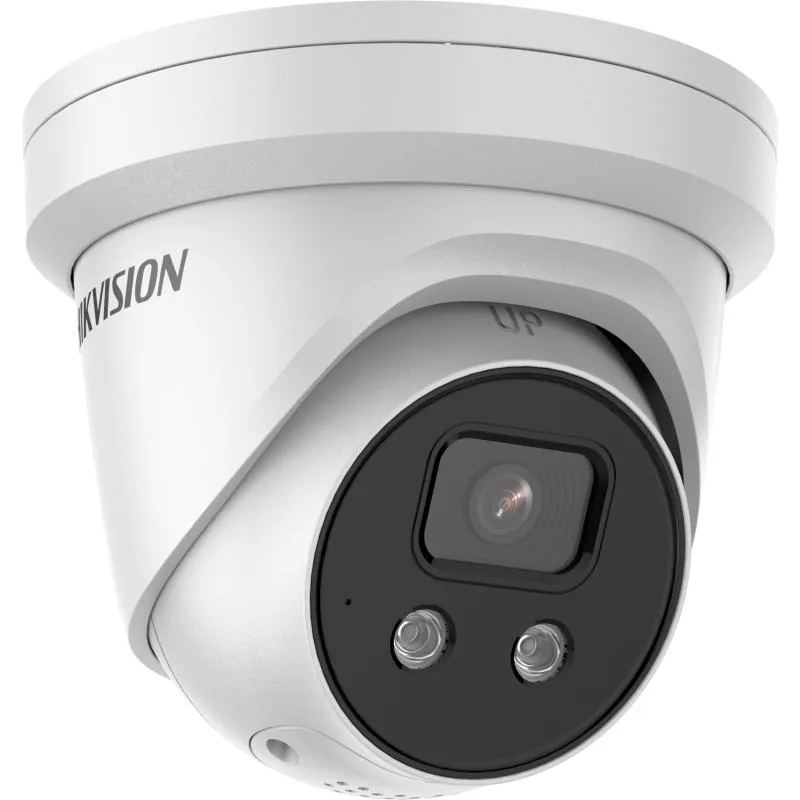

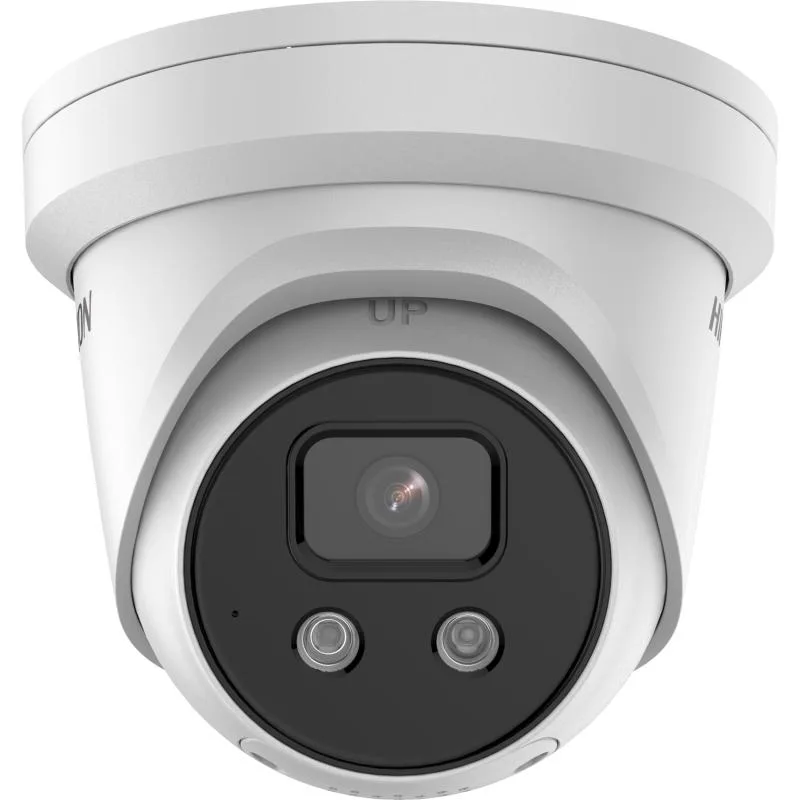

Hikvision DS-2CD2386G2-ISU/SL - Dome IP kamera
Hikvision

Hikvision DS-2CD2386G2-ISU/SL - Dome IP kamera

Model kodu
DS-2CD2386G2-ISU/SL
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 8 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. Clear imaging against strong back light due to 120 dB true WDR technology. Efficient H.265+ compression technology. Focus on human and vehicle targets classification based on deep learning. Active strobe light and audio alarm to warn intruders off. Provide real-time security via built-in two-way audio. Water and dust resistant (IP67)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Max. Resolution 3840 × 2160
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type Fixed
Focal Length & FOV 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
Aperture F1.6
Lens Mount M12
DORI 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
Supplement Light Type IR
IR Range Up to 30 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Visual Alarm Yes
Supplement Light Range Up to 30 m
Max. Resolution 3840 × 2160
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Target Cropping Yes
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
SNR ≥ 52 dB
Target Cropping Yes
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Wide Dynamic Range (WDR) 120 dB
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone
Built-in Microphone Yes
Built-in Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification Scene change detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
Face Capture Yes
Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification
Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software Reset Yes
Firmware Version V5.5.112
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3

Dokümanlar

Data Sheet - 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera Quick Start Guide - 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera User Manual - 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera FAQ - 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera Network Camera-V5.5.820 Release Note-G3 - 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
