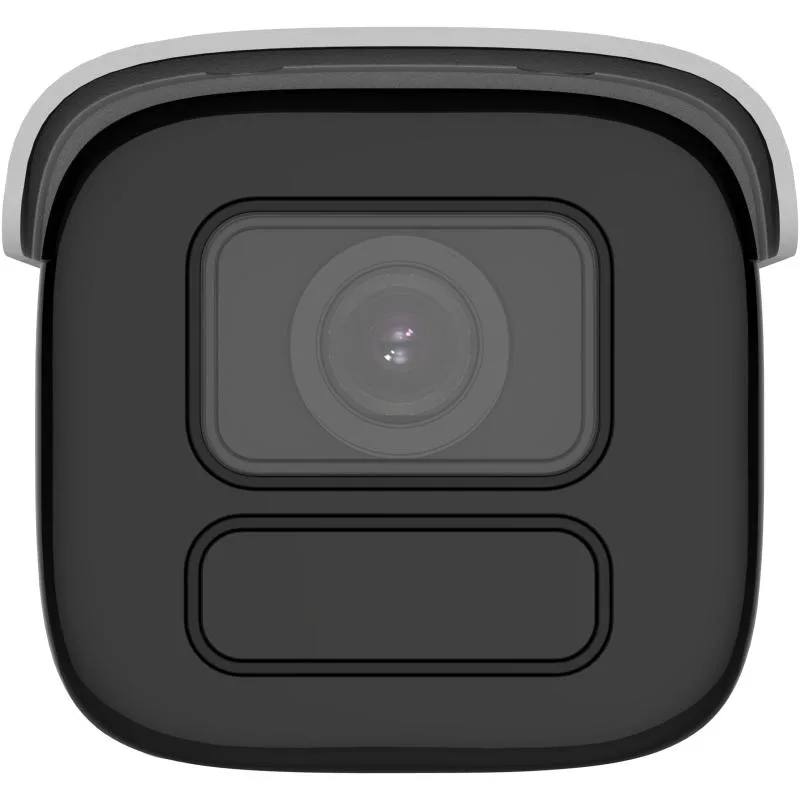

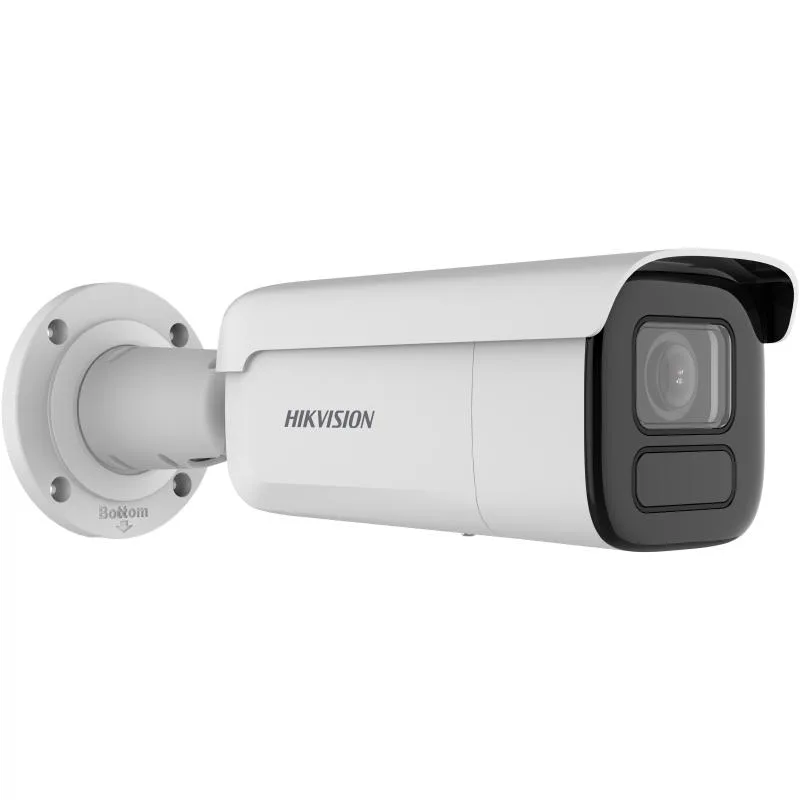

Hikvision DS-2CD2686G2T-IZSY - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2CD2686G2T-IZSY - Bullet IP kamera
Hikvision

Hikvision DS-2CD2686G2T-IZSY - Bullet IP kamera

Model kodu
DS-2CD2686G2T-IZSY
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 8 MP resolution. Motorized varifocal lens for easy installation and monitoring. Excellent low-light performance via powered-by-DarkFighter technology. Efficient H.265+ compression technology. Clear imaging against strong back light due to 120 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning. Audio and alarm interface available. Water and dust resistant (IP67) and vandal proof (IK10). Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Day & Night IR cut filter
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Aperture F1.4
Lens Mount Ø14
Iris Type Fixed
DORI 2.8 to 12 mm: Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
IR Wavelength 850 nm
Supplement Light Range Up to 60 m
Smart Supplement Light Yes
Supplement Light Type IR
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Privacy Mask 4 programmable polygon privacy masks
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
Reset Key Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning
Face Capture Yes
Power 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
Material Metal
Dimension 105 mm × 105 mm × 297.9 mm (4.1" × 4.1" × 11.7")
Package Dimension 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight Approx. 1410 g (3.1 lb.)
With Package Weight Approx. 2050 g (4.5 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter,privacy mask
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013;IK10: IEC 62262:2002
Anti-Corrosion Protection NEMA 4X (NEMA 250-2018)

Dokümanlar

Data Sheet - 8 MP AcuSense Anti-Corrosion Varifocal Bullet Network Camera Quick Start Guide - 8 MP AcuSense Anti-Corrosion Varifocal Bullet Network Camera User Manual - 8 MP AcuSense Anti-Corrosion Varifocal Bullet Network Camera
