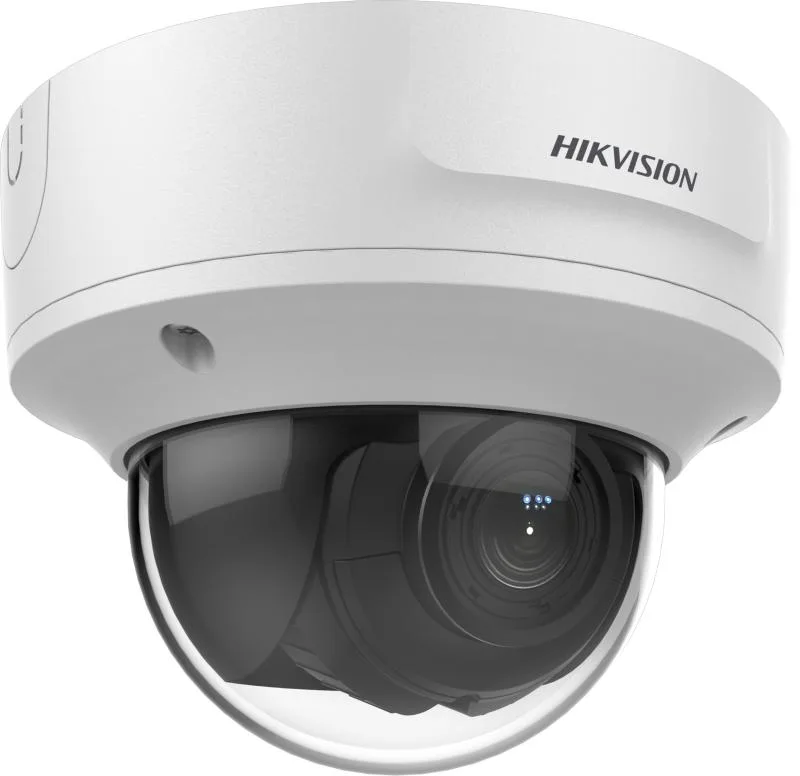

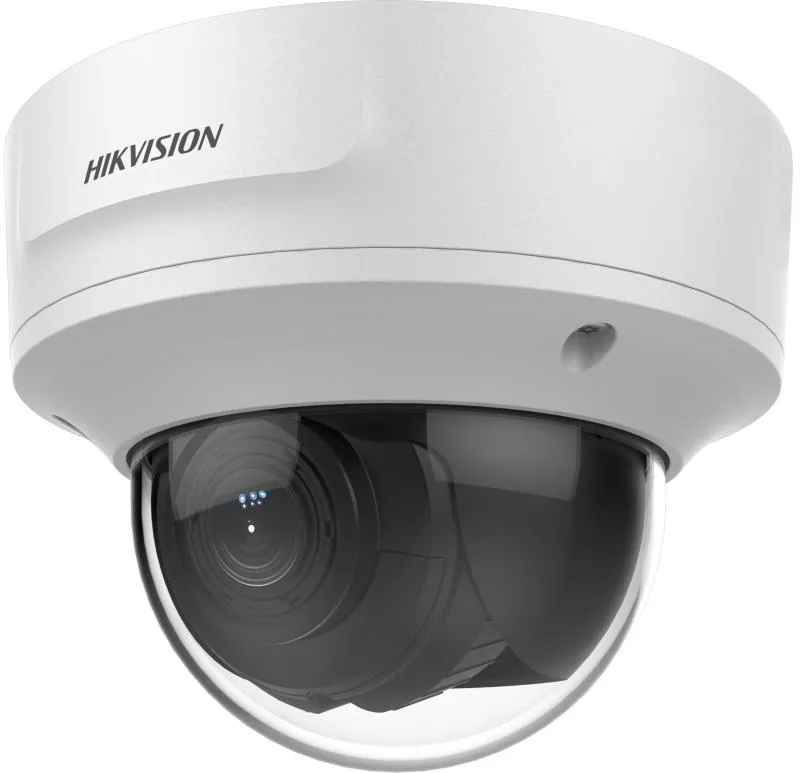

Hikvision DS-2CD2721G0-I(Z)(S) - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CD2721G0-I(Z)(S) - Dome IP kamera
Hikvision

Hikvision DS-2CD2721G0-I(Z)(S) - Dome IP kamera

Model kodu
DS-2CD2721G0-I(Z)(S)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Efficient H.265+ compression technology. Clear imaging against strong back light due to 120 dB true WDR technology. -Z: motorized varifocal lens for easy installation and monitoring. -S: audio and alarm interface available. Water and dust resistant (IP67) and vandal proof (IK10). Robust structure design with full metal materials

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
Lens Type Varifocal Lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm: horizontal FOV 98° to 38°, vertical FOV 52° to 21°, diagonal FOV 115° to 43°
Lens Mount Ø14
Iris Type Fixed
Aperture F1.6
Supplement Light Range Up to 40 m
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360 ) 60 Hz: 30 fps (640 × 480, 640 × 360 )
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate -S: 8 kHz/16 kHz
Environment Noise Filtering -S: Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
API Open Network Video Interface, ISAPI
Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Alarm -S: 1 input,1 output, (max. 12 VDC, 30 mA)
Reset Key Yes
Basic Event Motion detection, video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection
Linkage -S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, audible warning, trigger alarm output
Power 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.21 A to 0.33 A, max. 12 W
Material Metal
Dimension Ø153 .3 mm × 111.6 mm (6" × 4.4 ")
Package Dimension 239 mm × 169 mm × 160 mm (9.4" × 6.7" × 6.3")
Weight Approx. 880 g (1.9 lb.)
With Package Weight Approx. 1300 g (2.9 lb.)
Storage Conditions -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
EMC FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 6, 2016; KC: KN 32: 2015, KN 35: 2015
Safety UL: UL 60950-1; CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; BIS: IS 13252(Part 1):2010+A1:2013+A2:2015
Environment CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013; IK10: IEC 62262:2002

Dokümanlar

Quick Start Guide - 2 MP WDR Varifocal Dome Network Camera User Manual - 2 MP WDR Varifocal Dome Network Camera FAQ - 2 MP WDR Varifocal Dome Network Camera Network Camera-V5.7.26 Release Note-E8 - 2 MP WDR Varifocal Dome Network Camera
