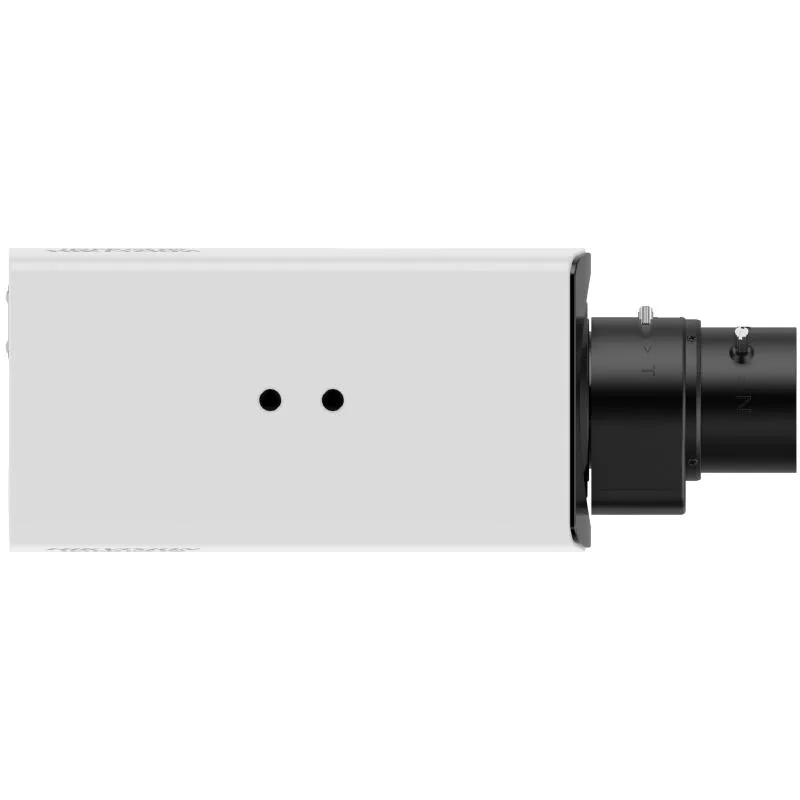

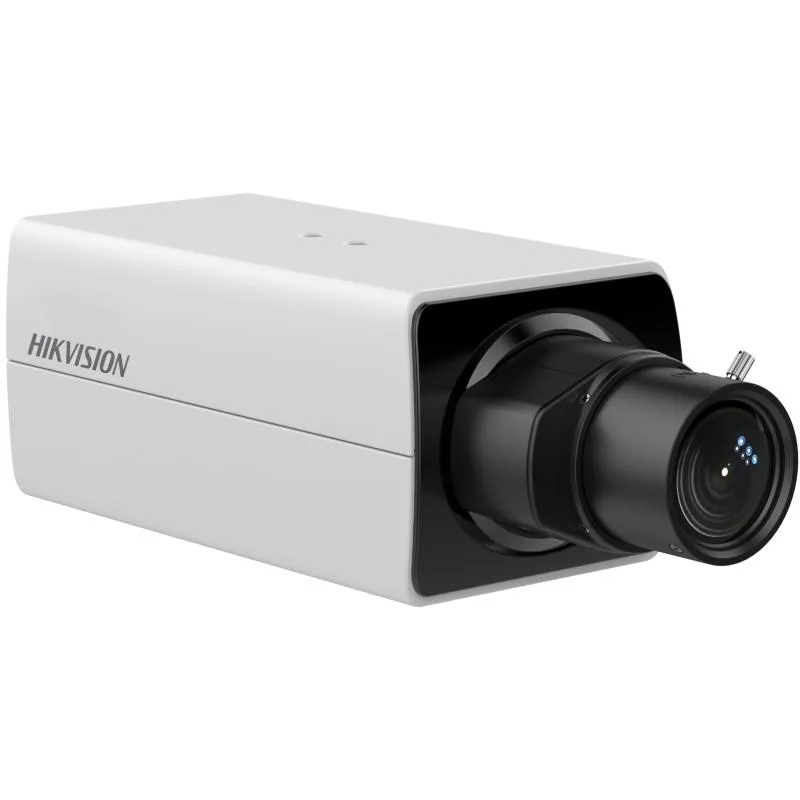

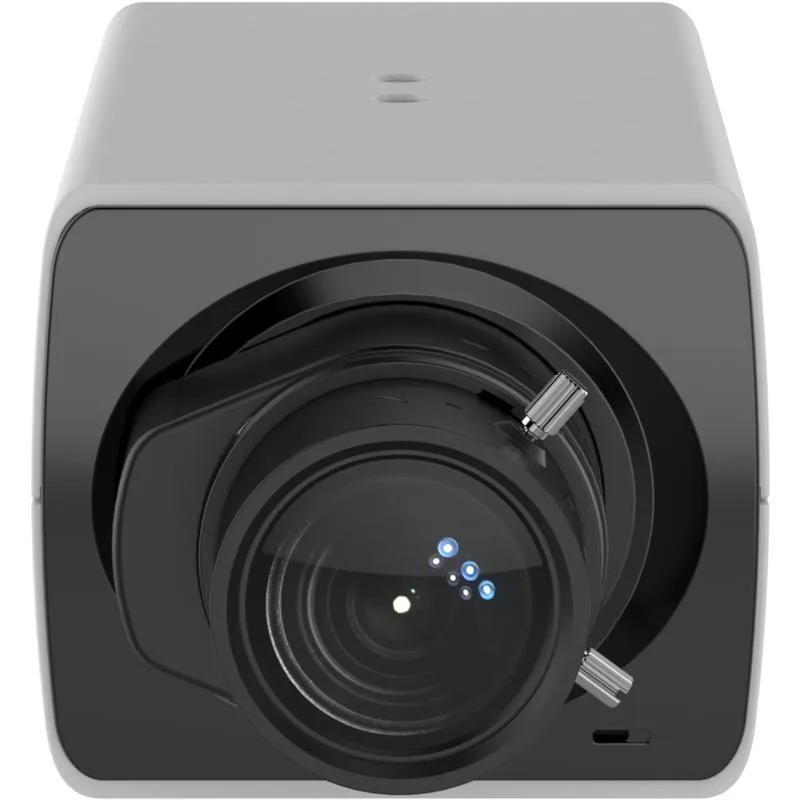

Hikvision DS-2CD2821G0

Name: Hikvision DS-2CD2821G0
Brand: Hikvision

Markaya göre filtrele

1st Player A4 Tech ABB Absen Acer Aero Cool Ajax Amd Aoc APart Audio Argox Artes Aruba Aselsan AselsanNET Astor Şarj ASUS Atlas Turnike Aukey Aztech Bawcon Bebird Benq Berqnet Bitdefender Bitfenix Biwin Bluetti Bory Bosch Brother Bticino BULLWARK CamBox CAME Canon Cas Cenova Codegen Colop Commax Crucial Cube Dahua Dark Datalogic Dayline Dayzip Decon Deep Cool Dell Digitus Dji Dlink DSC DSC Alarm EATON Endikal Epson Eşarj Eset Esonic Everest Excel EZVIZ FAAC Fanvil Finder Flaxes Flexsolar Foem Formrack Fortigate Fragile Frisby FSP Fujitron Gameon Gigabyte Gigaset Global Glorious Godex GVD H3C Hawk Hcs HI-LEVEL High power Hikvision HiLook Hochiki Honeywell HP HPRT Huawei Hytech Imou Inca Inform INNO Intel Inter-M Ip-Com Jabra JETVİEW Kamera Kutusu Karel Kaspersky Kingston Kioxia Kodpos Kokoni Kyocera Lande Leaderhub Legrand Lenovo Lexar Leyard Lg LifeSmart Logitech M3 Mobile Mack Makelsan Mavili Metcom Microsoft Msi Multitek NarBulut Netelsan NETGEAR Nets Neutron Newland Nexans Nice Notifier Oem Omada Oring Osram Özak Palmx Panasonic Paradox Perkon Philips Plm Pny Point Mobil Powermaster Proxsen QNAP Qport Rampage Rapoo Raydın Razer Redragon Reyee Ruijie Ruijie-Reyee Samsonite Samsung Sandisk Schneider Electric Seagate Sensei Sewoo Slink Spenta Spider Sunlux Suprema Tazga Technopc Teknim Teknosec Teletek Tenda Tescom Tiandy Tiwox TOA Toshiba TP-Link Tplink-Vigi Tsc Ttec Turkcell Twinmos TX Ubiquiti Ugreen Unilumin Uniwiz UNV Uptech Uranium Vacos Vento Vestel vGUARD Viewsonic WD Weko Westa Western Digital Wisetech Xbright Xerox Xprinter Yealink Yıldırım Zalman Zebra ZES ZKTeco ZYXEL

Hikvision

Hikvision DS-2CD2821G0

Model kodu: DS-2CD2821G0
Sistem: Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Efficient H.265+ compression technology. Clear imaging against strong back light due to 120 dB true WDR technology. One built-in microphone. 24 VAC ± 20%, 0.52 A, max. 7.5 W. Audio and alarm interface available

Teknik özellikler

Image Sensor	1/2.7" Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time	1/3 s to 1/100, 000 s
Day & Night	IR cut filter
Lens Mount	C/CS mount
Iris Type	DC drive
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Region of Interest (ROI)	1 fixed region for main stream
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Network Storage	NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
Image Enhancement	BLC, HLC, 3D DNR
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone	Yes
Audio	1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium.
Alarm	1 input,1 output (max. 12 VDC, 30 mA)
RS-485	1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key	Yes
Power Output	12 VDC, 100 mA
Basic Event	Motion detection, video tampering alarm, exception
Smart Event	Line crossing detection, intrusion detection
Linkage	Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture
Power	12 VDC ± 25%, 0.63 A, max. 7.5 W, two-core terminal block, reverse polarity protection; 24 VAC ± 20%, 0.52 A, max. 7.5 W, two-core terminal block PoE: 802.3af, 36 V to 57 V, 0.24 A to 0.15 A, max. 8.5 W
Dimension	68 mm × 56.3 mm × 132.3 mm (2.7" × 2.2" × 5.2")
Package Dimension	216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight	Approx. 435 g (1.0 lb.)
With Package Weight	Approx. 623 g (1.4 lb.)
Storage Conditions	-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Language	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Anti-flicker, heartbeat, mirror, password protection, one-key reset, privacy mask, watermark, IP address filter
EMC	FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
Safety	UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
Environment	CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
