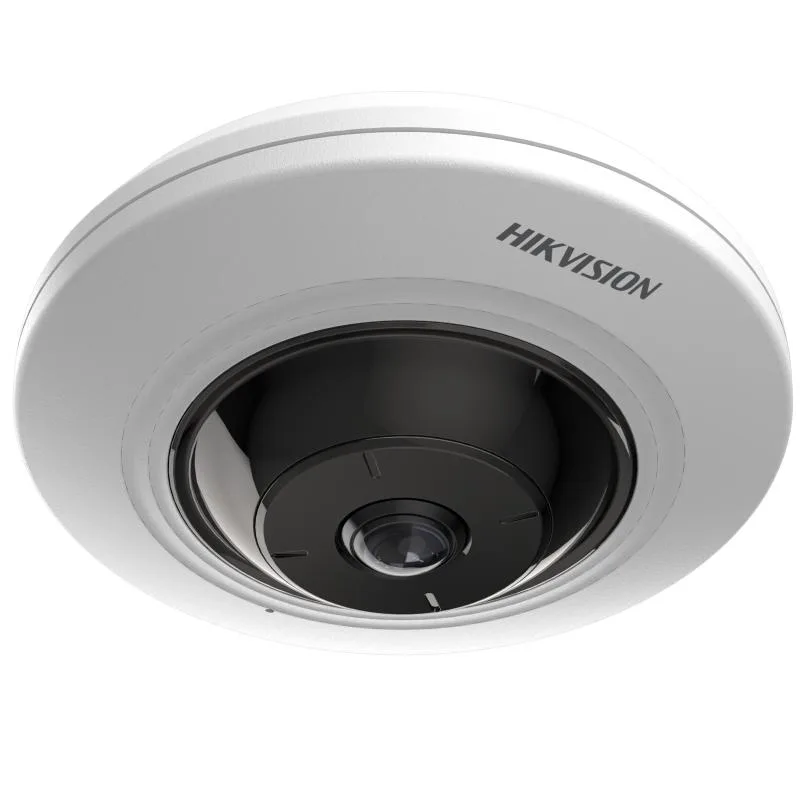

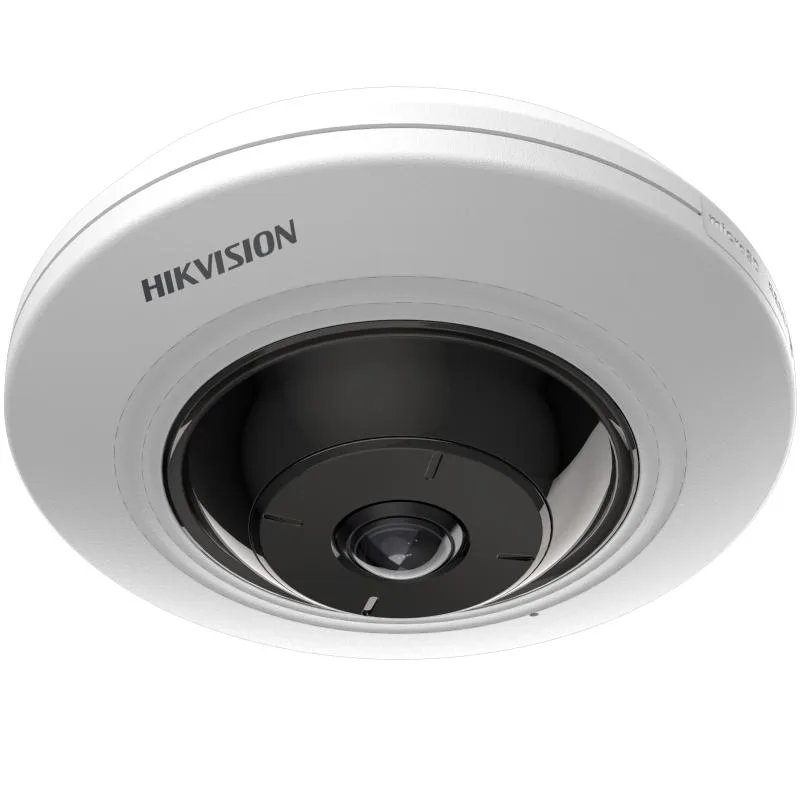

Hikvision DS-2CD2955G0-IS(U) - Panoramik/fisheye IP kamera

Markaya göre filtrele

Hikvision DS-2CD2955G0-IS(U) - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2CD2955G0-IS(U) - Panoramik/fisheye IP kamera

Model kodu
DS-2CD2955G0-IS(U)
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 5 MP resolution. Efficient H.265+ compression technology. 180° fisheye view. Clear imaging against strong back light due to 120 dB true WDR technology. Audio and alarm interface available

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1920
Min. Illumination Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Lens Type Fixed focal lens, 1.05 mm
Focal Length & FOV 1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
Focus Fixed
Lens Mount M12
Iris Type Fixed
Aperture F2.25
Depth of Field 0.1 m to ∞
DORI D: 21 m, O: 8 m, R: 4 m, I: 2 m
Supplement Light Type IR
Supplement Light Range Up to 8 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960） 60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
Sub-Stream 50 Hz: 25 fps (640 × 480) 60 Hz: 30 fps (640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Mount Type Support wall/table/ceiling mounting
Display Mode Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
Audio Type Mono sound
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect,Hik-Central
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Web Browser Plug-in required live view: IE 10+, Local service: Chrome 57.0+, Firefox 52.0+
Network Storage NAS (NFS, SMB/CIFS)
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,3D DNR
Wide Dynamic Range (WDR) 120 dB
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone -U: Yes
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 A)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Basic Event Motion detection, video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material ADC12
Dimension Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6")
Package Dimension 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Weight Approx. 320 g (0.7 lb.)
With Package Weight Approx. 500 g (1.1 lb.)
Language 13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
Storage Conditions -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat,anti-banding,mirror,password protection
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment CE-RoHS: 2011/65/EU

Dokümanlar

Data Sheet - 5MP Fixed Fisheye Network Camera User Manual - 5MP Fixed Fisheye Network Camera
