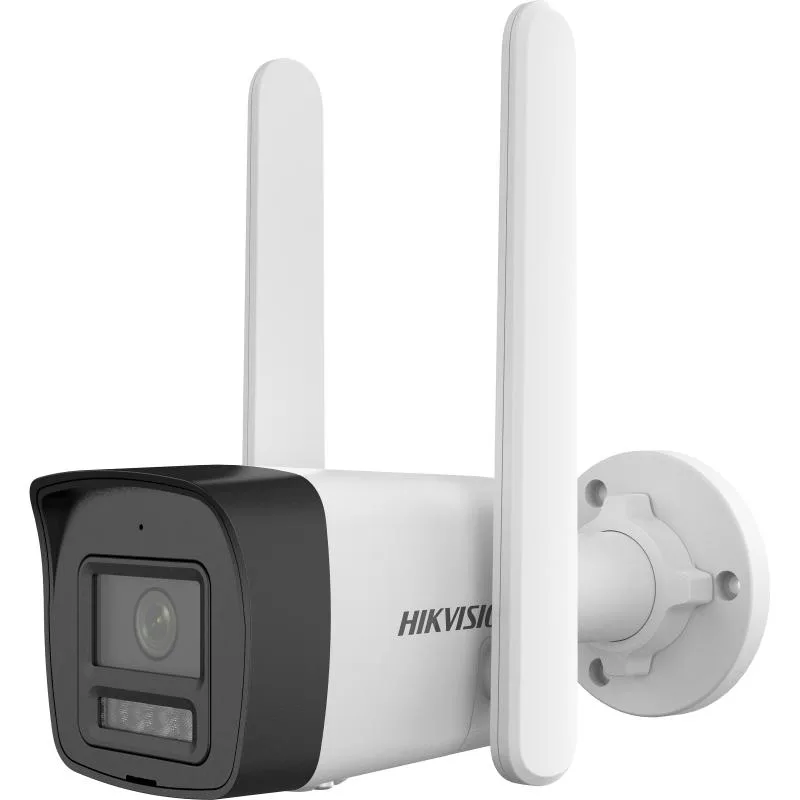

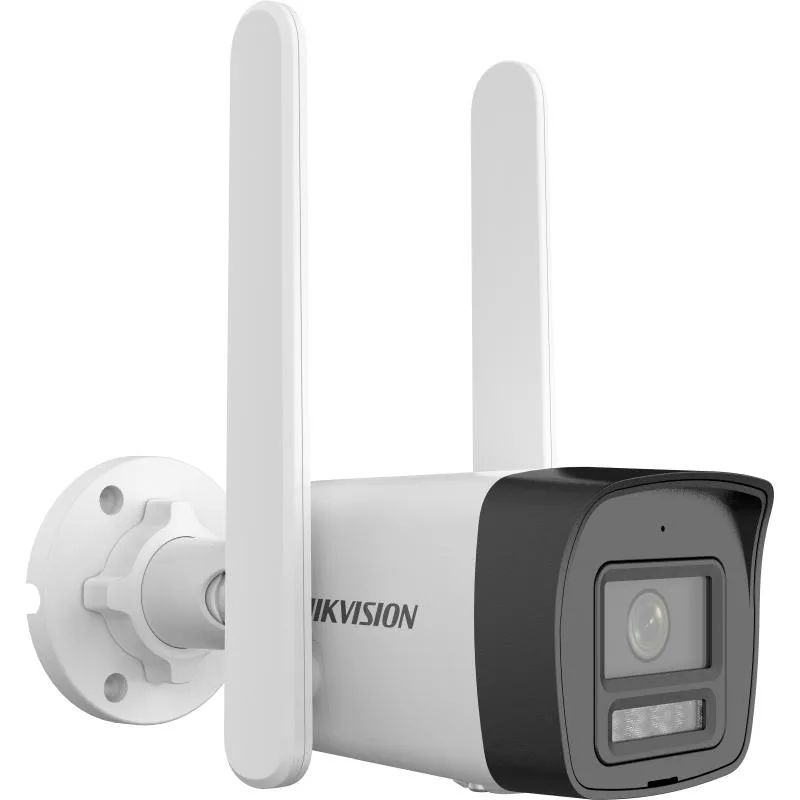

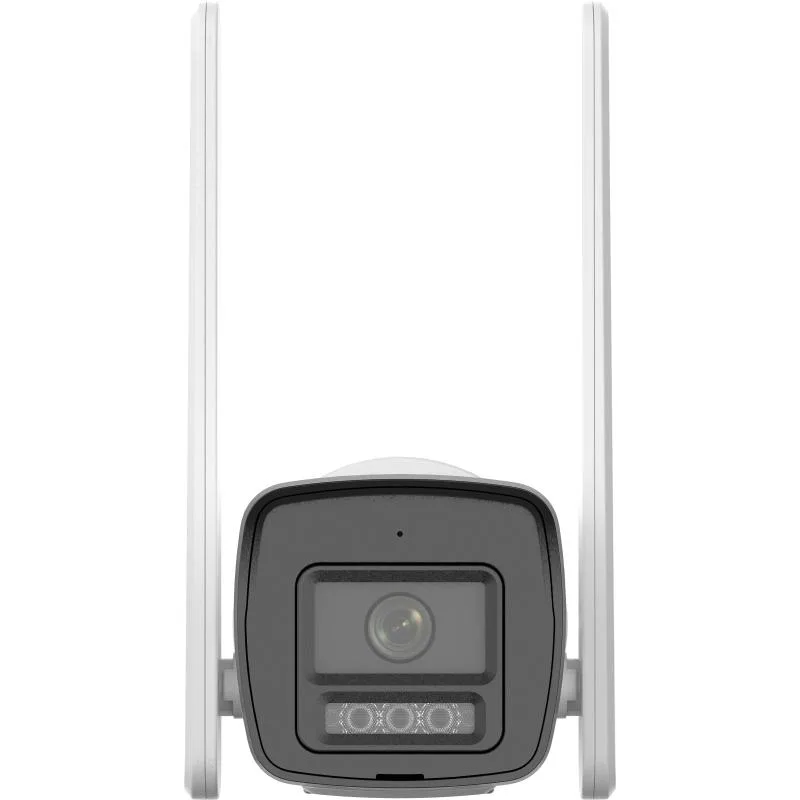

Hikvision DS-2CD3041G2-LIDUF/4G/SL - Bullet IP kamera
Hikvision

Hikvision DS-2CD3041G2-LIDUF/4G/SL - Bullet IP kamera

Model kodu
DS-2CD3041G2-LIDUF/4G/SL
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Efficient H.265 compression technology to save bandwidth and storage. Smart Hybrid Light: advanced technology up to 30 meters. 3D DNR technology delivers clean and sharp images. Built-in microphone for real-time audio security. Support 4G communication. Water and dust resistant (IP67)

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 111.8°, vertical FOV 60.9°, diagonal FOV 135° 4 mm, horizontal FOV 88.7°, vertical FOV 48.3°, diagonal FOV 105.4° 6 mm, horizontal FOV 60.6°, vertical FOV 31.4°, diagonal FOV 72.5°
Lens Mount M12
Iris Type Fixed
Aperture F2.2
DORI 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m 6 mm, D: 109 m, O: 43 m, R: 21 m, I: 10 m
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 20 fps (768 x 432) 60 Hz: 20 fps (768 x 432)
Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Security Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+
Standard LTE-TDD,LTE-FDD
Frequency DS-2CD3041G2-LIDUF/4G/SL*/IN: LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 DS-2CD3041G2-LIDUF/4G/SL*/LA: LTE-FDD:B2/3/4/5/7/8/28/66 DS-2CD3041G2-LIDUF/4G/SL*: LTE-FDD:B1/3/5/7/8/20/28
Uplink and Downlink Data Rate Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
SIM Card Type Nano SIM
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Privacy Mask 4 programmable polygon privacy masks
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes,1 built-in microphone
Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset Key Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event Line crossing detection, intrusion detection
Linkage Upload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
Power 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection
Material Plastic
Dimension 238.5 mm × 97.6 mm × 67.4 mm (9.39" × 3.84" × 2.65")
Package Dimension 300 mm × 95 mm × 75 mm (11.8" × 3.7" × 3.0")
Weight Approx. 380 g (0.83 lb.)
With Package Weight Approx. 654 g (1.44 lb.)
Storage Conditions -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,anti-banding,mirror,password reset via email,pixel counter,password protection
Flashing Light Yes,White Light
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Dokümanlar

Data Sheet - 4 MP Smart Hybrid Light Motion 2.0 Fixed 4G Bullet Network Camera Quick Start Guide - 4 MP Smart Hybrid Light Motion 2.0 Fixed 4G Bullet Network Camera User Manual - 4 MP Smart Hybrid Light Motion 2.0 Fixed 4G Bullet Network Camera Installation Guide - 4 MP Smart Hybrid Light Motion 2.0 Fixed 4G Bullet Network Camera Network Camera-V5.8.35 Release Note-E9 E10 GL - 4 MP Smart Hybrid Light Motion 2.0 Fixed 4G Bullet Network Camera
