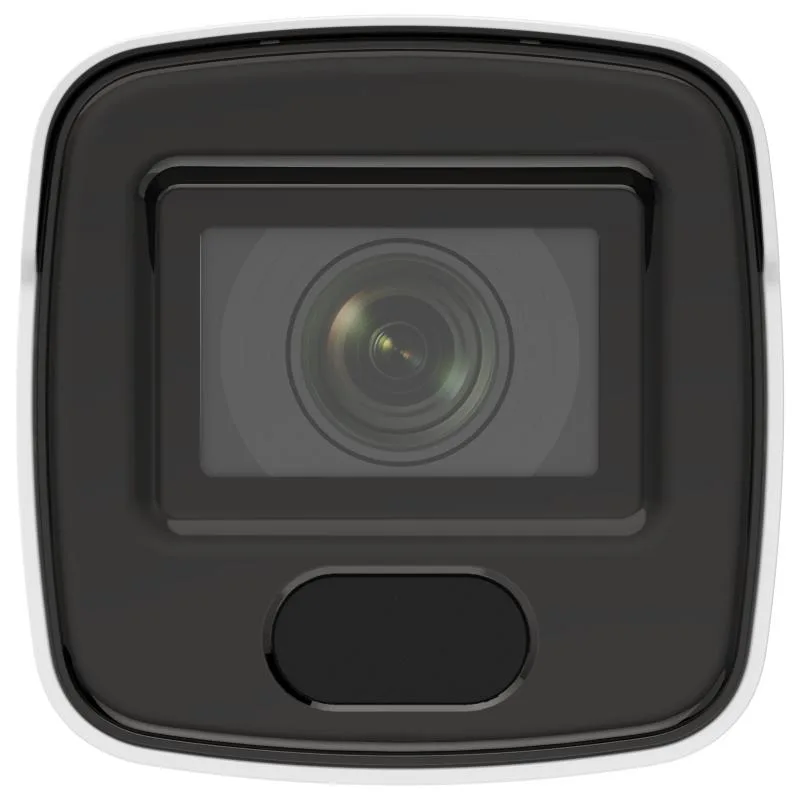

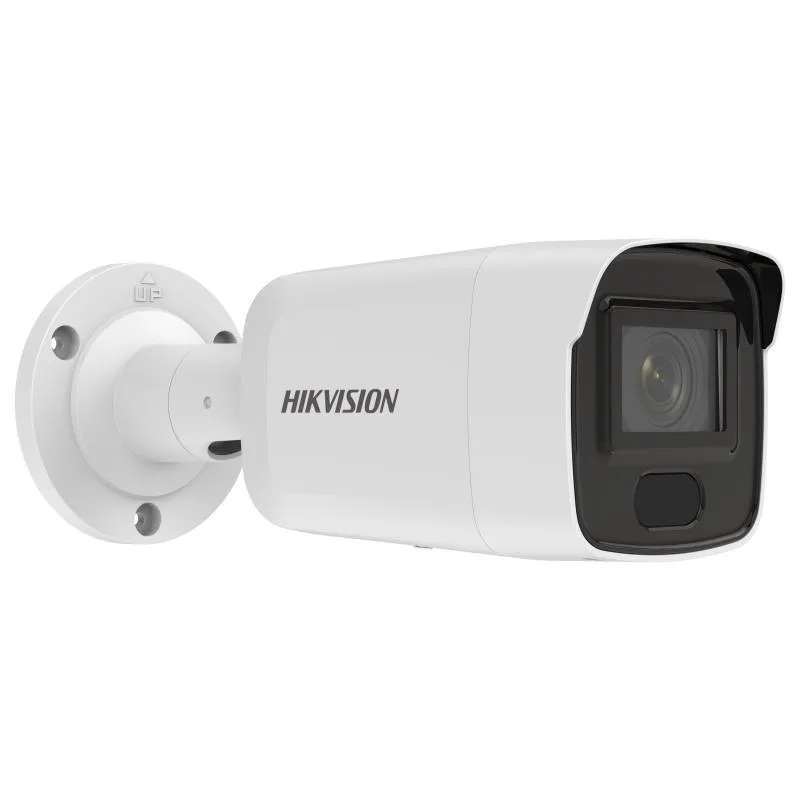

Hikvision DS-2CD3056G2-IS - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2CD3056G2-IS - Bullet IP kamera
Hikvision

Hikvision DS-2CD3056G2-IS - Bullet IP kamera

Model kodu
DS-2CD3056G2-IS
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications. Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources. High quality imaging with 5 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. Efficient H.265+ compression technology. Clear imaging against strong back light due to 120 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning. Advanced streaming technology that enables smooth live view and data self-correcting in poor network. Water and dust resistant (IP67)

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2592 × 1944
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 71°, diagonal FOV 131° 4 mm, horizontal FOV 79°, vertical FOV 58°, diagonal FOV 104° 6 mm, horizontal FOV 51°, vertical FOV 37°, diagonal FOV 66°
Lens Mount M12
Iris Type Fixed
Aperture F1.4
DORI 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Open Resources Memory: 60 MB, Smart RAM: 400 MB, eMMC: 2 GB
Computing Power 1.5 TOPS
Open Capability HEOP 2.0 OpendevSDK
Deep Learning Structure Caffe,PyTorch,TensorFlow
Programming Language C,C++
Main Stream 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
Power 12 VDC ± 25%, 0.6 A, max. 7 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, max. 8.5 W
Material Aluminum alloy body
Dimension 78.8 mm × 78.6 mm × 215.2 mm (3.1" × 3.1" × 8.5")
Package Dimension 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Weight Approx. 725 g (1.6 lb.)
With Package Weight Approx. 1110 g (2.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
EMC FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Dokümanlar

Data Sheet - 5 MP AcuSense Fixed Mini Bullet Network Camera Quick Start Guide - 5 MP AcuSense Fixed Mini Bullet Network Camera User Manual - 5 MP AcuSense Fixed Mini Bullet Network Camera FAQ - 5 MP AcuSense Fixed Mini Bullet Network Camera Network Camera-V5.5.820 Release Note-G3 - 5 MP AcuSense Fixed Mini Bullet Network Camera
