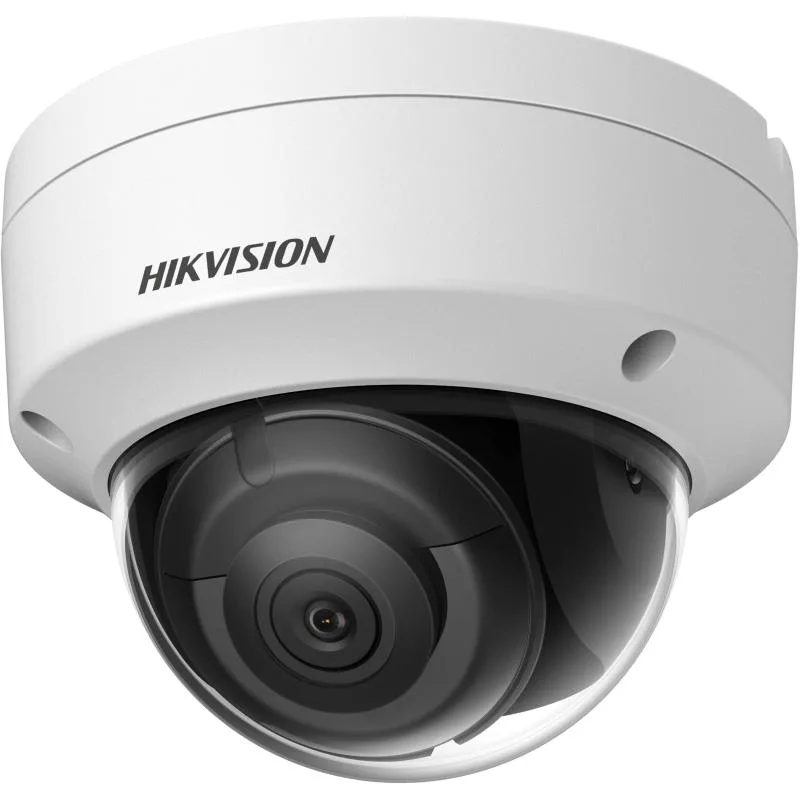

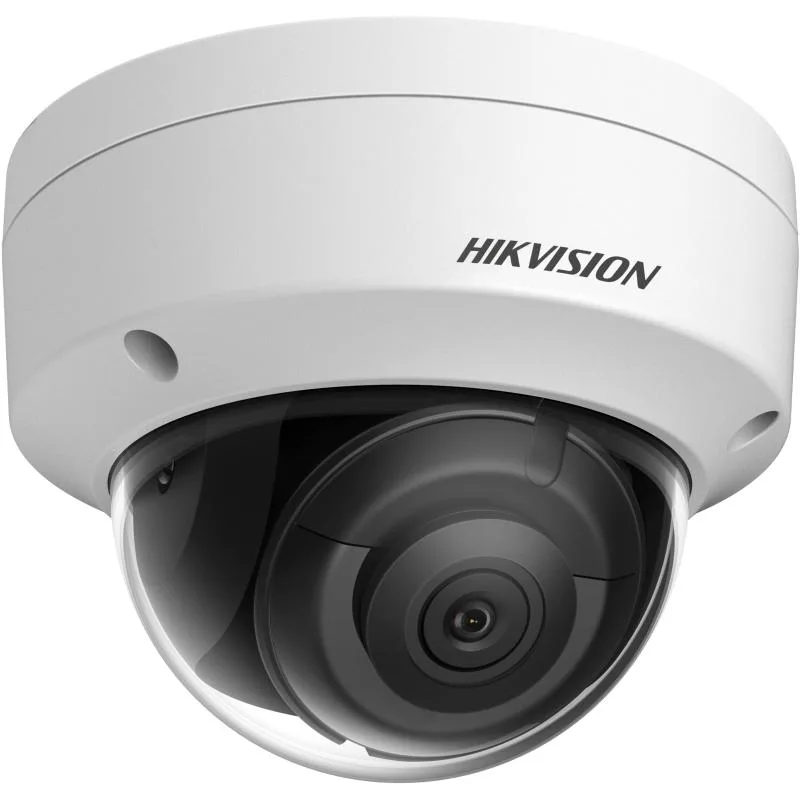

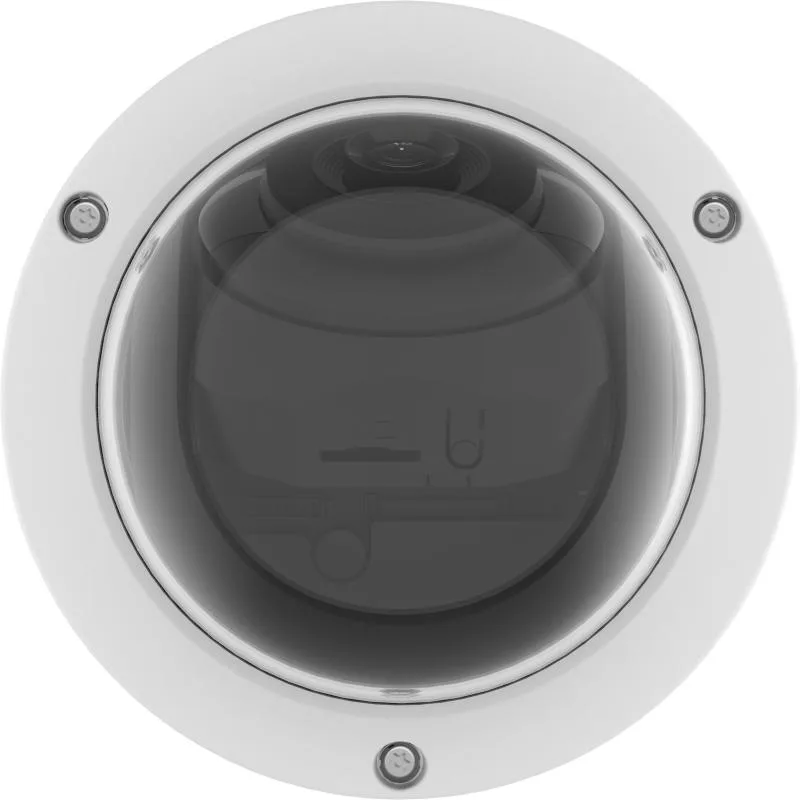

Hikvision DS-2CD3121G2-ISF - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CD3121G2-ISF - Dome IP kamera
Hikvision

Hikvision DS-2CD3121G2-ISF - Dome IP kamera

Model kodu
DS-2CD3121G2-ISF
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Efficient H.265+ compression technology to save bandwidth and storage. Clear imaging against strong back light due to 120dB WDR technology. 3D DNR technology delivers clean and sharp images. Easy installation with Power over Ethernet (PoE) technology. Water and dust resistant (IP67) and vandal proof (IK10). Support Human and Vehicle Detection

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133° 4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 109°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI 2.8 mm, D: 43 m, O: 17 m, R: 9 m, I: 5 m 4 mm, D: 53 m, O: 21 m, R: 11 m, I: 6 m
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 1 fps (640 × 360) 60 Hz: 1 fps (640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio Type -S: Mono sound
Environment Noise Filtering -S: Yes
Audio Sampling Rate -S: 8 kHz/16 kHz
Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate -S: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio -S: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, -S: 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key -F: Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture, trigger alarm output (-S)
Power 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Base: Metal, cover: Plastic
Dimension Ø110.8 mm × 84.7 mm (Ø4.4" × 3.3")
Package Dimension 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")
Weight Approx. 497 g (1.1 lb.)
With Package Weight Approx. 597 g (1.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email, pixel counter
EMC FCC: 47 CFR Part 15, Subpart B
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002

Dokümanlar

Data Sheet - 2MP Fixed Dome Network Camera Quick Start Guide - 2MP Fixed Dome Network Camera User Manual - 2MP Fixed Dome Network Camera
