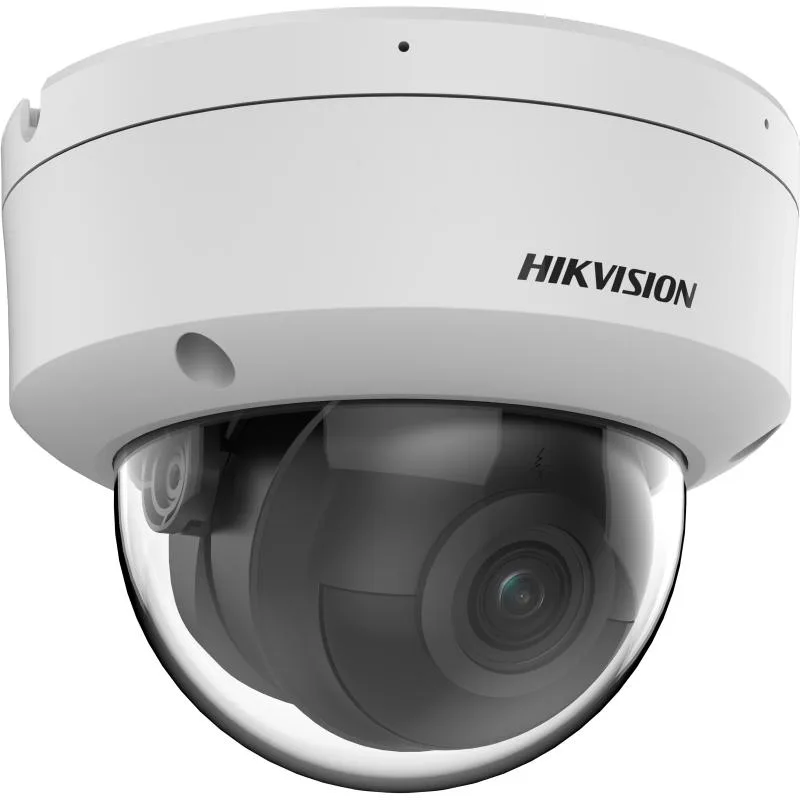

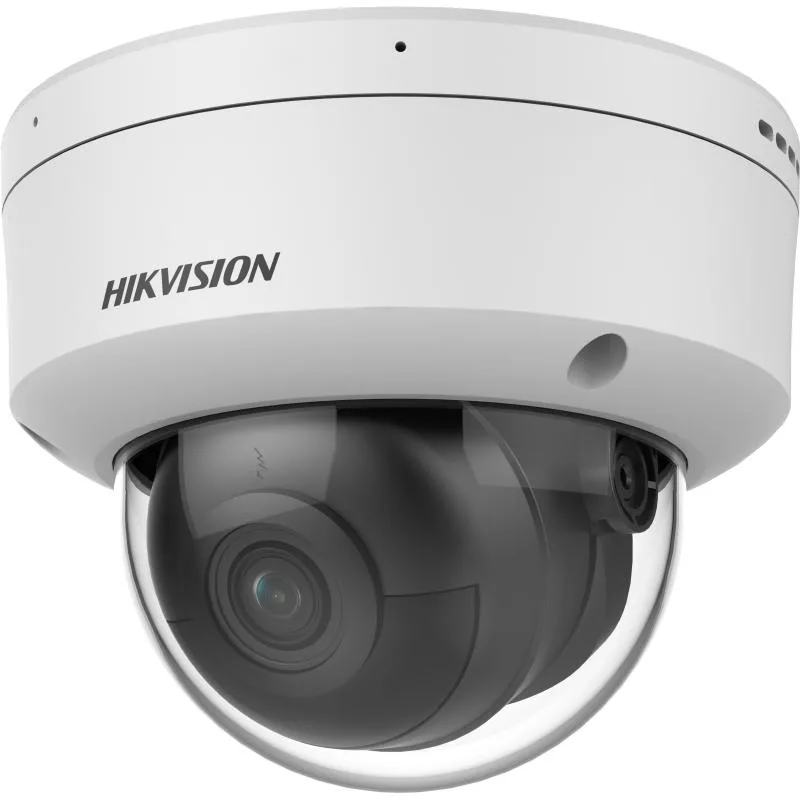

Hikvision DS-2CD3186G2-IS#MEA - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CD3186G2-IS#MEA - Dome IP kamera
Hikvision

Hikvision DS-2CD3186G2-IS#MEA - Dome IP kamera

Model kodu
DS-2CD3186G2-IS#MEA
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications. Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources. High quality imaging with 8 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. Efficient H.265+ compression technology. Clear imaging against strong back light due to 140 dB true WDR technology. Focus on human and vehicle target classification based on deep learning. Water and dust resistant (IP67) and vandal-resistant (IK10)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 108°, vertical FOV 53°, diagonal FOV 133° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 103° 6 mm, horizontal FOV 60°, vertical FOV 35°, diagonal FOV 68°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI 2.8 mm, D: 97 m, O: 38 m, R: 19 m, I: 9 m 4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m 6 mm, D: 140 m, O: 55 m, R: 28 m, I: 14 m
Supplement Light Range Up to 50 m
Supplement Light Type IR
Smart Supplement Light Yes
IR Wavelength 850 nm
Open Resources Memory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB
Computing Power 1.5 TOPS
Open Capability HEOP 2.0 OpendevSDK
Deep Learning Structure Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
Programming Language C,C++
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 1920 × 1080 25/30fps (when main stream is lower than 3840 x 2160)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Type Mono sound
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 140 dB
Image Enhancement BLC,HLC,3D DNR,Defog
SNR ≥ 52 dB
Image Stabilization EIS
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone -U: Yes
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Face Capture Yes
People Counting Yes
Heat Map Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
Metadata Intrusion detection,line crossing detection,region entrance detection,region exiting detection
Power 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
Material Base: Metal, cover: Metal
Dimension Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 500 g (1.1 lb.)
With Package Weight Approx. 700 g (1.54 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)

Dokümanlar

Data Sheet - 8 MP AcuSense Fixed Dome Network Camera Quick Start Guide - 8 MP AcuSense Fixed Dome Network Camera User Manual - 8 MP AcuSense Fixed Dome Network Camera
