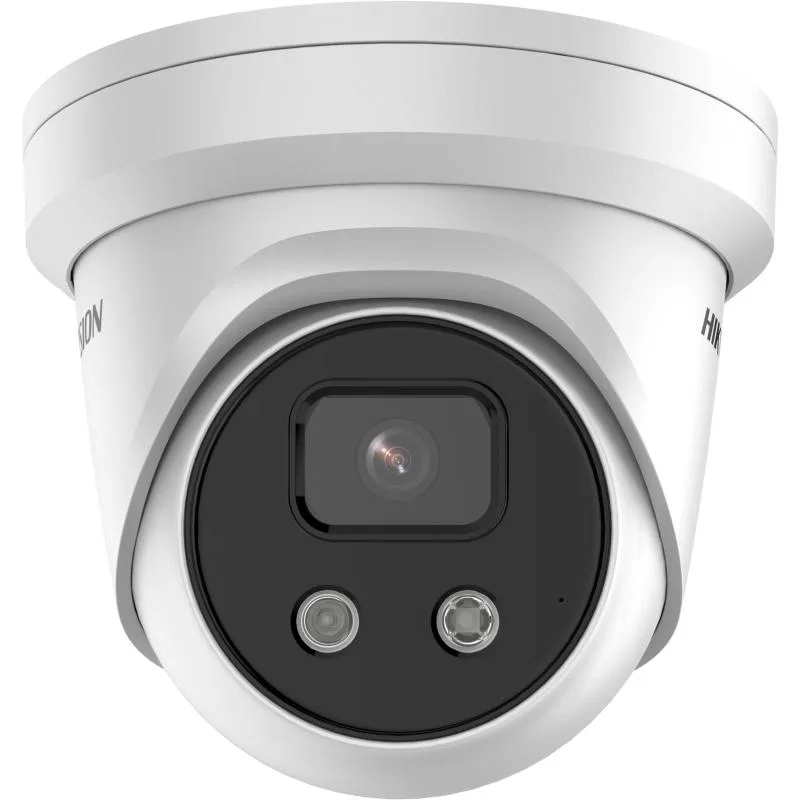

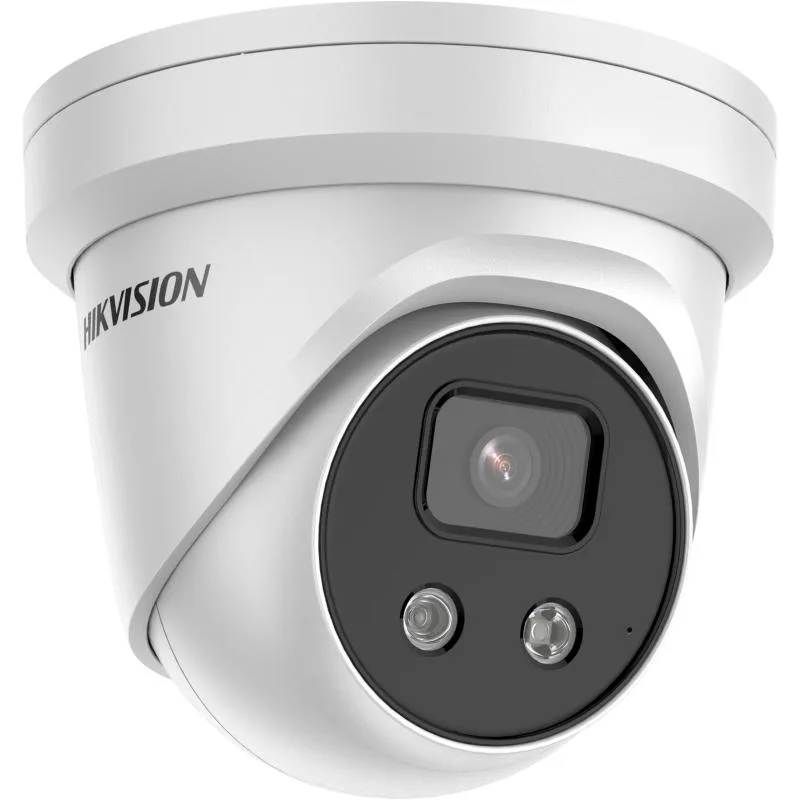

Hikvision DS-2CD3326G2-IS(U) - Dome IP kamera
Hikvision

Hikvision DS-2CD3326G2-IS(U) - Dome IP kamera

Model kodu
DS-2CD3326G2-IS(U)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. Efficient H.265+ compression technology. Clear imaging against strong back light due to 120 dB true WDR technology. False alarm reduction through human and vehicle target classification based on deep learning. Advanced streaming technology that enables smooth live view and data self-correcting in poor network. Water and dust resistant (IP67)

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129° 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102° 6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65°
Lens Mount M12
Iris Type Fixed
Aperture F1.4
DORI 2.8 mm: D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm: D: 53 m, O: 21 m, R: 10 m, I: 5 m 6 mm: D: 86 m, O: 34 m, R: 17 m, I: 8 m
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: up to 50 fps (1920 × 1080, 1280 × 720) 60 Hz: up to 60 fps (1920 × 1080, 1280 × 720) *High frame rate is supported under certain settings.
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 512 GB
Built-in Microphone Yes
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Unattended baggage detection, object removal detection, scene change detection, audio exception detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Face Capture Yes
Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Power 12 VDC ± 25%, 0.60 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.23 A to 0.14 A, max. 8.2 W
Dimension Ø138.3 mm × 126.3 mm (Ø5.4" × 5.0")
Package Dimension 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight Approx. 780 g (1.7 lb.)
With Package Weight Approx. 1065 g (2.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2006+A2: 2013, IEC 62368-1: 2014+A11: 2017); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (SANS IEC60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)

Dokümanlar

Data Sheet - 2 MP AcuSense Fixed Turret Network Camera Quick Start Guide - 2 MP AcuSense Fixed Turret Network Camera User Manual - 2 MP AcuSense Fixed Turret Network Camera Network Camera-V5.5.820 Release Note-G3 - 2 MP AcuSense Fixed Turret Network Camera
