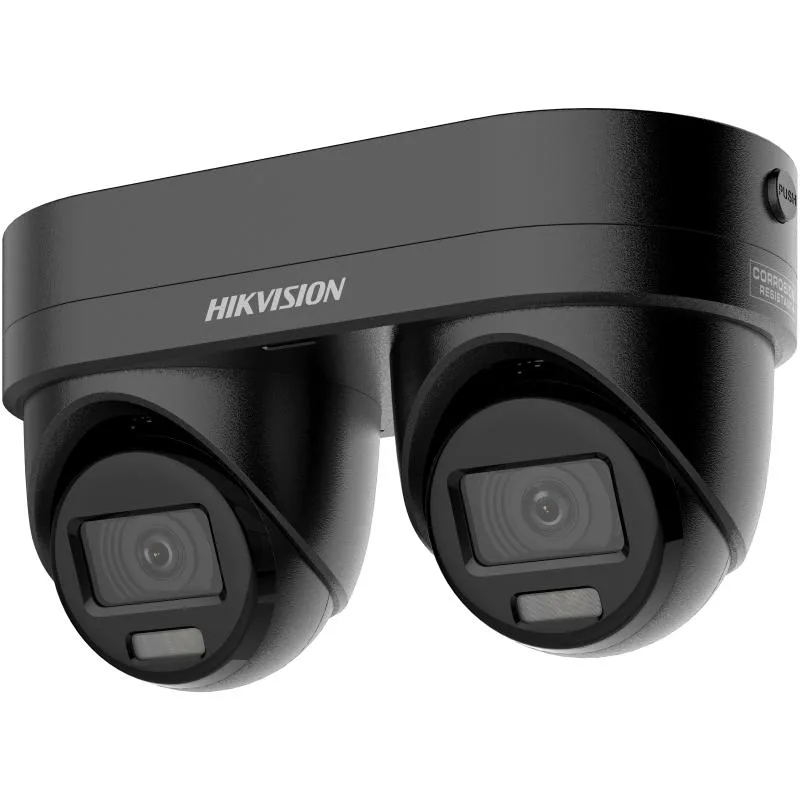

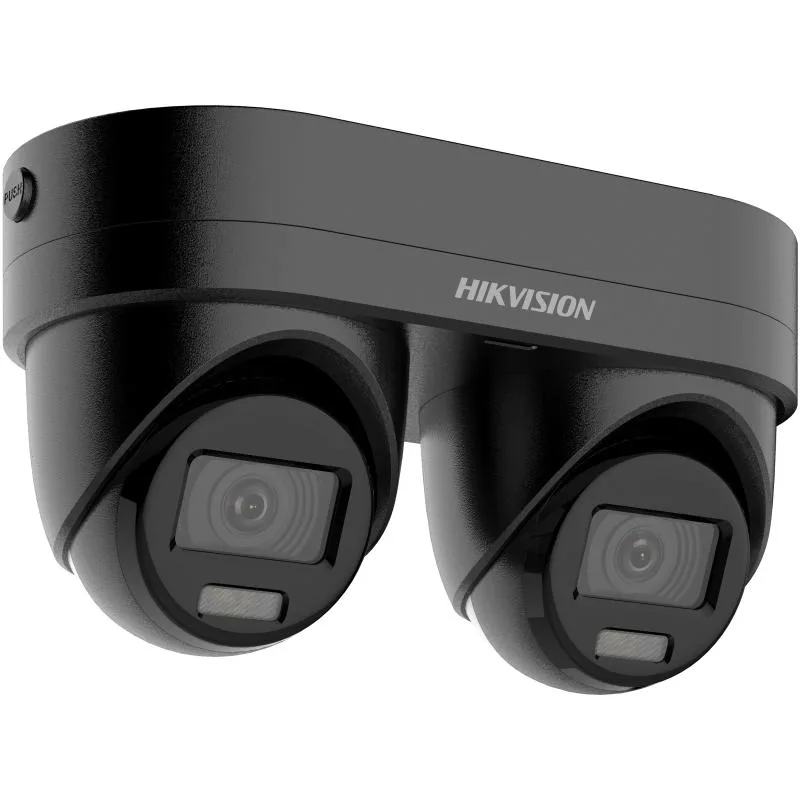

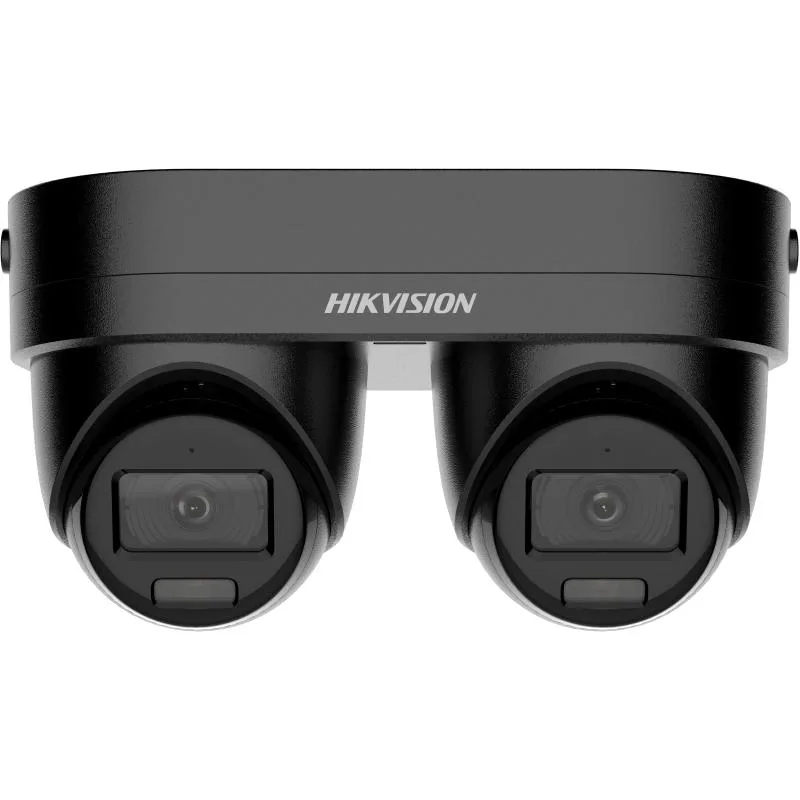

Hikvision DS-2CD3343G2/X2-LIZSUY/SL - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CD3343G2/X2-LIZSUY/SL - Dome IP kamera
Hikvision

Hikvision DS-2CD3343G2/X2-LIZSUY/SL - Dome IP kamera

Model kodu
DS-2CD3343G2/X2-LIZSUY/SL
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2 independent channels, 1 wiring, 1 IP. 2.8/4 mm in one camera, point-to-point zoom. High quality imaging with 4 MP resolution. AcuSense: Focus on person and vehicle classification based on deep learning. Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes. Crystal-clear audio with Arrayed Dual-Mic. Clear imaging against strong back light due to 120 dB true WDR technology. Anti-corrosion design (NEMA 4X), more reliable. Efficient H.265+ compression technology. Water and dust resistant (IP67). Active strobe light and audio alarm to warn intruders off

Teknik özellikler

Image Sensor Channel 1: 1/3" Progressive Scan CMOS, Channel 2: 1/3" Progressive Scan CMOS
Max. Resolution Channel 1: 2688 × 1520, Channel 2: 2688 × 1520
Min. Illumination Channel 1: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR, Channel 2: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night Channel 1: IR cut filter, Channel 2: IR cut filter
Angle Adjustment Channel 1: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°, Channel 2: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens Type Channel 1: Varifocal lens, motorized lens, 2.8 mm and 4 mm, Channel 2: Varifocal lens, motorized lens, 2.8 mm and 4 mm
Focal Length & FOV Channel 1: 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2° 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0° Channel 2: 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2° 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°
Lens Mount Ø14
Iris Type Fixed
Aperture F1.6
Depth of Field 2.8 mm: 1.2 m to ∞ 4 mm: 1.5 m to ∞
DORI Channel 1: 2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m Channel 2: 2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m
Supplement Light Type IR,White Light
Supplement Light Range IR: up to 40 m White Light: up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream Channel 1 & Channel 2: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream Channel 1 & Channel 2: 50 Hz: 25 fps (768 × 432,640 × 360) 60 Hz: 30 fps (768 × 432,640 × 360)
Third Stream Channel 1 & Channel 2: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream and sub-stream and third Stream
Target Cropping Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect,Hik-Central
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch Yes
Day/Night Switch Day,Night,Auto,Schedule
Image Settings Rotate mode
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR
Privacy Mask 8 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Built-in Speaker 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 110 dB.
Audio Built-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Power 12 VDC ± 25%, 1.42 A, max. 17 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Material Metal
Dimension 199.9 mm × 120.1 mm × 97.2 mm (7.87" × 4.73" × 3.83")
Package Dimension 305 mm × 162 mm × 165 mm (12.01" × 6.38" × 6.5")
Weight Approx. 1215 g (2.7 lb.)
With Package Weight Approx. 1582 g (3.5 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Flashing Light White Light
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Dokümanlar

Data Sheet - 4 MP Smart Hybrid Light Varifocal Turret Dual-Lens Network Camera Quick Start Guide - 4 MP Smart Hybrid Light Varifocal Turret Dual-Lens Network Camera User Manual - 4 MP Smart Hybrid Light Varifocal Turret Dual-Lens Network Camera Network Camera-V5.8.11_260326 Release_IPCE_D_H13 - 4 MP Smart Hybrid Light Varifocal Turret Dual-Lens Network Camera
