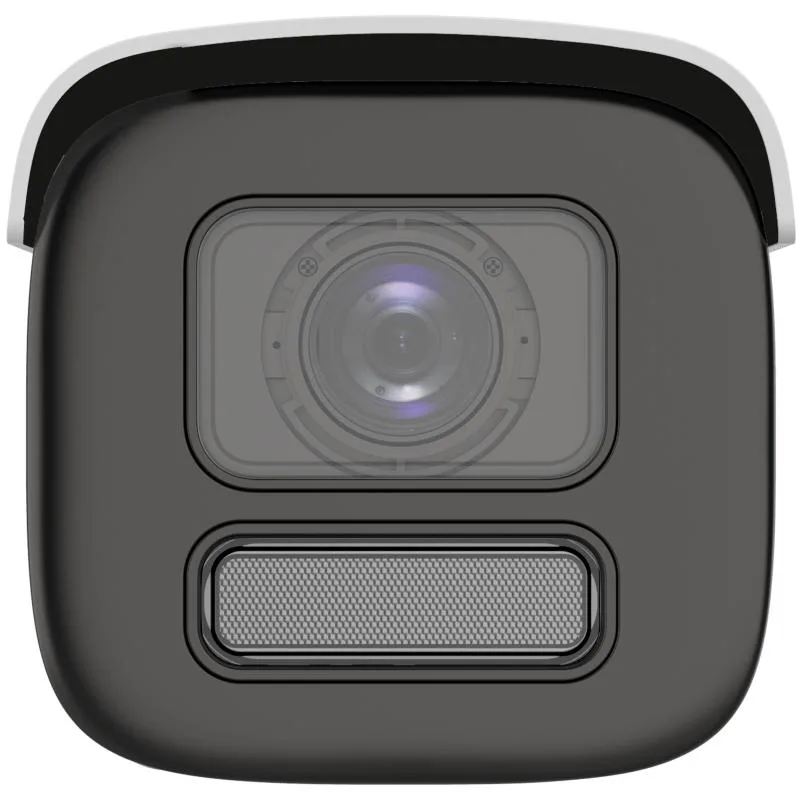

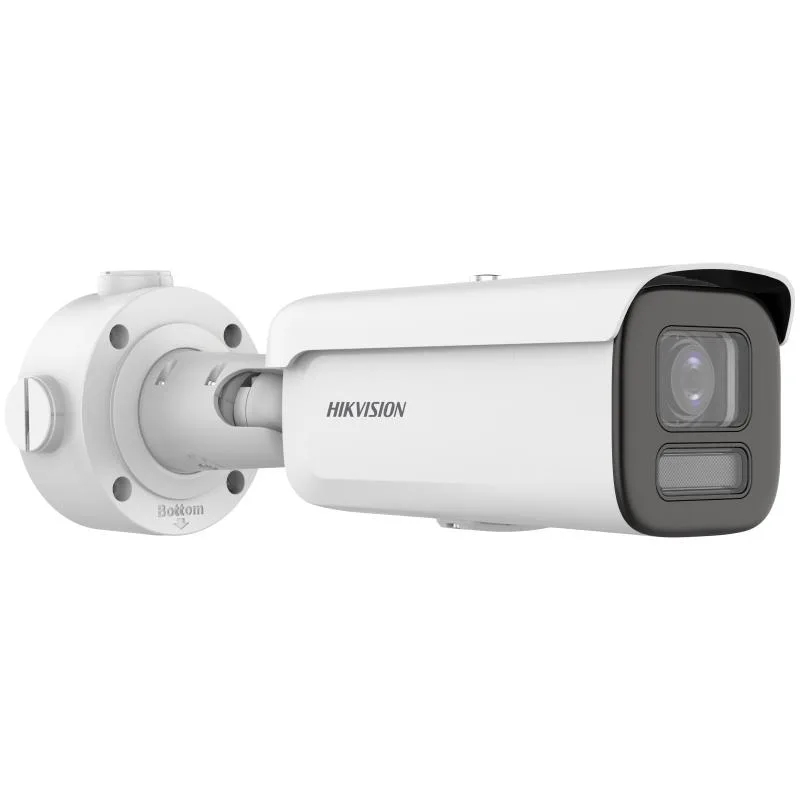

Hikvision DS-2CD3686G2HT-LIZS(Y) - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2CD3686G2HT-LIZS(Y) - Bullet IP kamera
Hikvision

Hikvision DS-2CD3686G2HT-LIZS(Y) - Bullet IP kamera

Model kodu
DS-2CD3686G2HT-LIZS(Y)
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 8 MP resolution. Efficient H.265+ compression technology. Motorized varifocal lens for easy installation and monitoring. Clear imaging against strong back light due to 130 dB WDR technology. Focus on human and vehicle classification based on deep learning. Smart Hybrid Light: advanced technology with long range. Water and dust resistant (IP67) and vandal resistant (IK10)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Lens Type Varifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV 2.7 to 13.5 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Lens Mount Integrated
Focus Auto,Semi-auto,Manual
Iris Type DC iris
Aperture F1.2
Depth of Field 1 m to ∞
DORI Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m
Supplement Light Type IR,White Light
Supplement Light Range Up to 60 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Open Resources Memory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB
Computing Power 1.5 TOPS
Open Capability HEOP 2.0 OpendevSDK
Deep Learning Structure Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Programming Language C,C++
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, *Third stream and fourth stream are supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 130 dB
Image Enhancement BLC,HLC,3D DNR,Defog
SNR ≥ 52 dB
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event Unattended baggage detection,object removal detection, scene change detection,audio exception detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning
Face Capture Yes
People Counting Yes
Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection, Support alarm triggered by specified target types (human and vehicle)
Power 12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Material Front cover: Metal, body: Metal, bracket: Metal
Dimension 334 mm × 97.9 mm × 95.7 mm (13.15" × 3.85" × 3.77")
Package Dimension 386 mm × 190 mm × 180 mm (15.20" × 7.48" × 7.09")
Weight Approx. 1085 g (2.39 lb.)
With Package Weight Approx. 1639 g (3.61 lb.)
General Function Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Dokümanlar

Data Sheet - 8 MP Smart hybrid light with Darkfighter S Motorized Varifocal Bullet Network Camera Quick Start Guide - 8 MP Smart hybrid light with Darkfighter S Motorized Varifocal Bullet Network Camera User Manual - 8 MP Smart hybrid light with Darkfighter S Motorized Varifocal Bullet Network Camera Network Camera-V5.8.2_SP1_260325 Release Note - 8 MP Smart hybrid light with Darkfighter S Motorized Varifocal Bullet Network Camera
