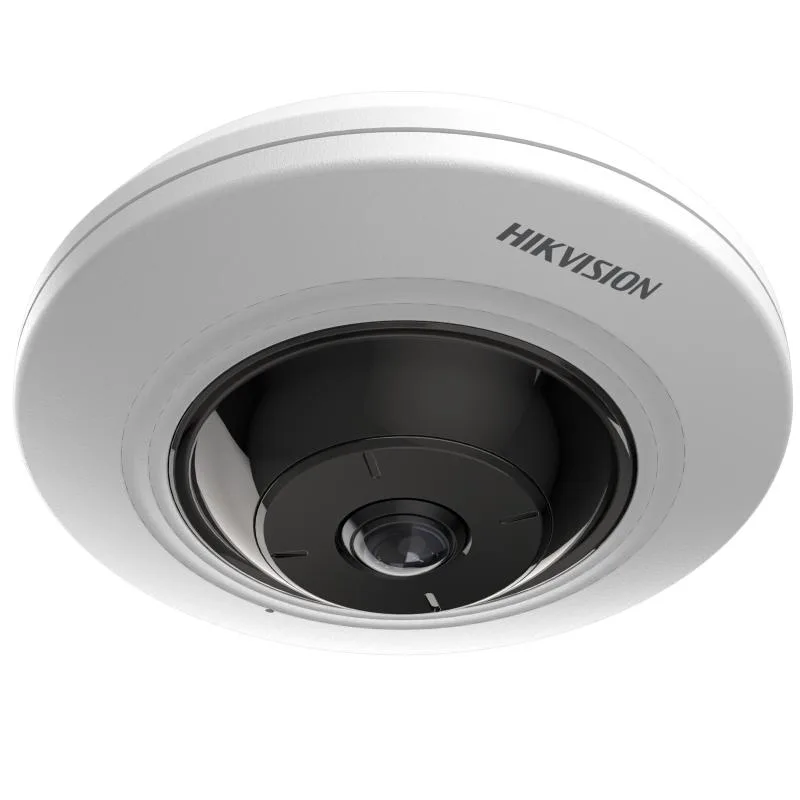

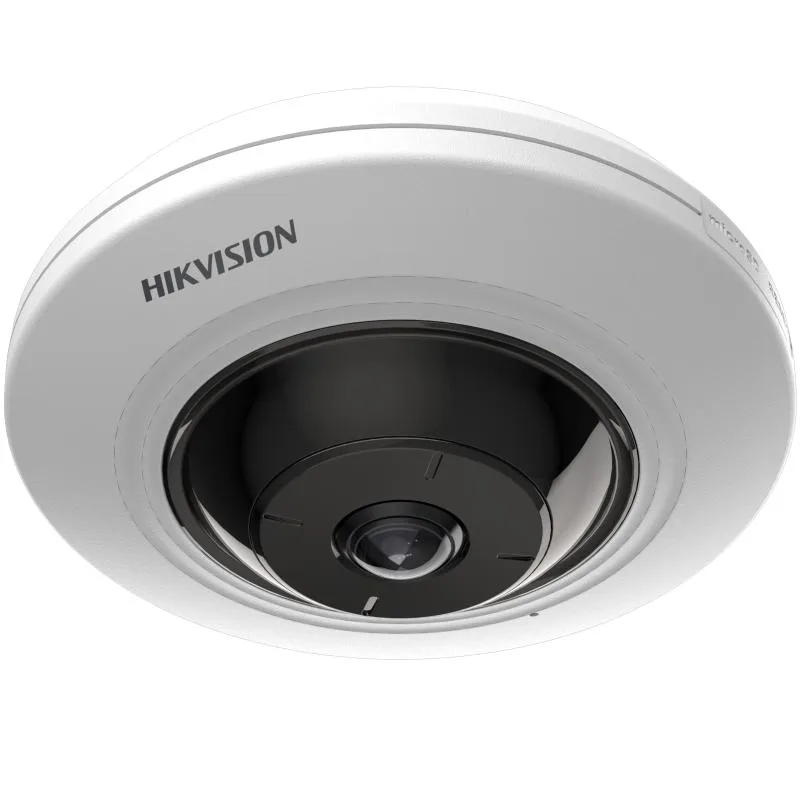

Hikvision DS-2CD3956G2-IS(U) - Panoramik/fisheye IP kamera

Markaya göre filtrele

Hikvision DS-2CD3956G2-IS(U) - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2CD3956G2-IS(U) - Panoramik/fisheye IP kamera

Model kodu
DS-2CD3956G2-IS(U)
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications. Supports 1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources. Efficient H.265+ compression technology. 360° fisheye view（Ceiling mount）. High quality imaging with 5 MP resolution. Up to 4 live view display modes. Clear imaging against strong back light due to 120 dB true WDR technology

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1920
Min. Illumination Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Lens Type Fixed focal lens, 1.05 mm
Focal Length & FOV 1.05 mm, horizontal FOV: 360°, vertical FOV：180°
Lens Mount M12
Iris Type Fixed
Aperture F2.25
Depth of Field 0.1 m to ∞
DORI D: 21 m, O: 8 m, R: 4 m, I: 2 m
Supplement Light Type IR
Supplement Light Range Up to 8 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Open Resources Memory: 60 MB, Smart RAM: 400 MB, eMMC: 2 GB
Computing Power 1.5 TOPS
Open Capability HEOP 1.0 OpendevSDK
Deep Learning Structure Caffe,PyTorch,TensorFlow
Programming Language C,C++
Main Stream 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 2560 × 1920, 2048 × 1536, 1280 × 960 180 Panorama View: 2048 × 1152, 1280 × 720 180 Dual Channel Panorama View: 4096 × 576, 2048 × 288 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1200 × 900 Fisheye + 3PTZ View: camera 01: 2048 × 1536, 1280 × 960 camera 02/camera 03/camera 04: 1200 × 900
Sub-Stream 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 640 × 480, 640 × 360 180 Panorama View: 640 × 480, 640 × 360 Fisheye + 3PTZ View: camera 01: 640 × 480, 640 × 360
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes
Mount Type Ceiling mounting
Decoding Mode Support hardware decoding and software decoding
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone -U: Yes
Audio 1 input(s) (line in), four-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output(s) (line out), four-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Basic Event Motion detection,video tampering alarm,exception
Linkage Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
Heat Map Yes
Power 12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
Dimension Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6")
Package Dimension 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Weight Approx. 320 g (0.7 lb.)
With Package Weight Approx. 510 g (1.1 lb.)
General Function Anti-banding, heartbeat, privacy mask, flash log, password reset via email, pixel counter
Storage Conditions -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Dokümanlar

Data Sheet - 5 MP AcuSense Fisheye Network Camera Quick Start Guide - 5 MP AcuSense Fisheye Network Camera User Manual - 5 MP AcuSense Fisheye Network Camera
