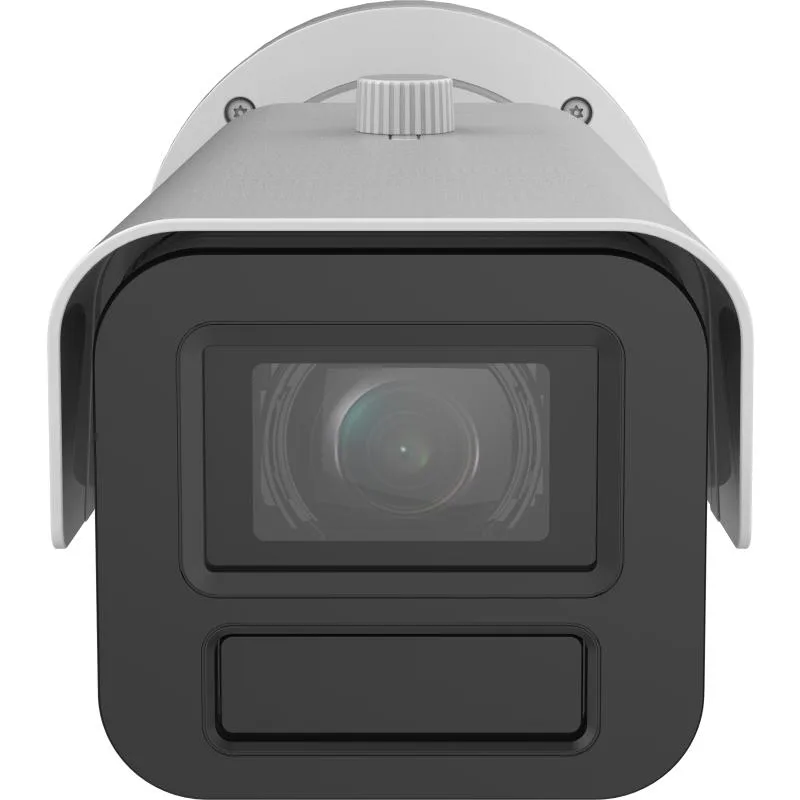

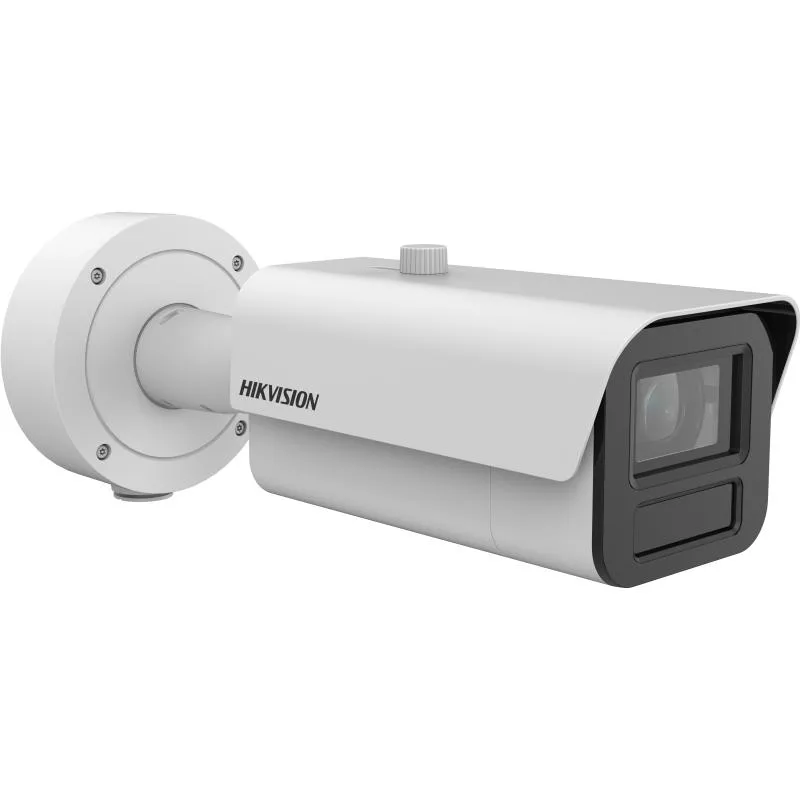

Hikvision DS-2CD3A46G2T-IZHS - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2CD3A46G2T-IZHS - Bullet IP kamera
Hikvision

Hikvision DS-2CD3A46G2T-IZHS - Bullet IP kamera

Model kodu
DS-2CD3A46G2T-IZHS
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. 10 × optical zoom captures details in remote area. Excellent low-light performance with powered-by-DarkFighter technology. Focus on human and vehicle targets classification based on deep learning. Clear imaging against strong back light due to 120 dB WDR technology. Efficient H.265+ compression technology. Audio and alarm interface available. Water and dust resistant (IP67) and vandal-resistant (IK10)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON),0 Lux with IR
Shutter Time 1 s to 1/30,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Lens Type Varifocal lens, motorized lens, 6 to 60 mm
Focal Length & FOV 6 to 60 mm, horizontal FOV 59.5° to 7.3°, vertical FOV 35.9° to 4.2°, diagonal FOV 66.5° to 8.3°
Lens Mount Integrated
Iris Type DC iris
Aperture F1.4
Min. Focus Distance W: 1 m (3.3 ft) T: 3 m (9.8 ft)
Depth of Field 2.5 m to ∞
DORI Wide: D: 93.8 m, O: 37.2 m, R: 18.8 m , I: 9.4 m Tele: D: 827.6 m , O: 328.4 m, R: 165.5 m, I: 82.8 m
Supplement Light Type IR
Supplement Light Range Up to 120 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream Monitoring mode: 50 Hz: up to 50 fps (1920 × 1080, 1280 × 720) 60 Hz: up to 60 fps (1920 × 1080, 1280 × 720) *High frame rate is supported under monitoring mode only. Smart Event/Face Capture Mode: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under Monitoring mode.
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under Monitoring mode.
Video Bit Rate 32 Kbps to 8 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under Monitoring Mode.
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, SRTP, WebSocket, WebSockets
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR, Defog
Privacy Mask 8 programmable polygon privacy masks
Day/Night Switch Day, Night, Auto, Schedule
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 3 inputs, 3 outputs (max. 24 VDC, 1 A)
Reset Key Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event Scene change detection, audio exception detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,trigger alarm output
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Face Capture Yes
Power 12 VDC ± 15%, 1.21 A, max. 14.5 W, 24 VAC ± 20%, 1.01 A, max. 14.5 W, two-core terminal block, PoE: IEEE 802.3at, Class 4, max. 18 W
Material Front cover: metal, body: metal, bracket: metal
Dimension 144 mm × 140 mm × 349.2 mm (5.7" × 5.5" × 13.7")
Package Dimension 405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
Weight Approx. 2280 g (4.1 lb.)
With Package Weight Approx. 3390 g (6.3 lb.)
Storage Conditions -40 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -40 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter
EMC CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety CE-LVD: EN 62368-1: 2014/A11: 2017, CB: IEC 62368-1: 2014, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU
Protection IP67: IEC 60529:1989+AMD1:1999+AMD2:2013, IK10: IEC 62262:2002+AMD1:2021

Dokümanlar

Data Sheet - 4MP AcuSense Moto Varifocal Bullet Camera Quick Start Guide - 4MP AcuSense Moto Varifocal Bullet Camera User Manual - 4MP AcuSense Moto Varifocal Bullet Camera
