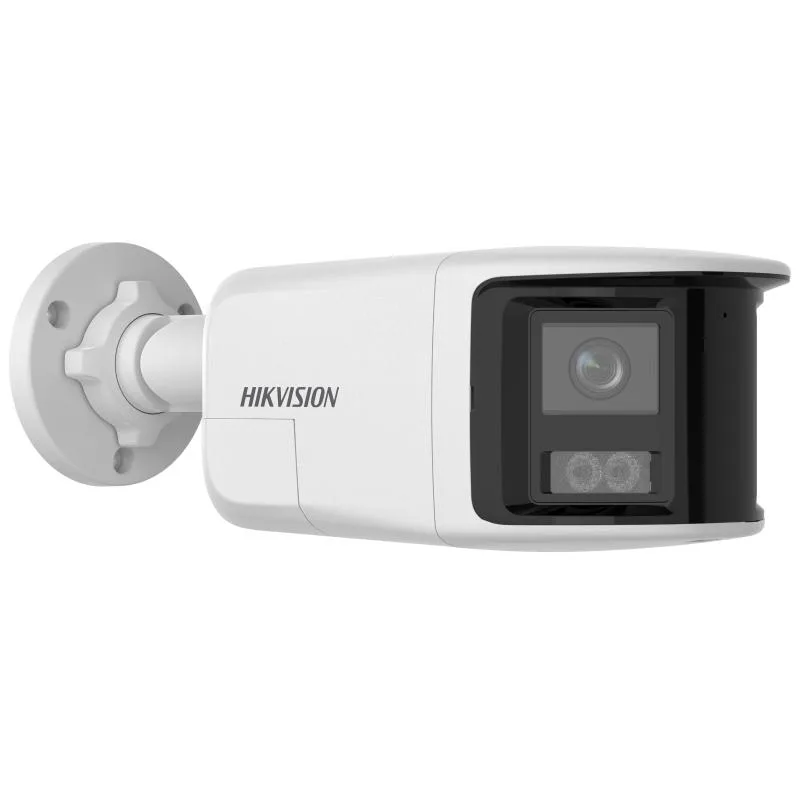

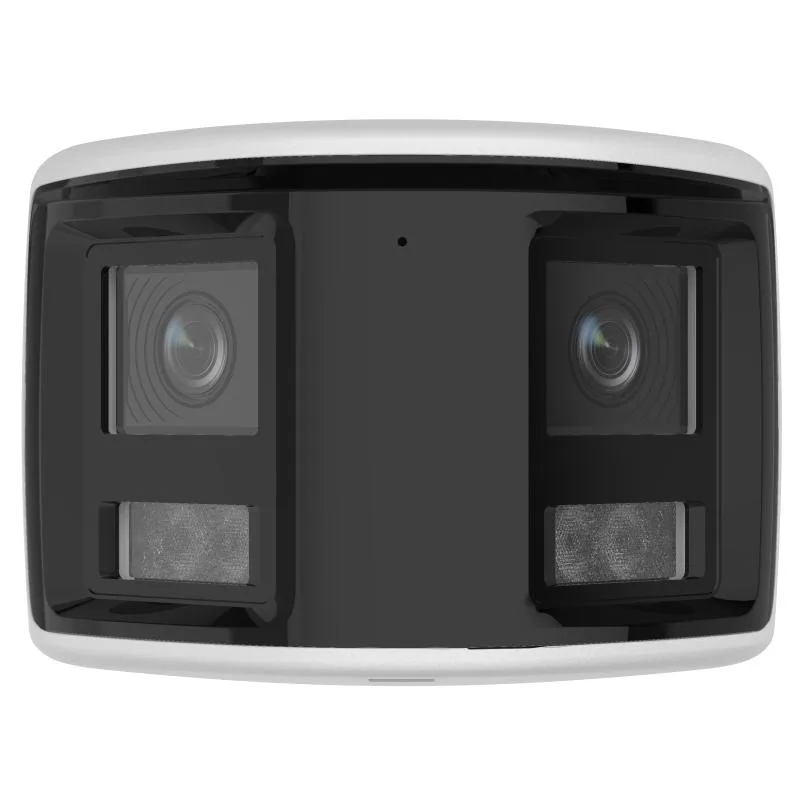

Hikvision DS-2CD3T61G2P-LIUF/SL - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2CD3T61G2P-LIUF/SL - Panoramik/fisheye IP kamera

Model kodu
DS-2CD3T61G2P-LIUF/SL
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 6 MP resolution. Support Person and Vehicle Detection. Smart Hybrid Light: advanced technology with long range. Efficient H.265+ compression technology. Clear imaging against strong back light due to 120 dB WDR technology. 3D DNR technology delivers clean and sharp images. Built-in microphone for real-time audio security. Support on-board storage up to 512 GB (SD card slot). Water and dust resistant (IP67). 180° Field of view

Teknik özellikler

Image Sensor 1/2.5" Progressive Scan CMOS
Max. Resolution 3632 × 1632
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV 2.8 mm, horizontal FOV 180°, vertical FOV 77°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)
Sub-Stream 50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes,1 built-in microphone
Built-in Speaker Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Reset Key Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))，unattended baggage detection, object removal detection
Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
Power 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W
Material Front cover: Metal, body: Plastic, bracket: Metal
Dimension 103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2")
Package Dimension 260 mm × 140 mm × 115 mm (10.2" × 5.5" × 4.5")
Weight Approx. 560 g (1.2 lb.)
With Package Weight Approx. 835 g (1.8 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
General Function Heartbeat,anti-banding,password protection,password reset via email
Flashing Light White Light
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety CB: IEC 62368-1: 2014+A11
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Dokümanlar

Data Sheet - 6 MP Panoramic Fixed Bullet Network Camera Quick Start Guide - 6 MP Panoramic Fixed Bullet Network Camera User Manual - 6 MP Panoramic Fixed Bullet Network Camera Network Camera-V5.11.0_260629 Release_IPCE_P_E11 - 6 MP Panoramic Fixed Bullet Network Camera
