Hikvision

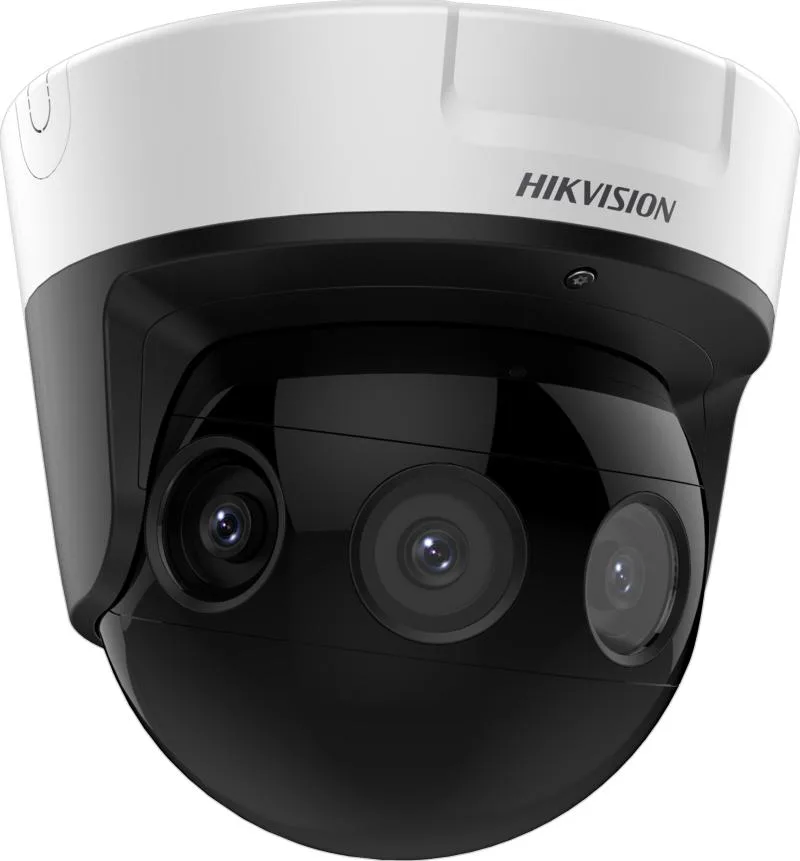

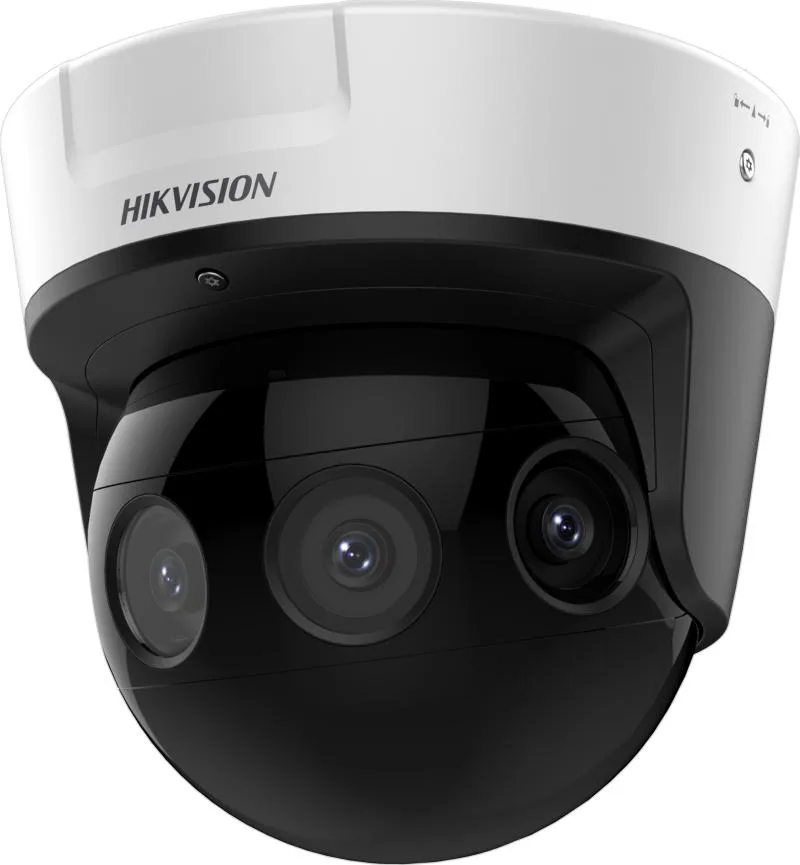

Hikvision DS-2CD6924G0-IHS(/NFC) - Panoramik/fisheye IP kamera
- Model kodu
- DS-2CD6924G0-IHS(/NFC)
- Sistem
- Kamera sistemi
- Kategori
- Panoramik/fisheye IP kamera
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
180° splicing image to present all scenes that covered by the camera. Built-in heater, ultra-low temperature start up to -40 °C. Water and dust resistant (IP67) and vandal proof (IK10). Multiple display modes available: panorama, original, panorama + ePTZ, and divided panorama
Teknik özellikler
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2.8 mm Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080 Panorama mode: 3840 × 2160 Original mode: 1920 × 1080 6 mm Panorama+ePTZ mode: panorama channel: 2400 × 400; ePTZ channel: 1920 × 1080 Panorama mode: 6480 × 1080 Original mode: 1920 × 1080 |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR |
| Shutter Time | 1/25 s to 1/100,000 s |
| Day & Night | IR cut filter. Blue glass module to reduce ghost phenomenon. |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 90° |
| Lens Type | Fixed focal lens, 2.8 mm and 6 mm optional, four lenses |
| Focal Length & FOV | 2.8 mm: horizontal FOV 180°, vertical FOV 90° 6 mm: horizontal FOV 180°, vertical FOV 25° |
| Lens Mount | M16 |
| Focus | Manual, semi-auto |
| Aperture | F1.4 |
| Supplement Light Type | IR, four IR LEDs |
| Supplement Light Range | Up to 20 m |
| IR Wavelength | 850 nm |
| Main Stream | 2.8 mm Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720) Panorama mode: 50Hz: 25fps (3840 × 2160 , 2560 × 1440 , 1920× 1080), 60Hz: 30fps (3840 × 2160 , 2560 × 1440 , 1920× 1080) Original mode: 50Hz: 25fps (1920× 1080), 60Hz: 30fps (1920× 1080) 6 mm Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (2400 × 400), 60Hz: 30fps (2400 × 400); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720) Panorama mode: 50Hz: 25fps (6480 × 1080, 4800 × 800, 3600 × 600), 60Hz: 30fps (6480 × 1080, 4800 × 800, 3600 × 600) Original mode: 50Hz: 25fps (1920 × 1080), 60Hz: 30fps (1920 × 1080) |
| Sub-Stream | 2.8 mm Panorama mode: 50Hz: 25fps (1280 × 720, 640 × 360), 60Hz: 30fps (1280 × 720, 640 × 360) 6 mm Panorama mode: 50Hz: 25fps (2400 × 400, 1920 × 320, 1440 × 240), 60Hz: 30fps (2400 × 400, 1920 × 320, 1440 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 65 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Target Cropping | Yes (only panorama mode supports) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1 |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client | iVMS-4200 |
| Web Browser | IE8+ |
| Image Settings | Rotate mode (only the original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports) |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Audio | 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1A) |
| RS-485 | 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Fiber Optical | /NFC: FC interface, single mode, single fiber, Tx1310nm/1.25G, Rx1550nm/1.25G, up to 20 km |
| Basic Event | Motion detection (only panorama and original modes support), exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| People Density | Without (D) version: Yes (only panorama mode supports) With (D) version: No |
| Power | 12 VDC, 1.6 A, max. 24 W, three-core terminal block PoE: 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A |
| Material | Aluminum alloy |
| Dimension | 189.5 × 207.63 × 206.62 mm (7.46" × 8.17" × 8.13") |
| Package Dimension | 340 × 261 × 293 mm (13.4" × 10.3" × 11.5") |
| Weight | Approx. 3 kg (6.6 lb.) |
| With Package Weight | Approx. 5 kg (11 lb.) |
| Storage Conditions | -40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing) |
| Language | English |
| General Function | Anti-flicker, heartbeat, mirror (only original mode supports), privacy masks (only original mode supports), password protection, watermark, IP address filter, pixel counter |
| Heater | Yes |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4); RCM (AS/NZS CISPR 32:2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252 (Part 1): 2010+A1:2013+A2:2015); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-ROHS (2011/65/EU); REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU) |
| Protection | IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
