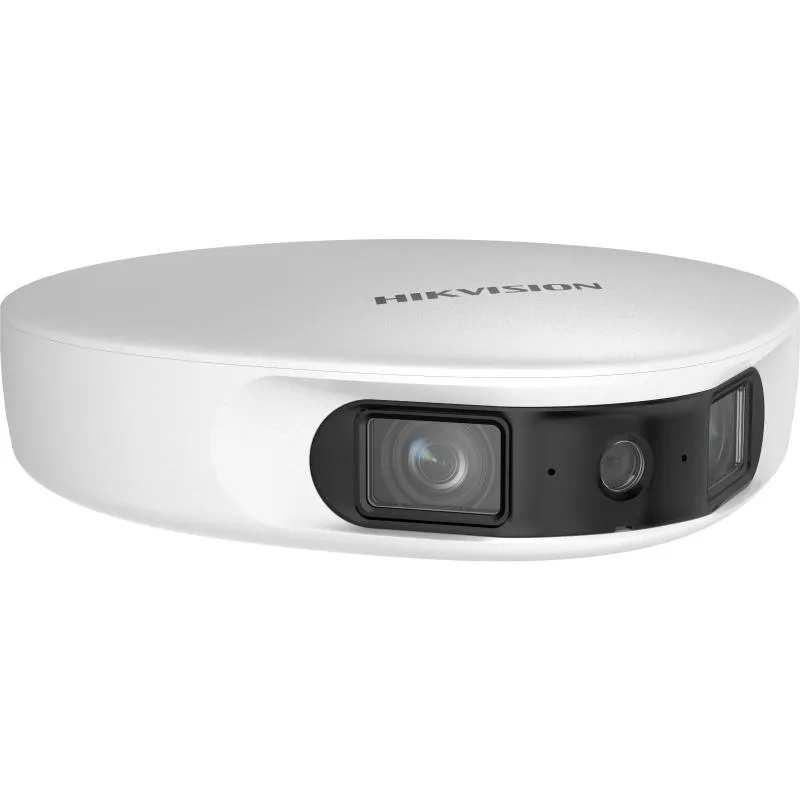

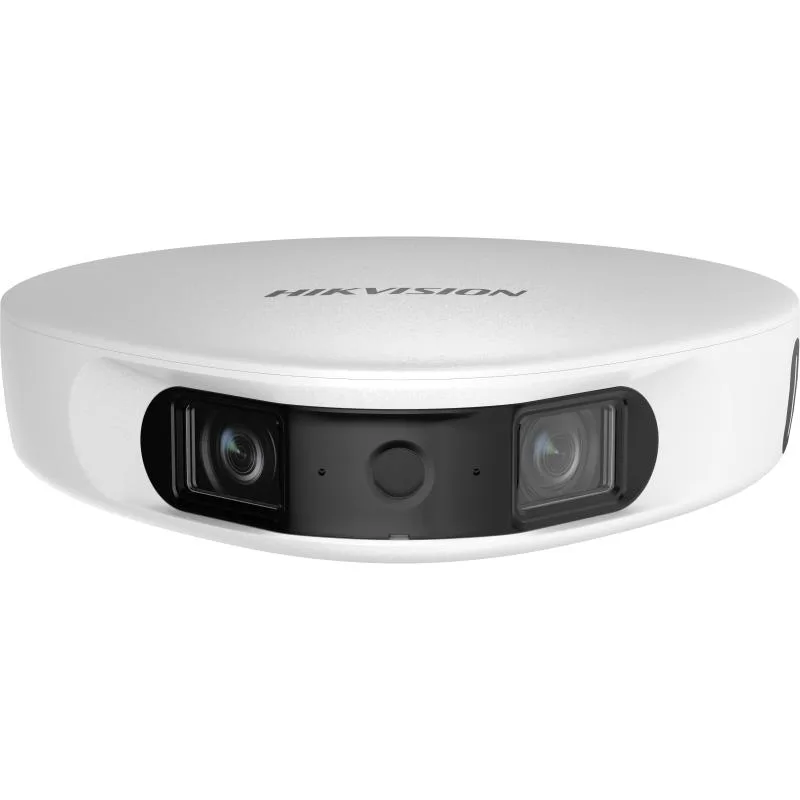

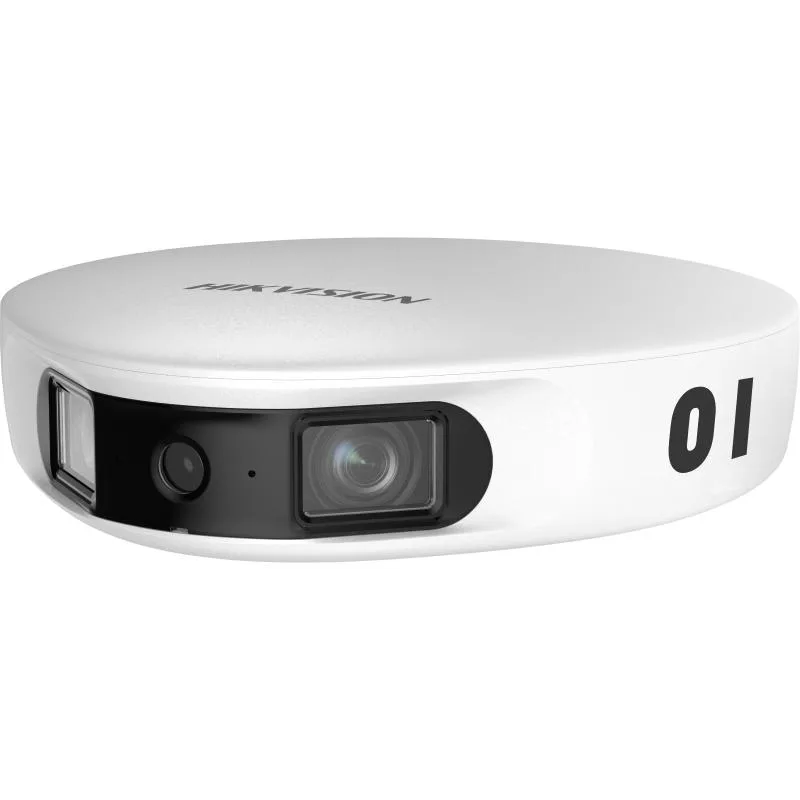

Hikvision DS-2CD6982G0-U - Panoramik/fisheye IP kamera

Markaya göre filtrele

Hikvision DS-2CD6982G0-U - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2CD6982G0-U - Panoramik/fisheye IP kamera

Model kodu
DS-2CD6982G0-U
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 15 MP resolution. Support on-board storage up to 200GB. Built-in two microphones. Auto color temperature correction with built-in sensor for accurate color reproduction. Water and dust resistant (IP65)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution Panoramic View: 7168 × 2160 Tracking Shot: 1920 × 1080
Min. Illumination 0.03 Lux（F1.0 AGC ON）
Shutter Time 1/60 s to 1/2000 s
Focal Length & FOV 2.0 mm: horizontal FOV: 200° ± 10°, vertical FOV: 56° 2.8 mm: horizontal FOV: 200° ± 10°, vertical FOV: 56°
Lens Mount M16
Iris Type Fixed
Aperture 2 mm: F1.0 2.8 mm: F1.43
Main Stream Panoramic View: H.264/H.265: 50Hz: 25fps (7168 × 2160, 3328 × 1024) 60Hz: 30fps (7168 × 2160, 3328 × 1024) Tracking Shot: H.264/H.265: 50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
Video Compression Panoramic View: Main Stream: H.265/H.264/H.264+/H.265+ Tracking Shot: Main Stream: H.265/H.264/H.265+/H.264+
Video Bit Rate Panoramic View: 16 Mbps to 64 Mbps Tracking Shot: 4 Mbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression MP2L2/AAC/MP3/AAC-LC
Audio Bit Rate 32 to160 Kbps(MP2L2)/16 to 64 Kbps(AAC)/8 to160 Kbps(MP3)
Network Storage NAS (NFS, SMB/CIFS)
Simultaneous Live View Up to 20 channels
API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Protocols TCP/IP, ICMP, HTTP, HTTPS, SNMP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets. SFTP, 802.1X
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Web Browser Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+
On-Board Storage Built-in eMMC storage, up to 200 GB
Built-in Microphone Yes, 2 built-in microphones
Reset Key Yes
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording
Power 12 VDC ± 25%, 1 A, max. 12 W,Ø5.5 mm coaxial power plug, PoE: IEEE 802.3at, Class 4, max. 14 W
Material Plastic
Dimension 198.1 mm × 208.5 mm × 57.5 mm (7.8" × 8.2" × 2.3")
Package Dimension 270 mm × 270 mm × 120 mm (10.6" × 10.6" × 4.7")
Weight Approx. 700 g (1.5 lb.)
With Package Weight Approx. 1000 g (2.2 lb.)
Startup and Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Protection IP65: IEC 60529-2013

Dokümanlar

Data Sheet - 16MP 180° PanoVu Network Camera
