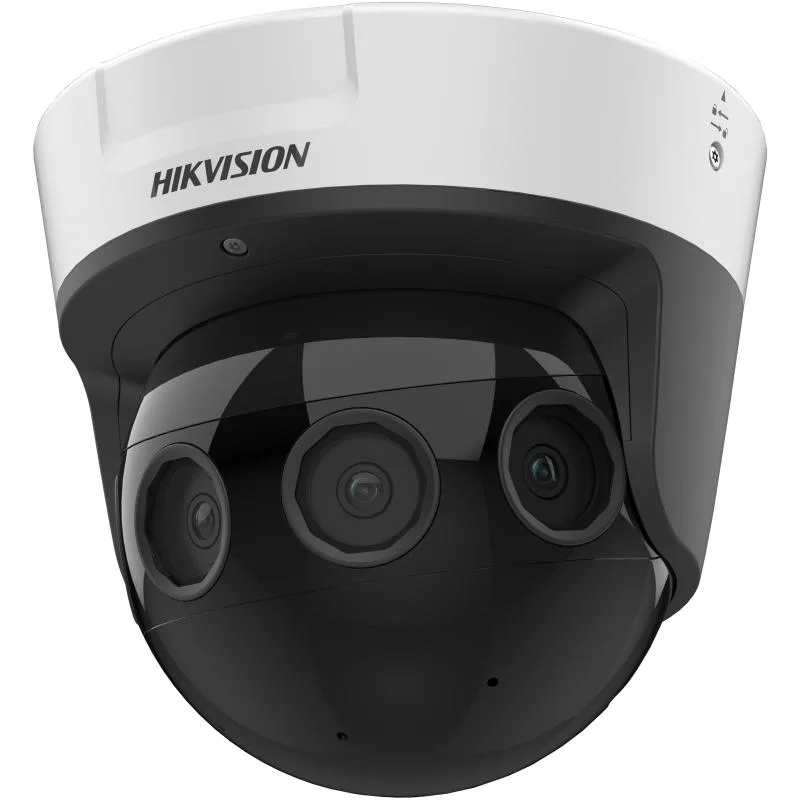

Hikvision DS-2CD6984G0-IH(S)(Y)(AC)(/NFC) - Panoramik/fisheye IP kamera

Markaya göre filtrele

Hikvision DS-2CD6984G0-IH(S)(Y)(AC)(/NFC) - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2CD6984G0-IH(S)(Y)(AC)(/NFC) - Panoramik/fisheye IP kamera

Model kodu
DS-2CD6984G0-IH(S)(Y)(AC)(/NFC)
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

180° splicing image: the image presented includes the full panoramic view covered by the camera. Built-in heater, ultra-low temperature start up to -40 °C (-40 °F). Water and dust resistant (IP67) and vandal proof (IK10). High resolution 32 MP: capturing clear images, and allowing for more details to be displayed on a video wall. DarkFighter technology captures high quality color images even in dimly light environments

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 8160 × 3616
Min. Illumination Color: 0.009 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.4, AGC ON) B/W: 0.0009 Lux @ (F1.2, AGC ON), 0.0012 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Time 1/25 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°
Lens Type Fixed focal lens, 2.8 mm, four lenses
Focal Length & FOV 2.8 mm, Single lens image: horizontal FOV 102°, vertical FOV 55°, diagonal FOV 120°, Panorama Image: horizontal FOV 180°, vertical FOV 95°
Lens Mount M12
Aperture F1.4
DORI 2.8mm：D: 91.4m, O: 36.3m, R: 18.3m, I: 9.1m
Supplement Light Type IR, four IR LEDs
Supplement Light Range Up to 20 m
IR Wavelength 850 nm
Main Stream Panorama mode: 50 Hz: 25 fps (8160 × 3616, 8160 × 2304) 60 Hz: 24 fps (8160 × 3616, 8160 × 2304) Original mode: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Panorama + ePTZ mode: Panorama channel: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) ePTZ channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 24 fps (1920 × 1080, 1280 × 720) Divided panorama mode: 50 Hz: 25 fps (2032 × 3616) 60 Hz: 24 fps (2032 × 3616)
Video Compression Main stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Audio Compression -S: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Audio Sampling Rate -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering -S: Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client iVMS-4200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Image Settings Rotate mode (only original mode supports), saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger (only -S model supports)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS (only original mode supports)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB
Audio -S: 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm -S: 2 Inputs, 2 outputs (max. 12 VDC, 1 A)
RS-485 -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Basic Event Exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Power Without -AC: 12 VDC ± 20%, 1.4 A, max. 17 W, three-core terminal block, PoE: IEEE 802.3at, Class 4, 42.5 V to 57 V, max. 23 W -AC: 24 VAC ± 20%, 1.2 A, 50 Hz, three-core terminal block, PoE: IEEE 802.3at, Class 4, 42.5 V to 57 V, max. 23 W
Material Aluminum alloy & plastic
Dimension 190 mm × 208 mm × 207 mm (7.5" × 8.2" × 8.1")
Package Dimension 336 mm × 261 mm × 293 mm (13.2" × 10.3" × 11.5")
Weight Approx. 3.5 kg (7.7 lb.)
Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter (only original mode supports)
Heater Yes
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002
Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)

Dokümanlar

Data Sheet - 32 MP 180° PanoVu Network Camera FAQ - 32 MP 180° PanoVu Network Camera PanoVu Network Camera 5.5.800 Release Note --H5.pdf - 32 MP 180° PanoVu Network Camera H10_PanoVu-V5.7.0 SP2 Release Note - 32 MP 180° PanoVu Network Camera IPCP_H10_EN_STD_5.7.0Release Note - 32 MP 180° PanoVu Network Camera
