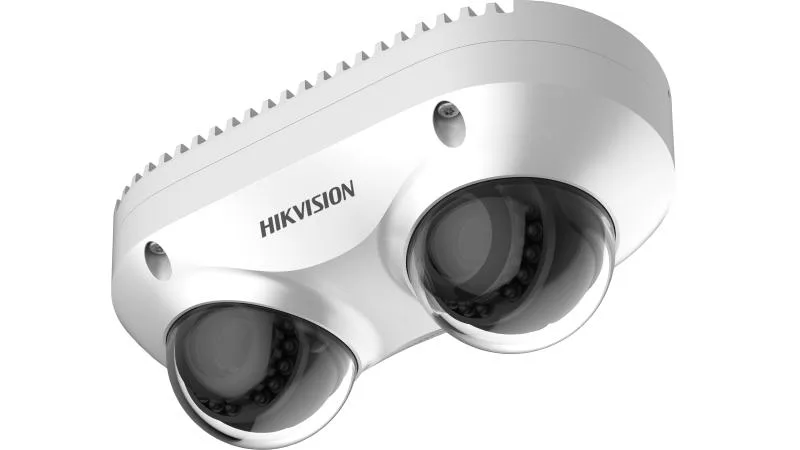

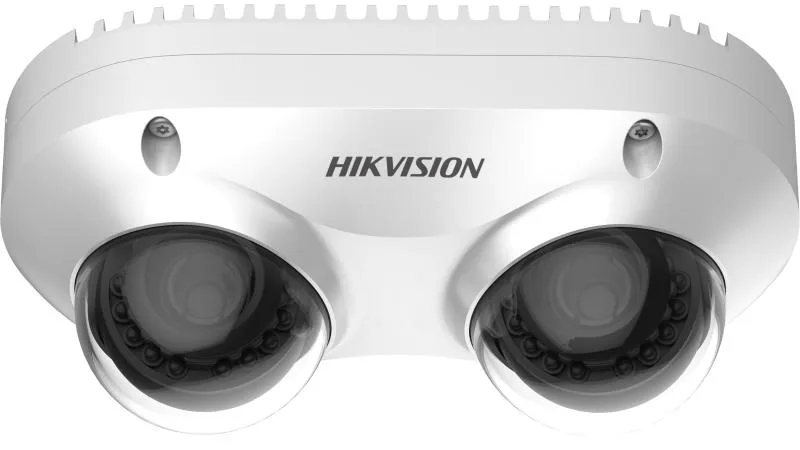

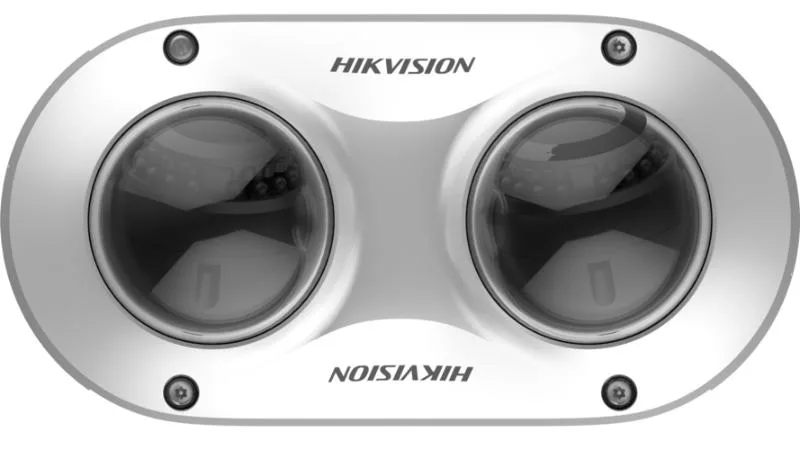

Hikvision DS-2CD6D52G0-IH(S) - Panoramik/fisheye IP kamera

Markaya göre filtrele

Hikvision DS-2CD6D52G0-IH(S) - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2CD6D52G0-IH(S) - Panoramik/fisheye IP kamera

Model kodu
DS-2CD6D52G0-IH(S)
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 5 MP resolution. 3D DNR technology delivers clean and sharp images. Efficient H.265 compression technology. Clear imaging against strong back light due to 120 dB true WDR technology. A built-in heater provides ultra-low temperature start-up to -40℃. Water and dustresistant (IP67) and vandal proof (IK10). Built-in microphone for real-time audio security. Easy installation with Power over Ethernet (PoE) technology

Teknik özellikler

Shutter Time 1 s to 1/100,000 s
Day & Night ICR Cut
Min. Illumination Color: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Angle Adjustment P: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355°
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 x 1920
Focal Length & FOV 2.8mm @ F1.6 horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128° 4 mm @ F1.6, horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104° 6 mm @ F1.6, horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63°
Lens Mount M12
Aperture F1.6
DORI 2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m 4 mm: D: 85.4 m, O: 33.9, R: 17.1 m, I: 8.5 m 6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
Supplement Light Type IR
Supplement Light Range Up to 10 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (2560 × 1920, 2048 × 1536) 60 Hz: 30 fps (2560 × 1920, 2048 × 1536)
Sub-Stream 50 Hz: 25 fps (640 × 480, 704 × 576) 60 Hz: 30 fps (640 × 480, 704 × 480)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 576) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480)
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Audio Type Stereo
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Smooth Streaming No
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2
Network Storage NAS (NFS, SMB/CIFS)
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
Image Parameters Switch Yes
Image Settings Rotate, saturation, brightness, contrast, sharpness, white balance *Rotate and perimeter protection events (line crossing detection, intrusion detection, region entrance detection, region exiting detection) cannot be enabled at the same time.
Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In (-S)
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, Defog, EIS, 3D DNR
Privacy Mask Yes
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio Without -S: 2 built-in mics -S: 2 built-in mics, 1 line in, 1 line out
Alarm -S: 1 input, 1 output (max. 36 VDC, 30mA)
RS-485 -S: 1 RS-485 interface, half duplex
Reset Key Yes
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Scene change detection, audio exception detection
Linkage Upload to FTP/NAS/memory card, send email
Power 12 VDC, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug PoE: 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 11 W
Dimension 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")
Package Dimension 227 × 172 × 125 mm (8.9" × 6.8" × 4.9")
Weight Approx. 770 g (1.7 lb.)
With Package Weight Approx. 1053 g (2.3 lb.)
Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Mirror, anti-flicker, heartbeat
Heater Yes
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingress protection: IP67, IK10

Dokümanlar

Data Sheet - Dual-Directional PanoVu Camera User Manual - Dual-Directional PanoVu Camera FAQ - Dual-Directional PanoVu Camera
