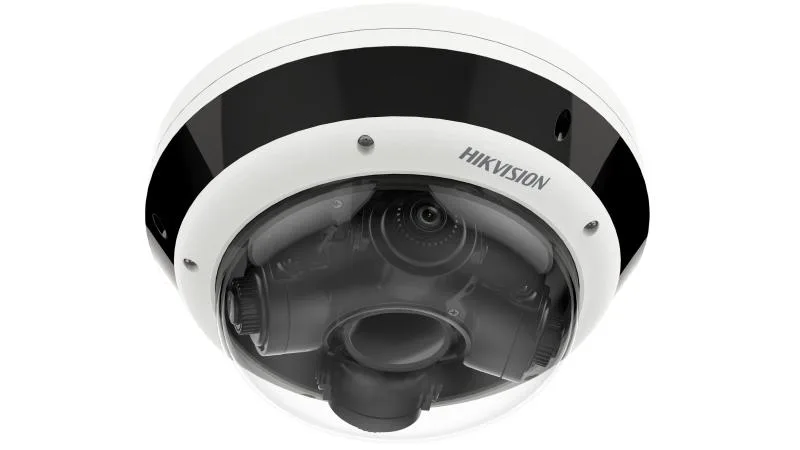

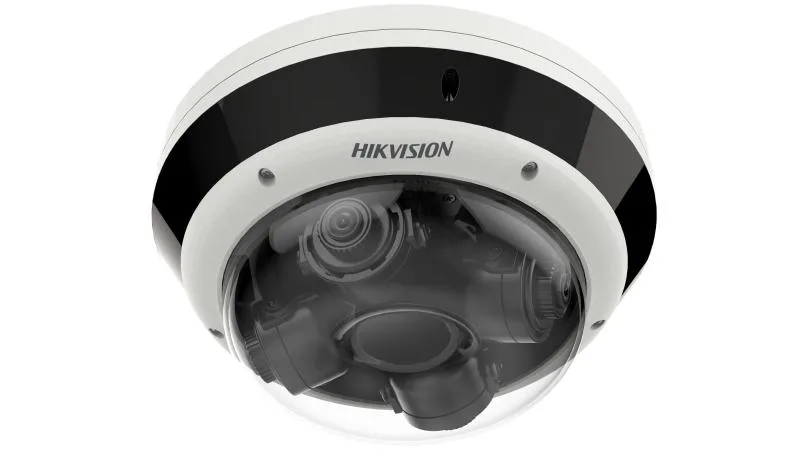

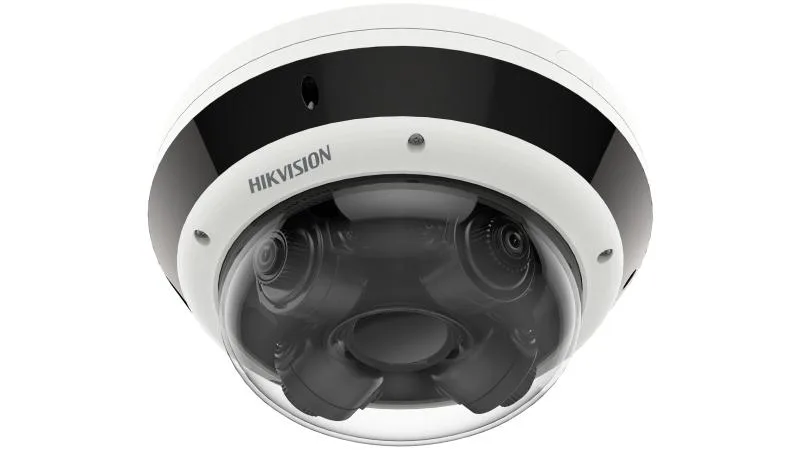

Hikvision DS-2CD6D54G1-IZS(B) - Panoramik/fisheye IP kamera

Markaya göre filtrele

Hikvision DS-2CD6D54G1-IZS(B) - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2CD6D54G1-IZS(B) - Panoramik/fisheye IP kamera

Model kodu
DS-2CD6D54G1-IZS(B)
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted. Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall. Clear imaging against strong back light due to 120 dB true WDR technology. Water and dust resistant (IP67) and vandal proof (IK10). 3D DNR technology delivers clean and sharp images. Audio and alarm interface available

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1920
Min. Illumination Color: 0.0125 Lux @ (F1.9, AGC ON) B/W: 0.0025 Lux @ (F1.9, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°
Lens Type Varifocal lens, motorized lens, 2.8 to 8 mm
Focal Length & FOV 2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°
Lens Mount Ø14
Focus Semi-auto,Manual
Aperture F1.9
Supplement Light Type IR
Supplement Light Range Up to 30 m
IR Wavelength 850 nm
Main Stream 50 Hz: 15 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 15 fps (704 × 576, 640 × 480) 60 Hz: 15 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR, Defog
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Ethernet Interface 1 RJ45 10 M/100 M/1000 M Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB
Audio 1 input (line in), 1 output (line out), 3.5 mm three-contact
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Scene change detection, audio exception detection, defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Power 12 VDC± 20%, 1.8 A, 22 W, reverse polarity protection, three-core terminal block 24 VAC ± 20%, 1.4 A, 22 W PoE: IEEE 802.3at, Class 4, 42.5 to 57 VDC, 0.44 to 0.33 A, 19 W
Material Bubble & IR cover: plastic, camera: metal
Dimension Ø250 × 114.9 mm (Ø9.8" × 4.5")
Package Dimension 336 mm × 261 mm × 293 mm (13.2" × 10.3" × 11.5")
Weight Approx. 2.2 kg (4.9 lb.)
With Package Weight Approx. 3.9 kg (8.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-banding, heartbeat, mirror, privacy mask
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002

Dokümanlar

Data Sheet - 4-Directional Multisensor Network Camera User Manual - 4-Directional Multisensor Network Camera IPCMC_H3_V5.5.821 Release Note - 4-Directional Multisensor Network Camera
