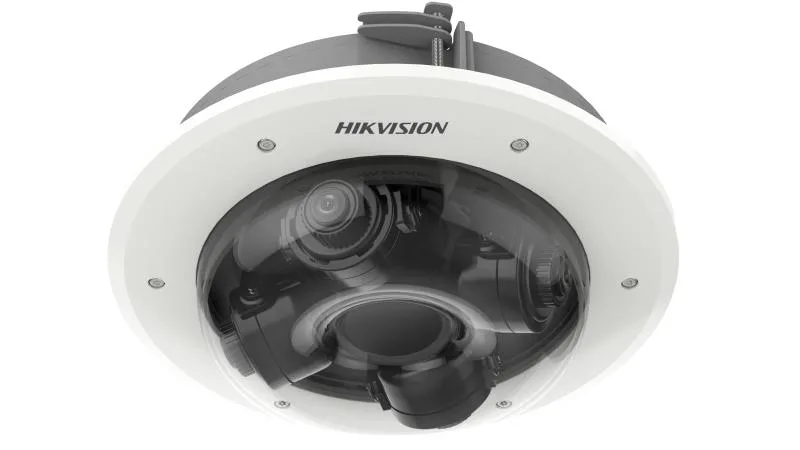

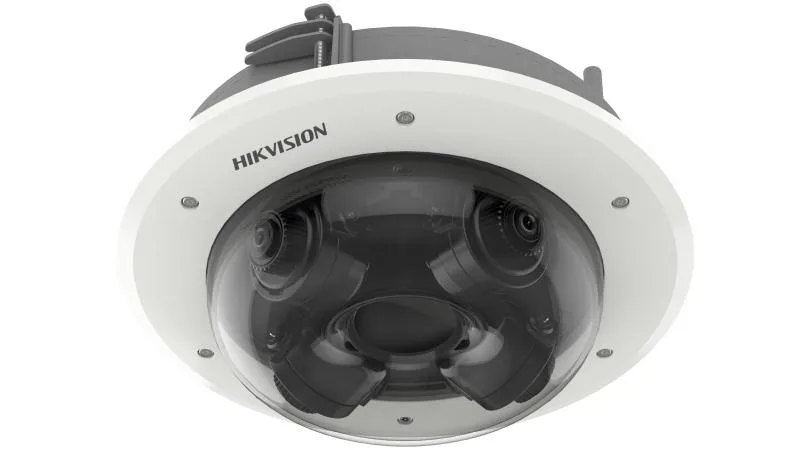

Hikvision DS-2CD6D54G1-ZS/RC - Panoramik/fisheye IP kamera

Markaya göre filtrele

Hikvision DS-2CD6D54G1-ZS/RC - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2CD6D54G1-ZS/RC - Panoramik/fisheye IP kamera

Model kodu
DS-2CD6D54G1-ZS/RC
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted. Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall. In-ceiling mounting makes the camera unnoticeable and user friendly. Clear imaging against strong back light due to 120 dB true WDR technology. Water and dust resistant (IP67) and vandal proof (IK10). 3D DNR technology delivers clean and sharp images. Audio and alarm interface available

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1920
Min. Illumination Color: 0.0125 Lux @(F1.9, AGC ON) B/W: 0.0025 Lux @(F1.9, AGC ON)
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°
Lens Type Varifocal lens, 2.8 to 8 mm
Focal Length & FOV 2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°
Lens Mount Ø14
Focus Manual, semi-auto
Aperture F1.9
Main Stream 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Audio Sampling Rate Yes
Environment Noise Filtering 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/ HTTPS, WSSE and digest authentication for Open Network Video Interface
Network Storage microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
SNR ≥52 dB
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Ethernet Interface 1 RJ45 10M/100M/1000M Ethernet port, built-in RS-232
On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Audio 1 input (line in), 1 output (line out), 3.5 mm three-contact
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1A)
RS-485 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self- adaptive)
Reset Key Yes
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Power 12 VDC ± 20%, 1.2 A, 14 W, reverse polarity protection; three-core terminal block; 24 VAC ± 20%, 1 A, 14 W; PoE: 802.3af, class 0, 36 to 57 VDC, 0.36 A to 0.22 A, 13 W
Dimension Ø255 × 95.9 mm (10″ × 3.8″)
Package Dimension 312 × 311 × 163 mm (13.2″ × 10.3″ × 11.5″)
Weight 2.1 kg (4.7 lb.)
With Package Weight 3.4 kg (7.5 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti- flicker, 3 streams, heartbeat, mirror, privacy masks
EMC 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:2015, KN 35: 2015
Safety UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am1:2009 + Am 2:2013, IS 13252(Part ):2010+A1:2013+A2:2015
Environment 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Dokümanlar

Data Sheet - 4-Directional Multisensor Network Camera User Manual - 4-Directional Multisensor Network Camera FAQ - 4-Directional Multisensor Network Camera IPC V5.5.801 build 210927 Release Note.pdf - 4-Directional Multisensor Network Camera
