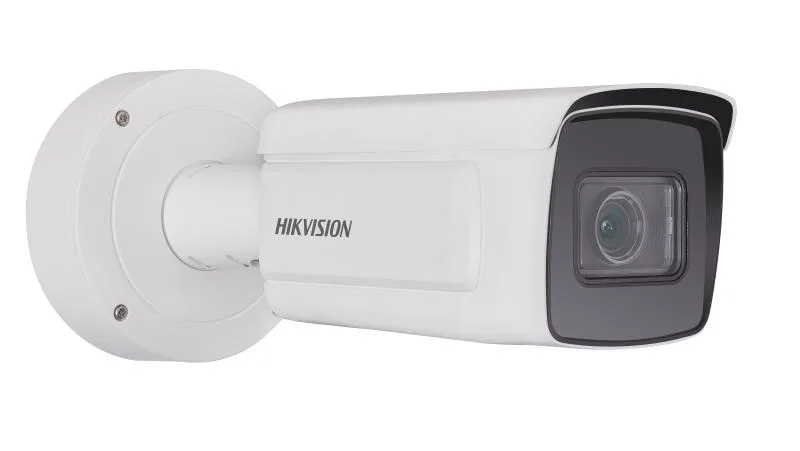

Hikvision DS-2CD7A26G0/P-IZ(H)S - Plaka tanıma (ANPR) kamera

Markaya göre filtrele

Hikvision DS-2CD7A26G0/P-IZ(H)S - Plaka tanıma (ANPR) kamera
Hikvision

Hikvision DS-2CD7A26G0/P-IZ(H)S - Plaka tanıma (ANPR) kamera

Model kodu
DS-2CD7A26G0/P-IZ(H)S
Sistem
Kamera sistemi
Kategori
Plaka tanıma (ANPR) kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Excellent low-light performance via DarkFighter technology. Clear imaging against strong back light due to LightFighter technology. License Plate Recognition. Efficient H.265+ compression technology to save bandwidth and storage. Advanced streaming technology enables smooth live view and data self-correction in poor network. 5 streams and up to 5 custom streams to meet a wide variety of applications. 6 behavior analyses, 3 exception detection, and face detection. Water and dust resistant and vandal proof (IP67 and IK10).

Teknik özellikler

Image Sensor 1/1.8ʺ Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 140 dB
Day & Night IR cut filter
Angle Adjustment Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Focus Auto, semi-auto, manual
FOV 2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
Aperture 2.8 to 12 mm: F1.2 8 to 32 mm: F1.6
Lens Mount Integrated
IR Range 2.8 to 12 mm: up to 50 m 8 to 32 mm: up to 100 m
IR Wavelength 850 nm
Max. Resolution 1920 × 1080
Main Stream 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
Environment Noise Filtering No
Audio Sampling Rate No
Audio Compression No
Audio Bit Rate No
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Web Browser Plug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
Target Cropping Yes
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Counting No
Exception Detection Scene change detection, defocus detection
Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Accuracy Capture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
No License Plate Detection Yes
Motorcycle LPR Yes (only applicable to checkpoint)
Allowlist and Blocklist Max. 10,000 records
Firmware Version 5.5.60

Dokümanlar

Quick Start Guide - 2 MP DeepinView ANPR Moto Varifocal Bullet Camera
