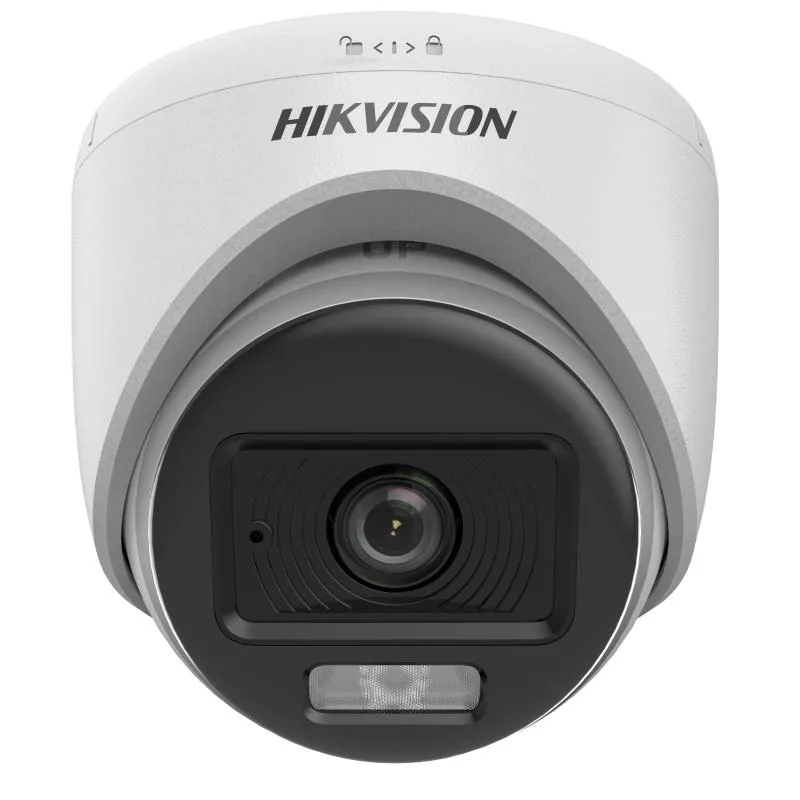

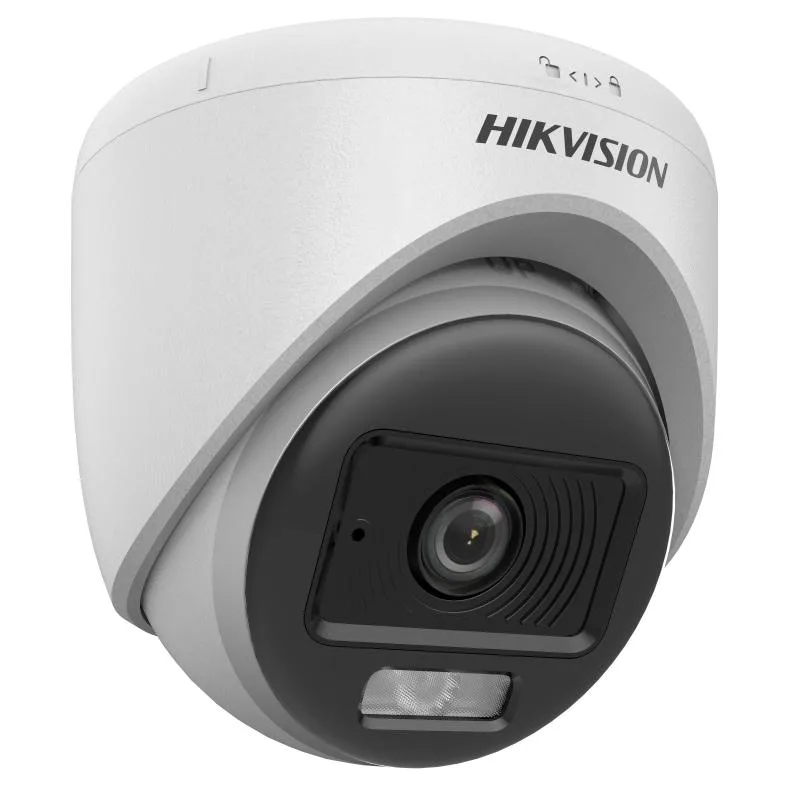

Hikvision DS-2CE70KF0T-LPFS - Dome IP kamera
Hikvision

Hikvision DS-2CE70KF0T-LPFS - Dome IP kamera

Model kodu
DS-2CE70KF0T-LPFS
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 3K, 2960 × 1665 resolution. 24/7 color imaging with F1.0 aperture. 2.8 mm and 3.6 mm fixed focal lens. Up to 20 m IR distance for bright night imaging. High quality audio with audio over coaxial cable, built-in mic. Up to 20 m white light distance for bright night imaging. One port for four switchable signals (TVI/AHD/CVI/CVBS). Smart-Hybrid light, optimize your security with flexible lighting options

Teknik özellikler

Image Sensor 3K CMOS
Signal System PAL/NTSC
Resolution 2960 (H) × 1665 (V)
Frame Rate TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
Min. Illumination 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm fixed focal lens
Field of View 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143° 3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Pickup Distance In a radius of up to 5 m
Amount 1
Supplement Light Type Smart, IR, White Light
Supplement Light Range IR: Up to 20 m,White Light: Up to 20 m
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Auto/Color
White Balance Auto/Outdoor/Global/Manual
AE (Auto Exposure) Mode HLS;DWDR;BLC;HLC;Global
Noise Reduction 2D DNR
Language English
Function Smart IR;Brightness;Sharpness;AGC;Anti-Banding
Video Output Switchable TVI/AHD/CVI/CVBS
Audio In Built-in mic
Power 12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Material Plastic
Communication HIKVISION-C
Dimension Ø85.02 mm × 81.25 mm (Ø3.35" × 3.2")
Weight Approx. 240 g (0.53 lb.)

Dokümanlar

Data Sheet - 3K ColorVu Smart hybrid light Indoor Fixed Turret Camera User Manual - 3K ColorVu Smart hybrid light Indoor Fixed Turret Camera
