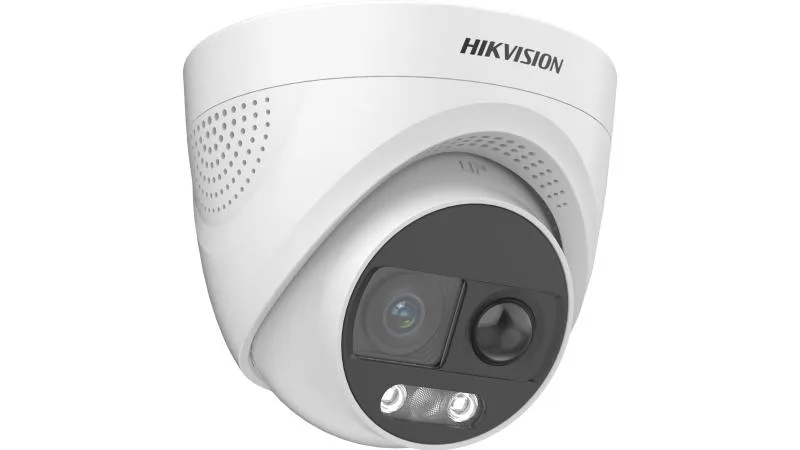

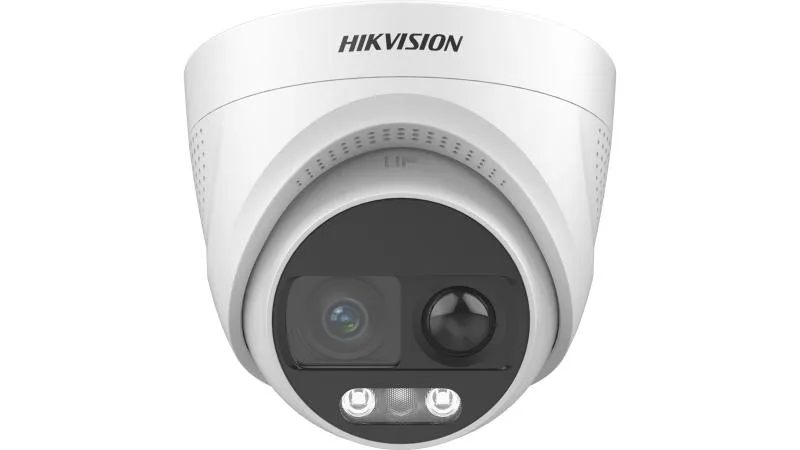

Hikvision DS-2CE72KF3T-PIRXO - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CE72KF3T-PIRXO - Dome IP kamera
Hikvision

Hikvision DS-2CE72KF3T-PIRXO - Dome IP kamera

Model kodu
DS-2CE72KF3T-PIRXO
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 3K, 2960 × 1665 resolution. 24/7 color imaging. Clear imaging against strong back light due to 130 dB true WDR technology. 3D DNR technology delivers clean and sharp images. 2.8 mm, 3.6 mm fixed focal lens. Up to 20 m White Light distance for bright night imaging. Detects human body through heat-sensitive passive infrared (PIR). Active strobe light and audio alarm to warn intruders off. Water and dust resistant (IP67). High quality audio with built-in speaker

Teknik özellikler

Image Sensor 3K CMOS
Max. Resolution 2960 (H) × 1665 (V)
Min. Illumination 0.0003Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night 24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System PAL/NTSC
Slow Shutter Max. 16 times
Lens Type 2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 109°, vertical FOV: 58°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 92°, vertical FOV: 45°, diagonal FOV: 111°
Lens Mount M16
Supplement Light Type White Light
Supplement Light Range Up to 20 m
Smart Supplement Light Yes
Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
Image Settings AGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
Frame Rate 3K@20 fps，4 MP@30 fps, 4 MP@25 fps，1080p@30 fps, 1080p@25 fps
Day/Night Mode Color
Wide Dynamic Range (WDR) ≥130 dB
Image Enhancement WDR;BLC;HLC;Global;HLS
Privacy Mask 4 programmable privacy masks
Noise Reduction 3D DNR/2D DNR
White Balance Auto/Manual
White Light Auto/Off
PIR Range 11 m
PIR Angle 110°
Video Output 1 HD analog output
Alarm 1 line out flashing light alarm (white)
Motion Detection 4 programmable motion areas
Power 12 VDC ± 25%, max. 7.7 W *You are recommended to use one power adapter to supply the power for one camera.
Material Front cover: Metal, Main body: Plastic
Dimension Ø 109.8 mm × 91.6 mm (Ø 4.32" × 3.6")
Weight Approx. 416 g (0.92 lb.)
Operating Condition -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
Communication HIKVISION-C
Language English
Protection IP67

Dokümanlar

Data Sheet - 3K ColorVu PIR Siren Fixed Turret Camera User Manual - 3K ColorVu PIR Siren Fixed Turret Camera
