Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux @ (F1.6, AGC ON)

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 109°, vertical FOV 61°, diagonal FOV 125° 4 mm, horizontal FOV 79°, vertical FOV 43°, diagonal FOV 93°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

Depth of Field

2.8 mm: 1.1 m to ∞ 4 mm: 1.2 m to ∞

DORI

2.8 mm, D: 46 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m

Supplement Light Type

IR,White Light

Supplement Light Range

IR: up to 30 m White Light: up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)

Sub-Stream

50 Hz: 25 fps (768 × 432) 60 Hz: 30 fps (768 × 432)

Video Compression

Main stream: H.265/H.264, Sub-stream: H.265/H.264

Video Bit Rate

32 Kbps to 4 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio Type

Mono sound

Audio Compression

G.711(ulaw)/ (AAC-LC)

Audio Bit Rate

64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Client

iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible

Web Browser

Chrome 57.0+, Firefox 52.0+, Edge 89+

Encryption Mode

WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK

Wi-Fi Protocol

IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax

Frequency Range

2.4 GHz to 2.4835 GHz

Channel Bandwidth

20/40 MHz,Only 802.11n supports 40MHz

Modulation

802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16QAM, 64QAM 802.11n: BPSK, QPSK, 16QAM, 64QAM 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM

Transfer Rate

802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 150 Mbps 802.11ax: up to 114 Mbps

Wireless Range

Up to 120 m (The performance varies based on actual environment)

Antenna

1 Antenna

Image Parameters Switch

Yes

Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone

1 built-in microphone

Built-in Speaker

Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle))

Linkage

Notify surveillance center,audible warning

Power

12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,*A switching adapter is included in the package.

Material

Front cover: Plastic, body: Plastic, bracket: Plastic

Dimension

94.1 mm × 75 mm × 174.5 mm (3.70" × 2.95" × 6.87")

Package Dimension

285 mm × 145 mm × 93 mm (11.22" × 5.71" × 3.66")

Weight

Approx. 270 g (0.60 lb.)

With Package Weight

Approx. 520 g (1.15 lb.)

Storage Conditions

-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)

Language

English, Ukranian

General Function

Heartbeat,mirror,password protection,anti-banding

CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP66: IEC 60529-2013

TESAN İLETİŞİM A.Ş

Bahçelievler, İstanbul

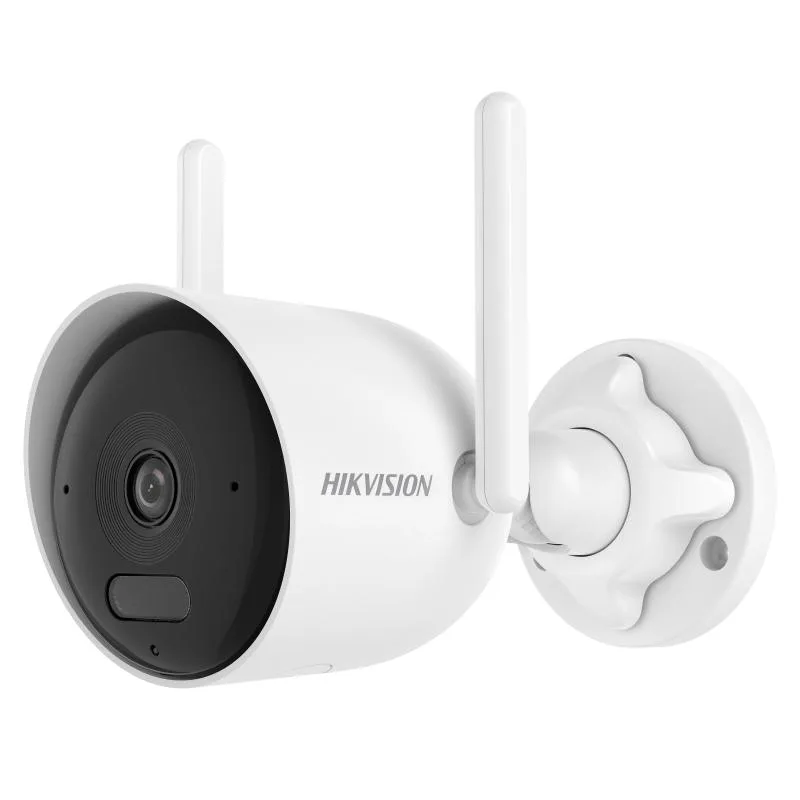

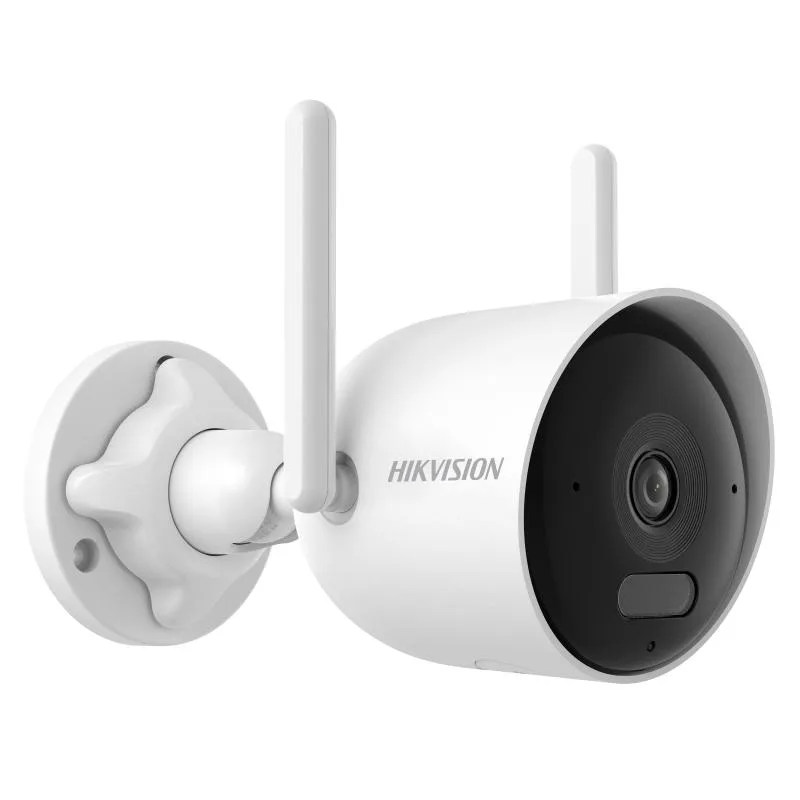

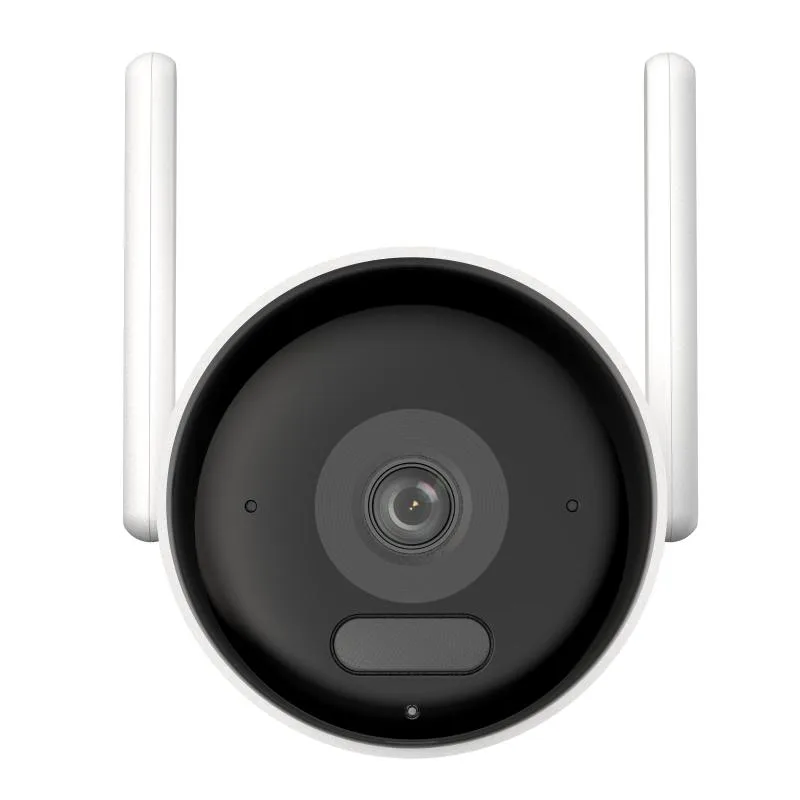

Hikvision DS-2CFW02(/EU) - Bullet IP kamera
