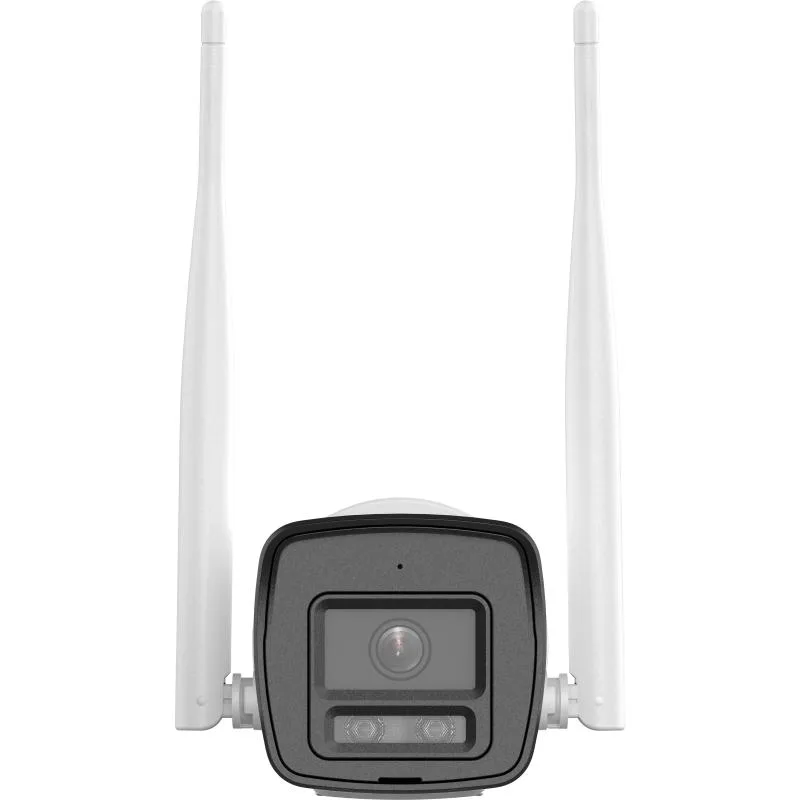

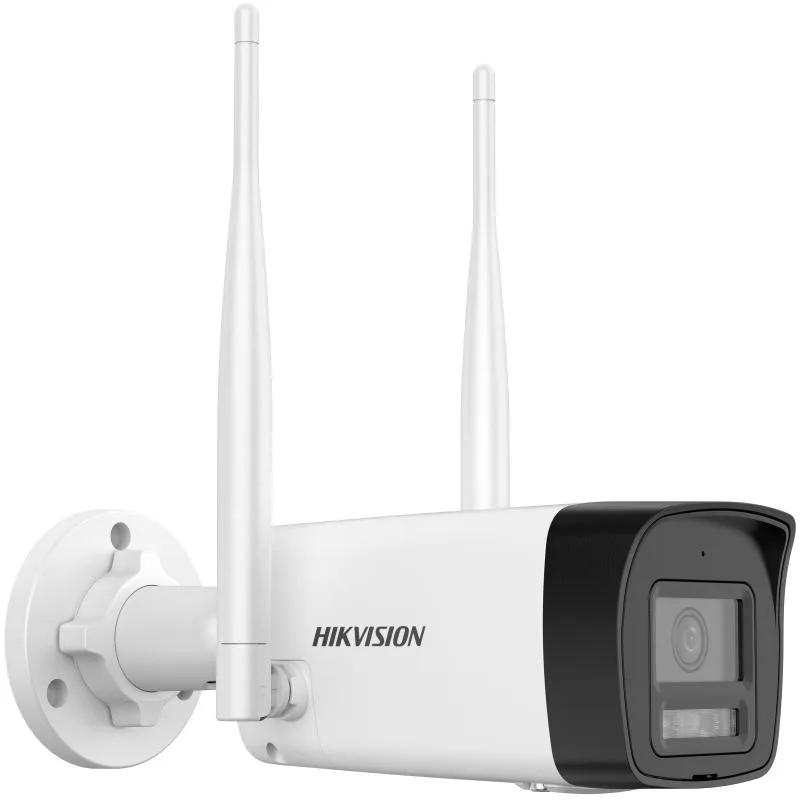

Hikvision DS-2CV1043G2-LIDW(F)(B) - Bullet IP kamera
Hikvision

Hikvision DS-2CV1043G2-LIDW(F)(B) - Bullet IP kamera

Model kodu
DS-2CV1043G2-LIDW(F)(B)
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Support Wi-Fi 6. Good night-time performance with up to 30 m IR and 30 m white light. Built-in microphone and speaker, support two-way audio. Support Human and Vehicle Detection. Water and dust resistant (IP66). Support on-board storage up to 512 GB (SD card slot)

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85° 6 mm, horizontal FOV 46°, vertical FOV 24°, diagonal FOV 54°
Aperture F1.6
Iris Type Fixed
Lens Mount M12
Depth of Field 2.8 mm: 1.3 m to ∞ 4 mm: 2 m to ∞ 6 mm: 4.1 m~44 m
DORI 4 mm, D: 68 m, O: 27 m, R: 13 m 4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m 6 mm, D: 142 m, O: 56 m, R: 28 m, I: 14 m
Supplement Light Type IR, White Light
IR Wavelength 850 nm
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Main Stream 50 Hz: 20 fps (2560 x 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 20 fps (768 × 432) 60 Hz: 20 fps (768 × 432)
Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio Type Mono sound
Audio Compression G.711(ulaw)/ (AAC-LC)
Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible
Web Browser Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+
Wi-Fi Protocol IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
Frequency Range 2.4 GHz to 2.4835 GHz
Channel Bandwidth 20/40 MHz
Modulation 802.11n: QPSK, BPSK,16QAM, 64QAM, 802.11b: CCK, QPSK, BPSK, 802.11g: QPSK, BPSK,16QAM, 64QAM
Transfer Rate 11n: up to 300 Mbps
Image Parameters Switch Yes
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes
Built-in Speaker Yes
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Linkage Notify surveillance center, send email, trigger recording, trigger capture, audible warning
Power 12 VDC ± 25%, 0.55 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Material Base: plastic, front cover: metal, back cover: plastic
Dimension 260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5" × 2.7")
Package Dimension 300 mm × 130 mm × 100 mm (10.2" × 5.1" × 4.9")
Weight Approx. 310 g (0.68 lb.)
With Package Weight Approx. 550 g (1.21 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RF CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013

Dokümanlar

Data Sheet - 4 MP Outdoor Wi-Fi Fixed Bullet Network Camera Quick Start Guide - 4 MP Outdoor Wi-Fi Fixed Bullet Network Camera User Manual - 4 MP Outdoor Wi-Fi Fixed Bullet Network Camera
