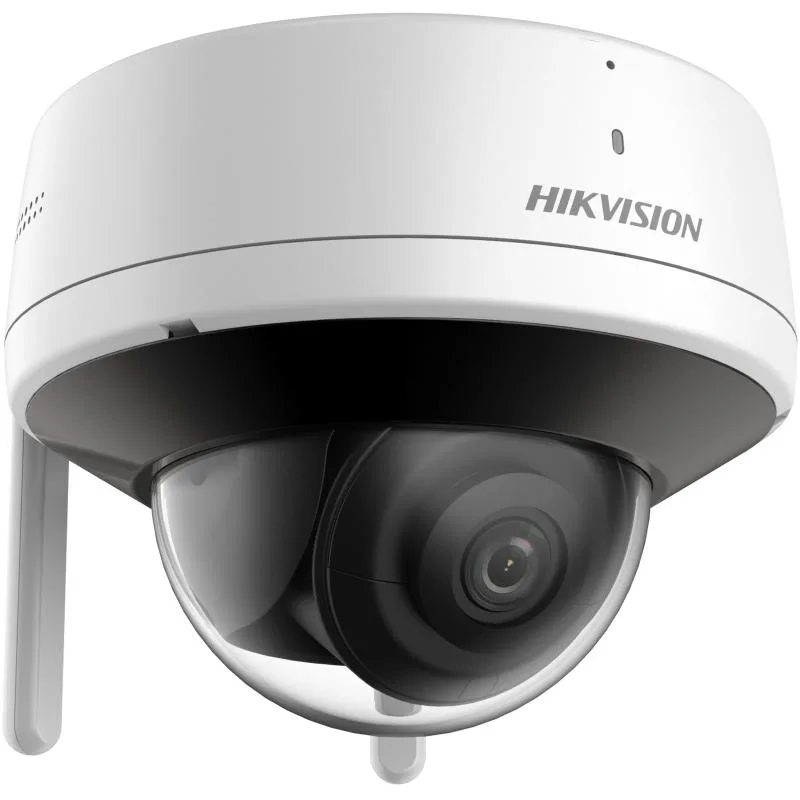

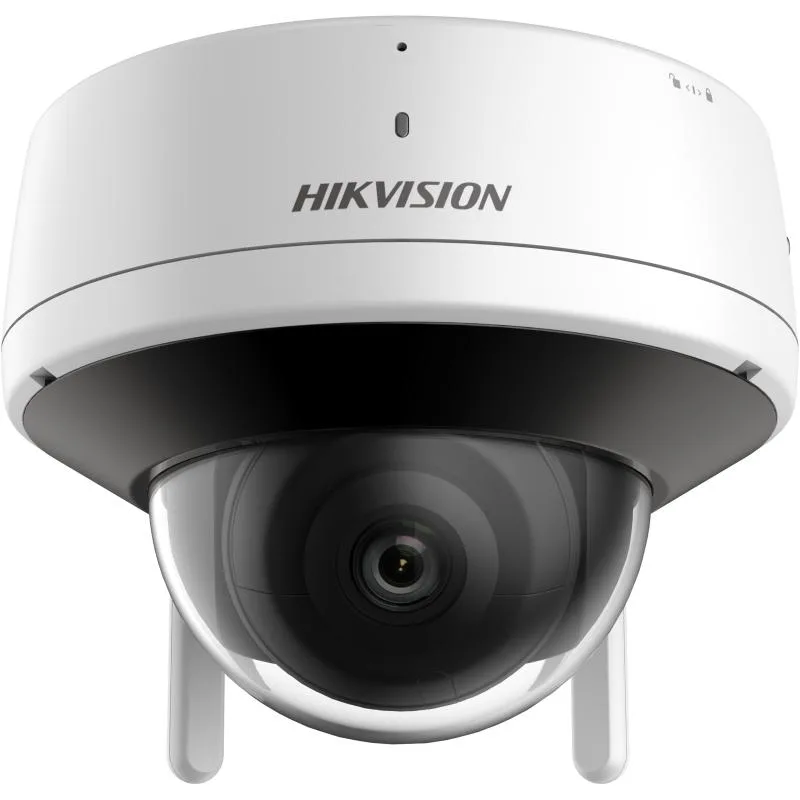

Hikvision DS-2CV1123G2-IDW - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CV1123G2-IDW - Dome IP kamera
Hikvision

Hikvision DS-2CV1123G2-IDW - Dome IP kamera

Model kodu
DS-2CV1123G2-IDW
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Realizing Wi-Fi connection and easy installation. Efficient H.265 compression technology. EXIR 2.0, advanced infrared technology with long IR distance. Support Human Detection. Water and dust resistant (IP66)

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Aperture F1.6
Iris Type Fixed
Lens Mount M12
Depth of Field 2.8 mm: 1 m to ∞ 4 mm: 1.2 m to ∞
DORI 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)
Sub-Stream 50 Hz: 25 fps (768 × 432) 60 Hz: 30 fps (768 × 432)
Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264
Video Bit Rate 32 Kbps to 4 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio Type Mono sound
Audio Compression G.711(ulaw)/ (AAC-LC)
Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200
Web Browser Chrome 57.0+, Firefox 52.0+, Edge 89+
Wi-Fi Protocol IEEE802.11b,IEEE802.11g,IEEE802.11n
Frequency Range 2.4 GHz to 2.4835 GHz
Channel Bandwidth 20/40 MHz
Modulation 802.11n: QPSK, BPSK,16QAM, 64QAM,802.11b: CCK, QPSK, BPSK,802.11g: QPSK, BPSK,16QAM, 64QAM
Encryption Mode WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Transfer Rate 11n: up to 300 Mbps
Wireless Range Up to 120 m (The performance varies based on actual environment)
Antenna 2 Antennas
Image Parameters Switch Yes
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Built-in Microphone Yes
Built-in Speaker NA
On-Board Storage NA
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle))
Linkage Notify surveillance center,audible warning
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language English, Ukranian
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material Base: Metal, front cover: Polycarbonate, back cover: Polycarbonate
Dimension Ø125.9 mm × 96.1 mm (Ø5" × 3.8")
Package Dimension 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight Approx. 590 g (1.3 lb.)
General Function Heartbeat,mirror,password protection,anti-banding
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RF CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013
