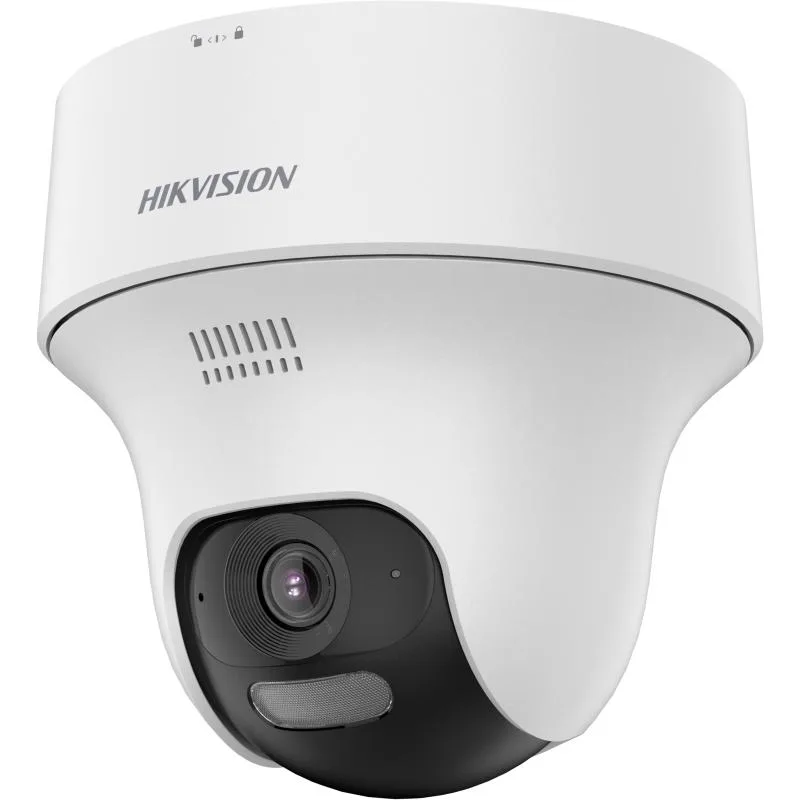

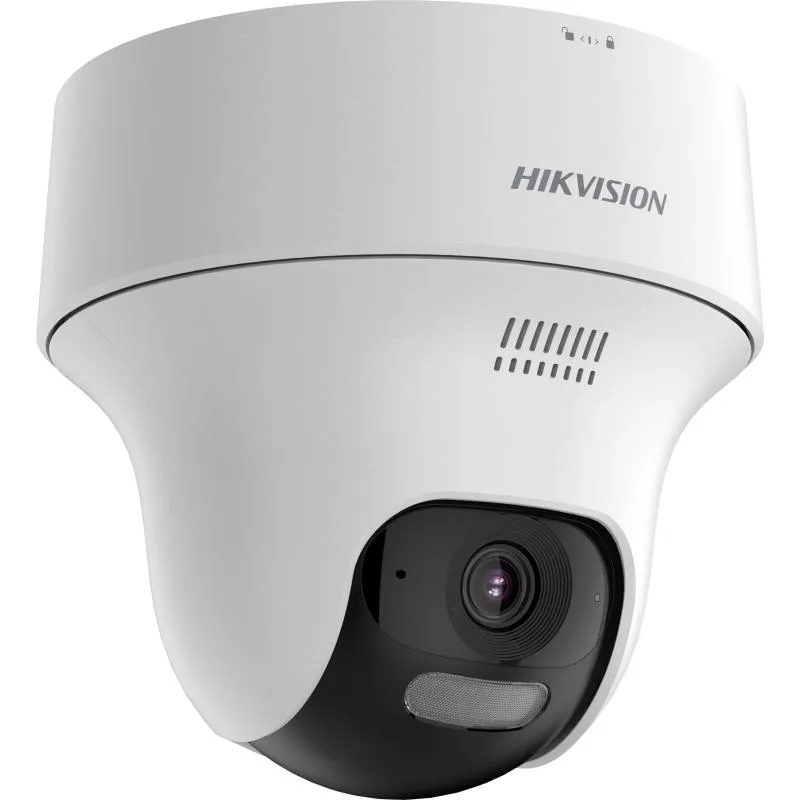

Hikvision DS-2CV1F23G2-LIDWF(B) - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CV1F23G2-LIDWF(B) - Dome IP kamera
Hikvision

Hikvision DS-2CV1F23G2-LIDWF(B) - Dome IP kamera

Model kodu
DS-2CV1F23G2-LIDWF(B)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Support Wi-Fi 6. Built-in microphone and speaker, support two-way audio. Good night-time performance with up to 20 m IR and 15 m white light. Digital WDR, HLC, BLC, 3D DNR. High quality imaging with 2 MP resolution

Teknik özellikler

Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.03 Lux @ (F2.2, AGC ON), B/W: 0.015Lux @(F2.2, AGC ON), 0 Lux with IR
Focal Length 4 mm
FOV Horizontal field of view: 96.5°, vertical field of view: 52°, diagonal field of view: 115.5°
Aperture F2.2
Supplement Light Type IR,White Light
Supplement Light Range White light distance: up to 15 m,IR distance: up to 20 m
IR Wavelength 850 nm
Movement Range (Pan) 0° to 350°
Movement Range (Tilt) 0° to 75°
Pan Speed Up to 20°/s
Tilt Speed Up to 10°/s
Main Stream 50 Hz：25 fps（1920 × 1080，1280 × 720） 60 Hz：30 fps（1920 × 1080，1280 × 720）
Sub-Stream 50 Hz：25 fps（768 x 432） 60 Hz：30 fps（768 x 432）
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Audio Compression G.711ulaw/AAC-LC
Audio Bit Rate AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps; G.711ulaw: 64 Kbps
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Protocols IPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour
API Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, Hik-Connect
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Security Password protection,complicated password,watermark,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log,host authentication (MAC address)
Client Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible
Wi-Fi Protocols IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
Frequency Range 2.4 GHz to 2.4835 GHz
Channel Bandwidth 20/40 MHz
Modulation 802.11b: DBPSK, DQPSK, CCK, 802.11g: BPSK, QPSK, 16QAM, 64QAM, 802.11n: BPSK, QPSK, 16QAM, 64QAM, 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Transfer Rate 11b: up to 11 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps,11ax: up to 114 Mbps
Image Settings Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone 1 built-in microphone
On-board Storage X
Built-in Speaker 1 built-in speaker
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Notify surveillance center,send email,trigger recording,trigger capture,audible warning
Protection IP54
Power 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
Dimension Ø124 mm × 119 mm (Ø4.89" × 4.68")
Weight Weight:Approx. 290 g (0.6 lb.) With Package Weight:Approx. 390 g (0.8 lb.)
Material Plastic
Operating Condition -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
Language English, Ukrainian
