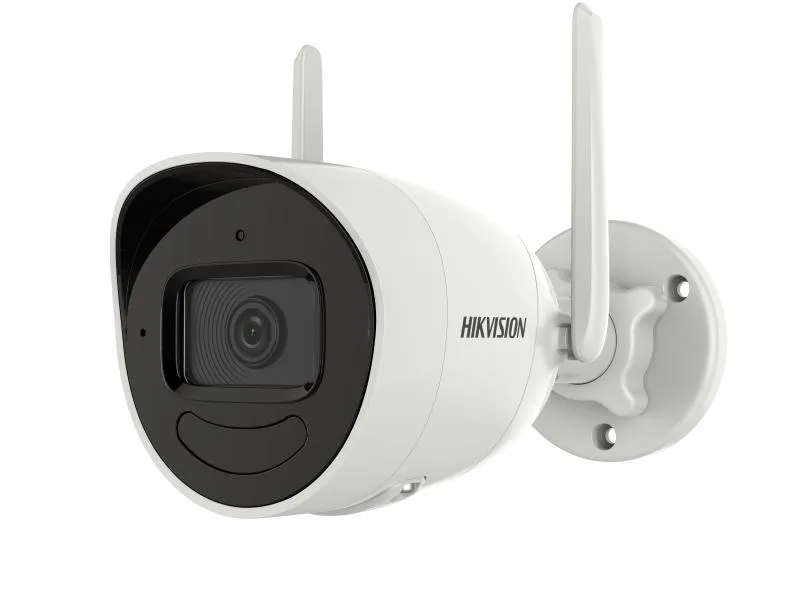

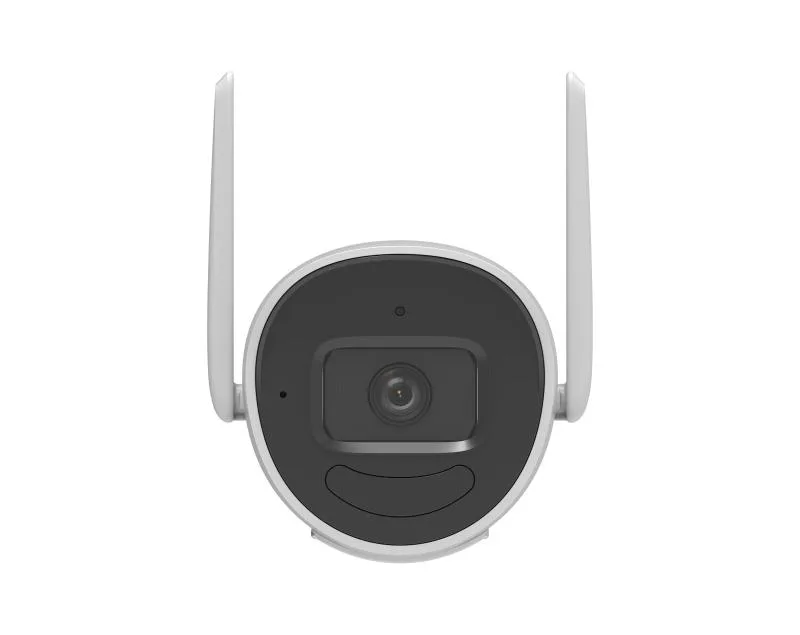

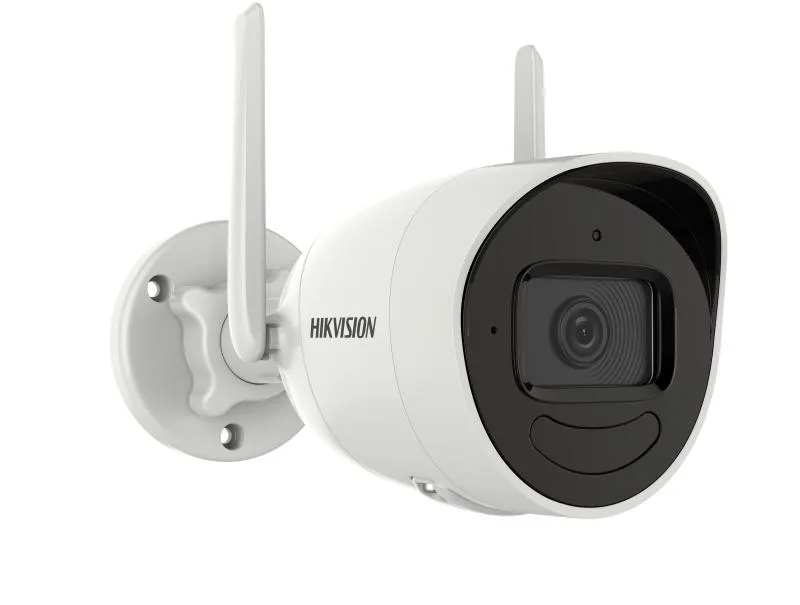

Hikvision DS-2CV2041G2-IDW - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2CV2041G2-IDW - Bullet IP kamera
Hikvision

Hikvision DS-2CV2041G2-IDW - Bullet IP kamera

Model kodu
DS-2CV2041G2-IDW
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Realizing Wi-Fi connection and easy installation. Provides real-time security via built-in two-way audio. EXIR 2.0, advanced infrared technology with long IR distance. Support on-board storage up to 512 GB (SD card slot). Water and dust resistant (IP66)

Teknik özellikler

Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111° 4 mm, horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°
Aperture F1.6
Iris Type Fixed
Lens Mount M12
Depth of Field 2.8 mm: 1 m to ∞ 4 mm: 1.2 m to ∞
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Supplement Light Type IR
IR Wavelength 850 nm
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Security Password protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
User/Host Up to 32 users. 3 levels: administrator, operator and user
Network Storage NAS (NFS, SMB/CIFS), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Transfer Rate 11n: up to 300 Mbps
Wi-Fi Protocol 802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
Frequency Range 2.412 GHz to 2.472 GHz
Channel Bandwidth 20/40 MHz
Modulation 802.11n: BPSK, QPSK, 16QAM, and 64QAM,802.11b: DBPSK and DQPSK, CCK,802.11g: BPSK, QPSK, 16QAM, and 64QAM
Wireless Range Up to 120 m (The performance varies based on actual environment)
Antenna 2 Antennas
Image Settings saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, 3D DNR
Built-in Microphone Yes
Built-in Speaker Yes
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection, exception
Linkage Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language English, Ukrainian
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material Base: metal, front cover: metal, back cover: plastic
Dimension 175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
Package Dimension 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight Approx. 335 g (0.8 lb.)
With Package Weight Approx. 689 g (1.5 lb.)
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RF FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); MIC (JPN)
Safety CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013

Dokümanlar

Data Sheet - 4 MP Outdoor Audio Fixed Bullet Network Camera Quick Start Guide - 4 MP Outdoor Audio Fixed Bullet Network Camera User Manual - 4 MP Outdoor Audio Fixed Bullet Network Camera Network Camera-V5.7.26 Release Note-E8 - 4 MP Outdoor Audio Fixed Bullet Network Camera
