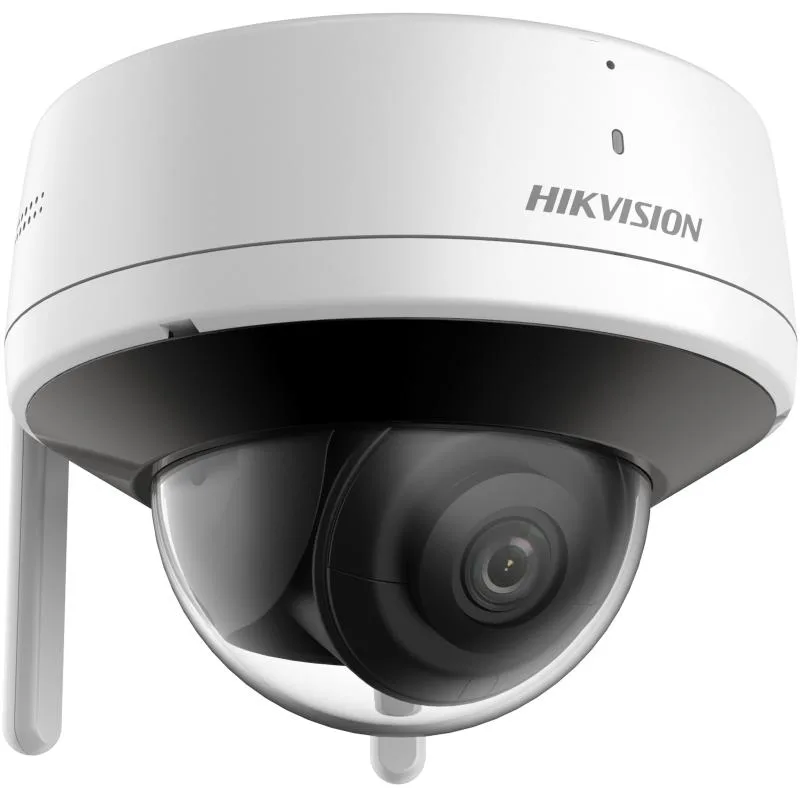

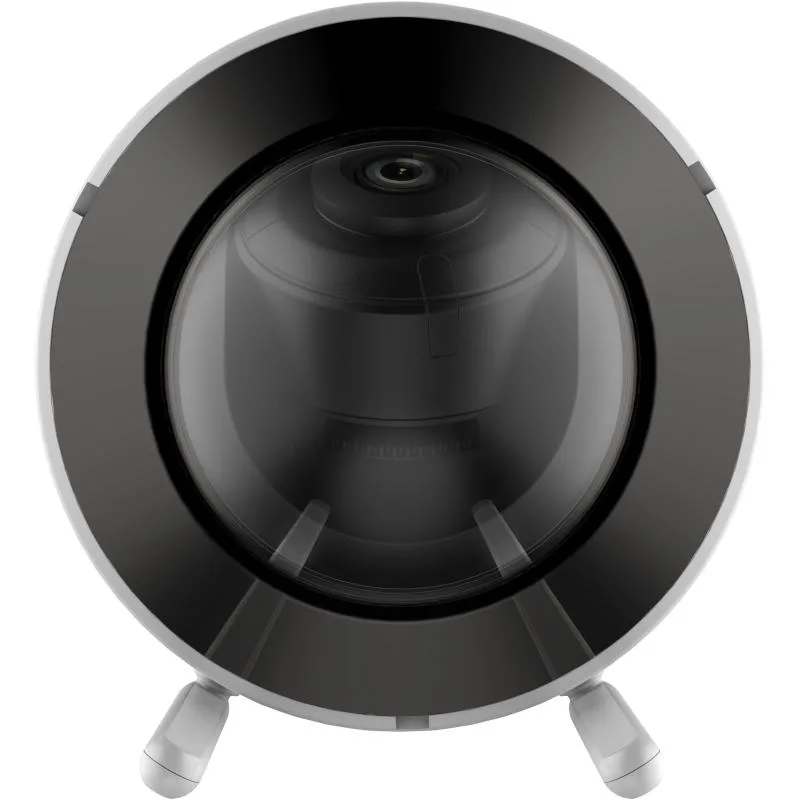

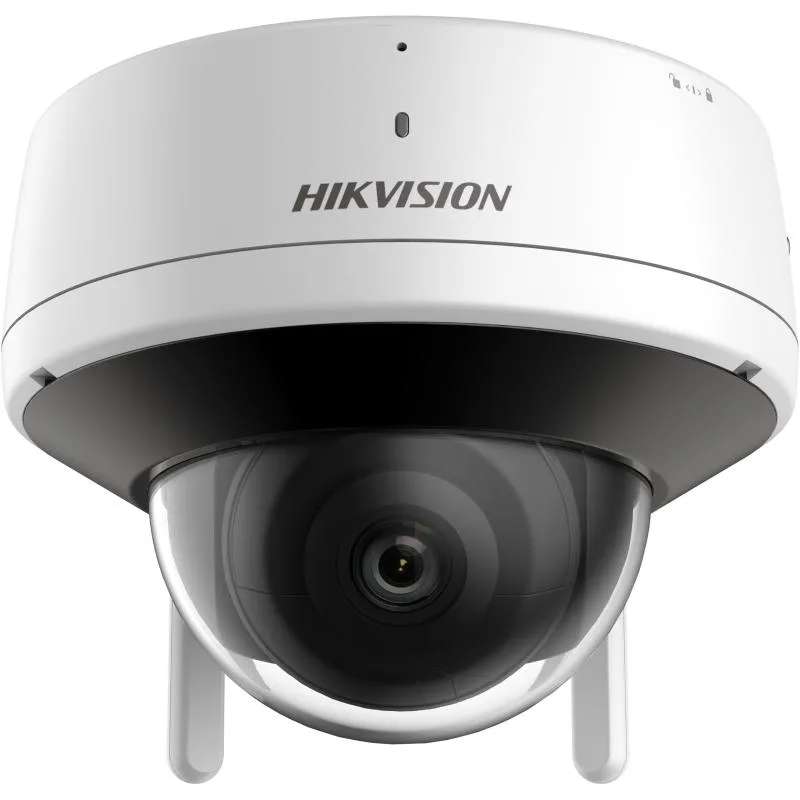

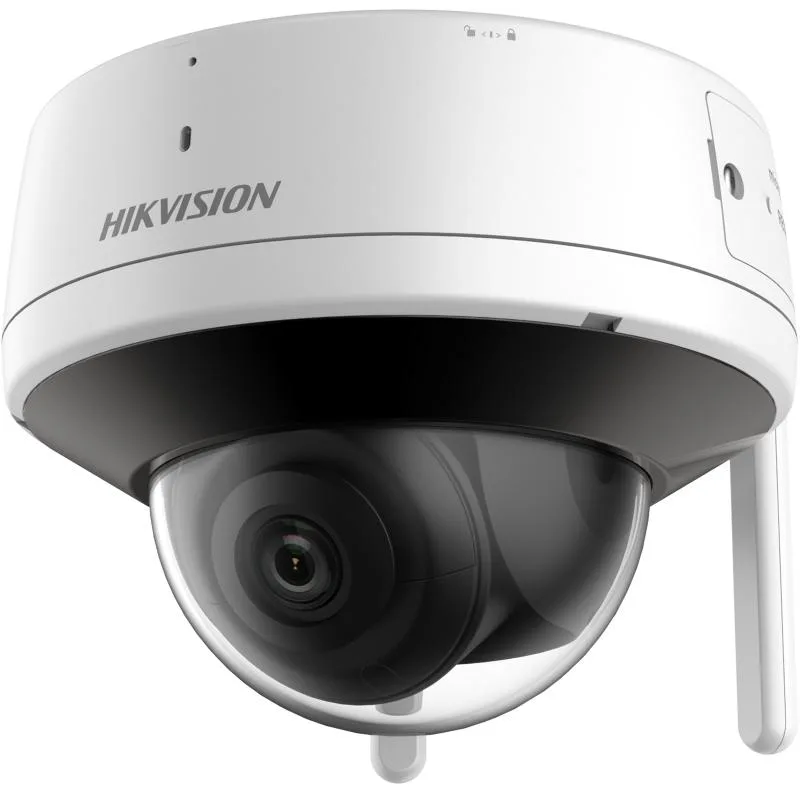

Hikvision DS-2CV2141G2-IDW - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2CV2141G2-IDW - Dome IP kamera
Hikvision

Hikvision DS-2CV2141G2-IDW - Dome IP kamera

Model kodu
DS-2CV2141G2-IDW
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Realizing Wi-Fi connection and easy installation. Provides real-time security via built-in two-way audio. Efficient H.265 compression technology. EXIR 2.0, advanced infrared technology with long IR distance. Water and dust resistant (IP66). Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB. (W) version models support mobile monitoring via Hik-Connect

Teknik özellikler

Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111° 4 mm, horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°
Aperture F1.6
Iris Type Fixed
Lens Mount M12
Depth of Field 2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, SDK
Security Password protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
User/Host Up to 32 users. 3 levels: administrator, operator and user
Network Storage NAS (NFS, SMB/CIFS), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Wi-Fi Protocol 802.11n: OFDM,802.11b: CCK, QPSK, BPSK,802.11g: OFDM
Frequency Range 2.412 GHz to 2.472 GHz
Channel Bandwidth 20/40 MHz
Modulation 802.11n: OFDM ,802.11b: CCK, QPSK, BPSK,802.11g: OFDM
Transfer Rate 11n: up to 300 Mbps
Wireless Range Up to 120 m (The performance varies based on actual environment)
Antenna 2 Antennas
Image Settings saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks
Built-in Microphone Yes,1 built-in microphone
Built-in Speaker Yes, 1 built-in speaker
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection, exception
Linkage notify surveillance center,trigger recording,trigger capture, Upload to NAS/memory card
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language English, Ukrainian
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material Polycarbonate cover, polycarbonate body
Dimension Ø126 mm × 96.1 mm (Ø5" × 3.8")
Package Dimension 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight Approx. 590 g (1.3 lb.)
With Package Weight Approx. 989 g (2.2 lb.)
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
RF FCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); MIC (JPN)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013

Dokümanlar

Data Sheet - 4 MP Outdoor Audio Fixed Dome Network Camera Quick Start Guide - 4 MP Outdoor Audio Fixed Dome Network Camera User Manual - 4 MP Outdoor Audio Fixed Dome Network Camera Network Camera-V5.7.26 Release Note-E8 - 4 MP Outdoor Audio Fixed Dome Network Camera
