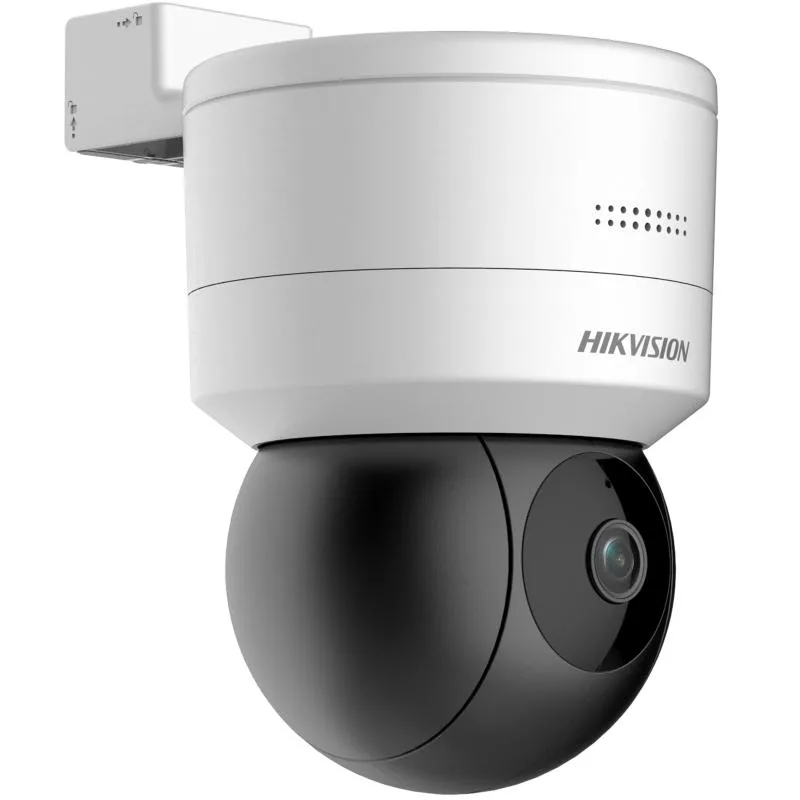

Hikvision DS-2DE1C200IW-DE3(F1)(S7) - PTZ IP kamera

Markaya göre filtrele

Hikvision DS-2DE1C200IW-DE3(F1)(S7) - PTZ IP kamera
Hikvision

Hikvision DS-2DE1C200IW-DE3(F1)(S7) - PTZ IP kamera

Model kodu
DS-2DE1C200IW-DE3(F1)(S7)
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Digital WDR, HLC, BLC, 3D DNR. Hik-Connect cloud service and APP for remote management and views of devices. Good night-time performance with up to 15 m IR. Two-way audio with built-in microphone and speaker. Supports microSD/microSDHC/microSDXC card, up to 256 GB

Teknik özellikler

Image Sensor 1/2.7″ Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR
Focal Length 4 mm
FOV Horizontal FOV 90°, vertical FOV 48°, diagonal FOV 107°
Aperture F2.0
Supplement Light Type IR
Supplement Light Range IR Distance: up to 15 m
IR Wavelength 850 nm
Movement Range (Pan) 0° to 350°
Movement Range (Tilt) -15° to 100°
Pan Speed Up to 20°/s
Tilt Speed Up to 15°/s
Main Stream 50 Hz: 60 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 60 fps (640 × 480, 640 × 360)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bit Rate AAC: 16 Kbps, 32 Kbps, 64 Kbps; MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps; G.711alaw: 64 Kbps
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Protocols IPv4/IPv6,HTTP,HTTPS,QoS,FTP,SMTP,UPnP,DNS,DDNS,NTP,RTSP,RTP,TCP/IP,UDP,DHCP,Bonjour
API Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, Hik-Connect
Image Settings Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone 1 built-in microphone
Built-in Speaker 1 built-in speaker
Reset Yes
Basic Event Motion detection
Linkage Upload to FTP/memory card, notify surveillance center, send email, audible warning
Power 5 VDC, Micro USB, Max. 5.5 W; PoE (802.3af)
Dimension 127 mm × 93.5 mm × 143 mm (5.00" × 3.68" × 5.63")
Weight Approx. 275 g (0.61 lb.)
Material Plastic
Operating Condition -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection, watermark
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
Safety CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017);
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP54

Dokümanlar

Data Sheet - 1-inch 2 MP IR Mini PT Dome Network Camera User Manual - 1-inch 2 MP IR Mini PT Dome Network Camera Network Camera-V5.7.26 Release Note-E8 - 1-inch 2 MP IR Mini PT Dome Network Camera
