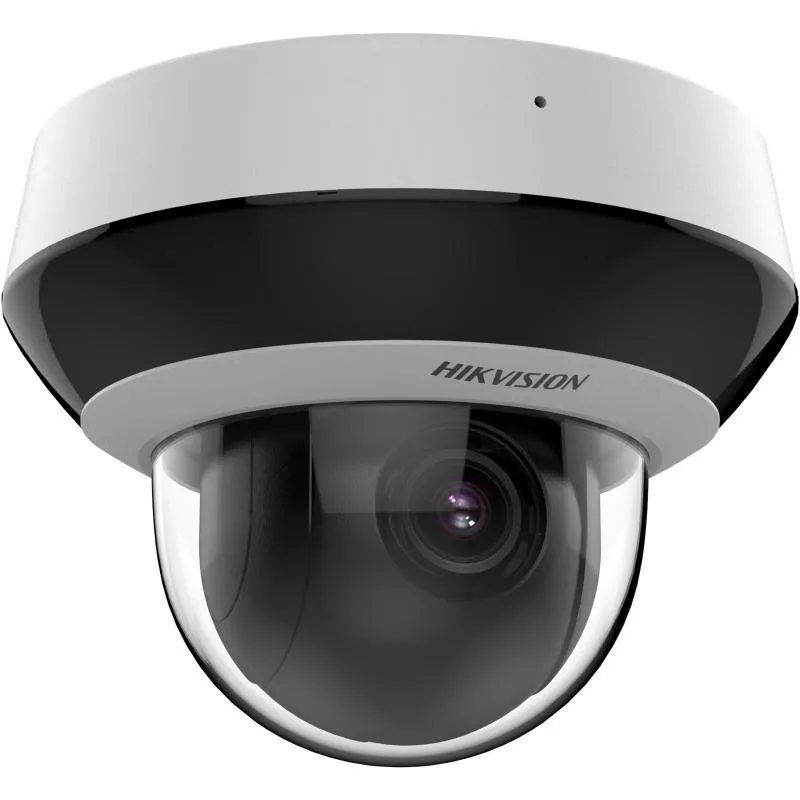

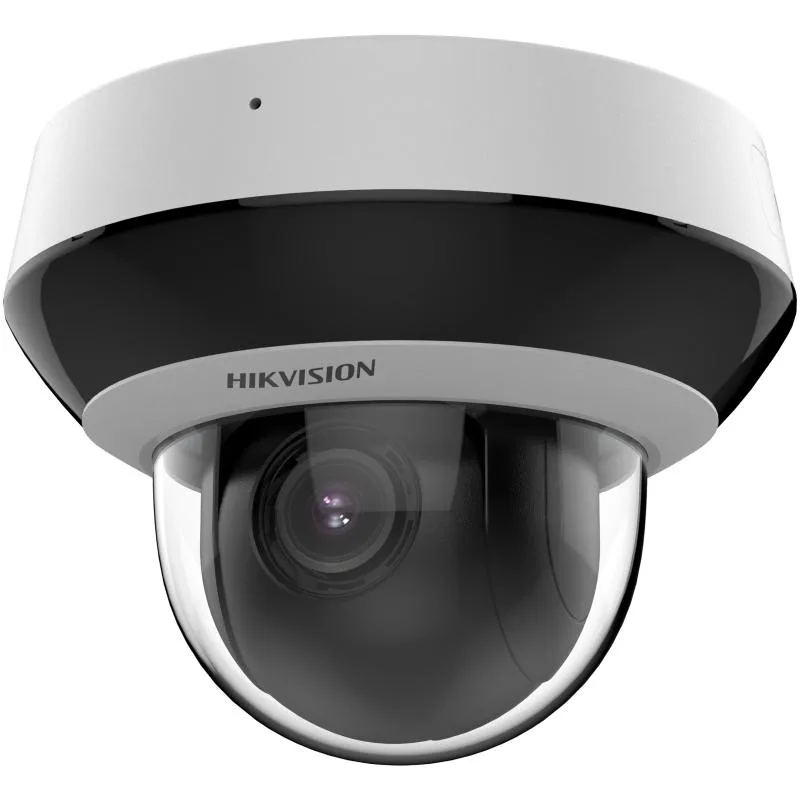

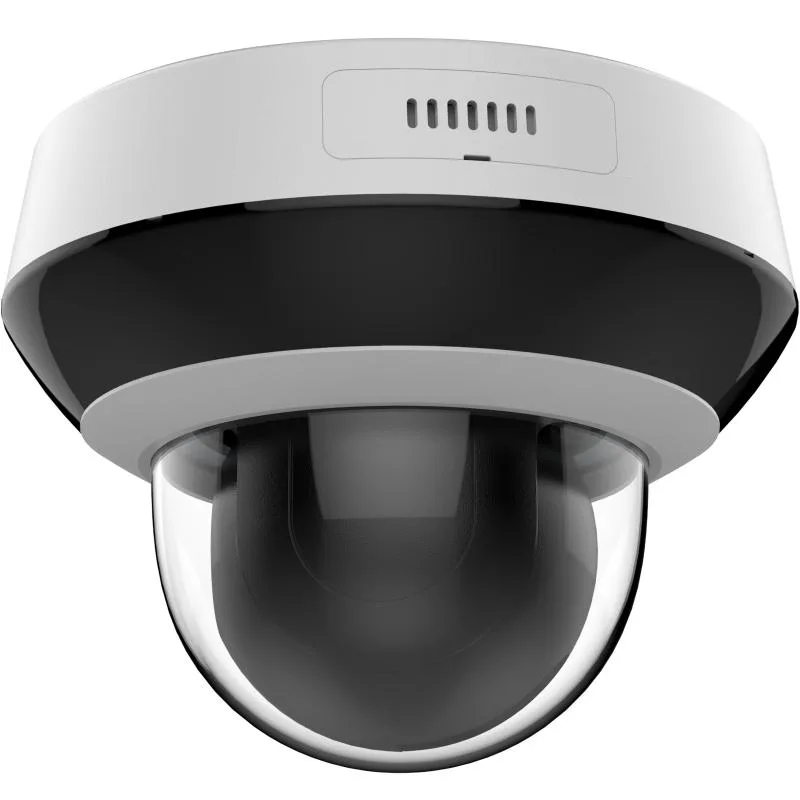

Hikvision DS-2DE2A204IWG1-E/W - PTZ IP kamera

Markaya göre filtrele

Hikvision DS-2DE2A204IWG1-E/W - PTZ IP kamera
Hikvision

Hikvision DS-2DE2A204IWG1-E/W - PTZ IP kamera

Model kodu
DS-2DE2A204IWG1-E/W
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Excellent low-light performance via powered-by-DarkFighter technology. Focuses on human and vehicle classification based on deep learning. 4x optical zoom allows for closer viewing of subjects in expansive areas. Built-in microphone and speaker for real-time audio security. Up to 20 m IR range ensures safety at night. Supports Wi-Fi connection and easy installation. Water and dust resistant (IP66) and vandal proof (IK10)

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 4x optical, 16x digital
Slow Shutter Yes
Focal Length 2.8 to 12 mm
FOV Horizontal field of view: 99.4° to 30.6°, vertical field of view: 51.8° to 17.2°, diagonal field of view: 120° to 35.1°
Focus Auto, semi-auto, manual
Aperture Max. F1.8
Zoom Speed Approx. 2 s
Supplement Light Type IR
Supplement Light Range IR Distance: up to 20 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Movement Range (Pan) 0° to 355°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s
Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Pan Yes
Presets 300
Park Action Preset,patrol scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task patrol scan,Preset,dome reboot,dome adjust
Power-off Memory Yes
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed regions for main stream
Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate 64 Kbps (G.711),16 Kbps (G.722.1),32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.726)
Audio Sampling Rate 8 kHz
Environment Noise Filtering Yes
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,WebSockets,WebSocket,ISUP,SSL/TLS,UDP,IPv4/IPv6,QoS,IGMP,SNMP,SMTP,UPnP,NTP,PPPoE,RTCP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect *Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser Chrome80+、Firefox80+、Safari13+、Edge89+
Encryption Mode 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Wi-Fi Protocols IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz - 2.4835 GHz
Channel Bandwidth 20/40 MHz
Modulation 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Transfer Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: mcs0 - msc7
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ＞52dB
Defog Digital Defog
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone 1 built-in microphone, picking up sounds in the radius up to 5 meters
Built-in Speaker 1 built-in speaker, with effective distance reaching max. 10 meters
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Power Output 12 VDC, max. 60 mA
Basic Event Motion detection, video tampering alarm, exception
Smart Event Line crossing detection,intrusion detection,region entrance detection,region exiting detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning
Power 12 VDC, Max. 11.2 W; PoE (802.3af)
Dimension Ø130.7 mm × 103.6 mm (Ø5.15" × 4.00")
Weight Weight: Approx. 560 g (1.23 lb.),With Package Weight: Approx. 780 g (1.72 lb.)
Operating Condition -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection
Protection IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection

Dokümanlar

Data Sheet - 2MP 4X IR Mini Outdoor WiFi Acusense PTZ Camera Quick Start Guide - 2MP 4X IR Mini Outdoor WiFi Acusense PTZ Camera User Manual - 2MP 4X IR Mini Outdoor WiFi Acusense PTZ Camera E13_IPDE_W V5.11.0_260624 Release Note - 2MP 4X IR Mini Outdoor WiFi Acusense PTZ Camera
