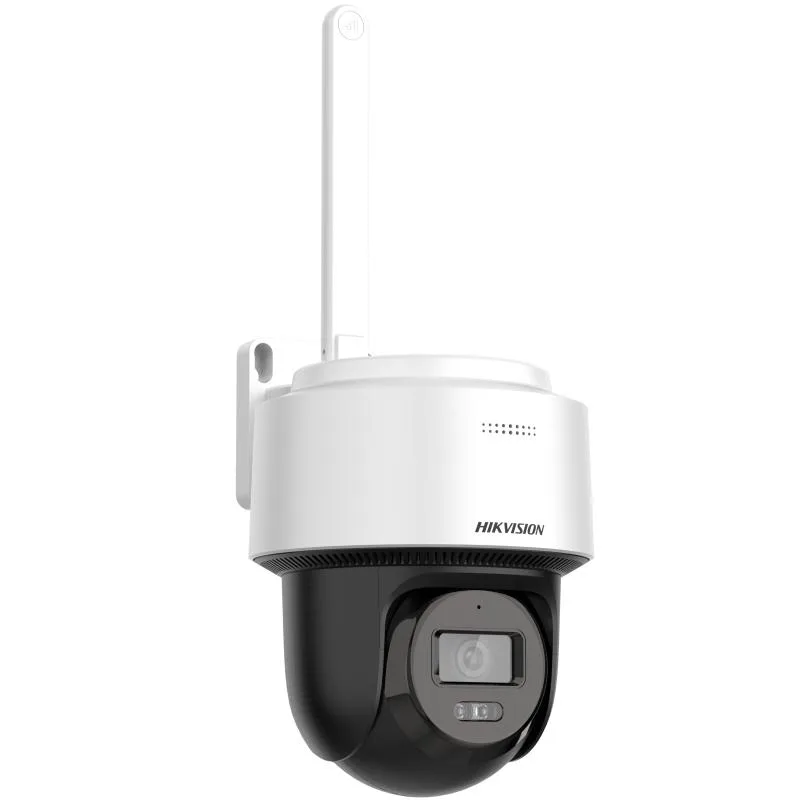

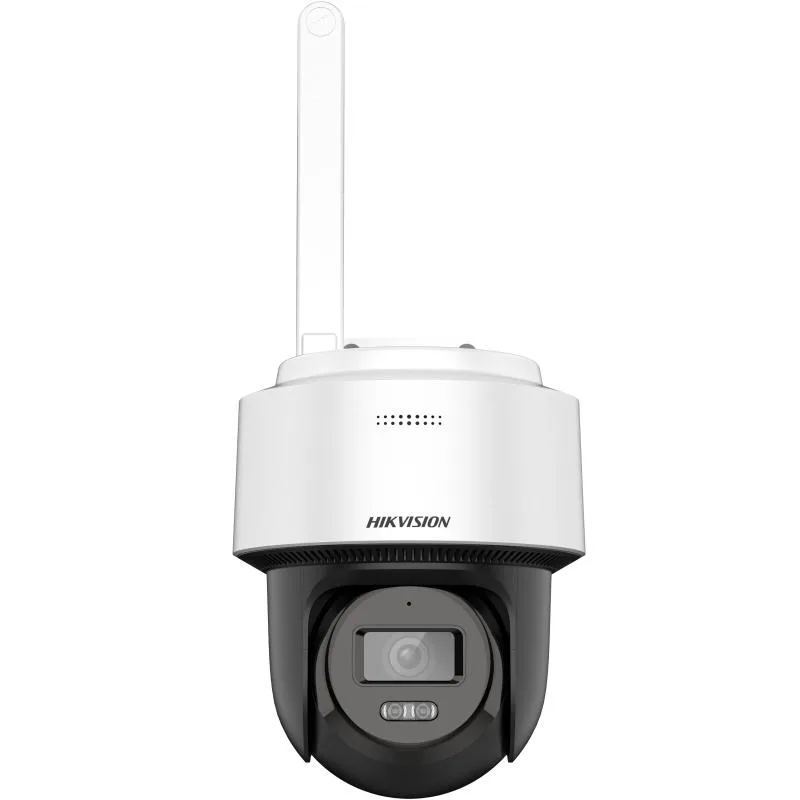

Hikvision DS-2DE2C400MWG-4G - Hibrit kayıt cihazı

Markaya göre filtrele

Hikvision DS-2DE2C400MWG-4G - Hibrit kayıt cihazı
Hikvision

Hikvision DS-2DE2C400MWG-4G - Hibrit kayıt cihazı

Model kodu
DS-2DE2C400MWG-4G
Sistem
Kamera sistemi
Kategori
Hibrit kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Support Human and Vehicle Detection. Support 4G LTE data transmission. Built-in microphone and speaker, support two-way audio. Smart Hybrid Light: advanced technology up to 30 meters. Support on-board storage up to 512 GB (SD card slot). Water and dust resistant (IP66)

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
Movement Range (Pan) 0° to 345°
Movement Range (Tilt) 0° to 80°
Pan Speed Up to 25°/s
Tilt Speed Up to 20°/s
DORI 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 20 fps (768 x 432) 60 Hz: 20 fps (768 x 432)
Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Audio Type Mono sound
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Audio Compression G.711/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+
Standard LTE-FDD,LTE-TDD
Frequency EU: LTE-FDD: B1/3/5/7/8/20/28 IN: LTE-FDD: B1/3/5/8 LTE-TDD: B34/38/39/40/41 LA: LTE-FDD: B2/3/4/5/7/8/28/66 NA: LTE-FDD: B2/4/5/12/13/17/66/71
Uplink and Downlink Data Rate EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps NA: uplink: 50 Mbps, downlink: 150 Mbps
SIM Card Type Nano SIM
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone 1 built-in microphone
Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset Key Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite
Power 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, *A switching adapter is included in the package.
Dimension 131.9 mm × 164 mm × 312.6 mm (5.19" × 6.46" × 12.31") 131.9 mm × 164 mm × 332.6 mm (5.19" × 6.46" × 13.10")
Material Plastic
Package Dimension 224 mm × 178 mm × 230 mm (8.82" × 7.01" × 9.06")
Weight Approx. 600 g (1.32 lb.)
With Package Weight Approx. 900 g (1.98 lb.)
Storage Conditions -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013

Dokümanlar

Network Camera-V5.8.35 Release Note-E9 E10 GL - 4 MP Fixed Outdoor Smart Hybrid-light 4G PT Network Camera
