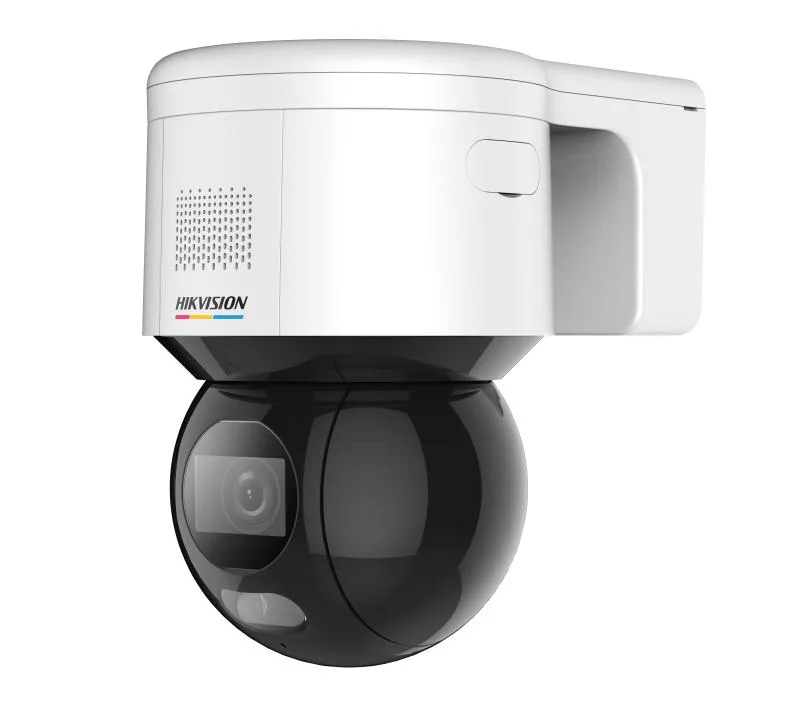

Hikvision DS-2DE3A400BW-DE(T5) - PTZ IP kamera
Hikvision

Hikvision DS-2DE3A400BW-DE(T5) - PTZ IP kamera

Model kodu
DS-2DE3A400BW-DE(T5)
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Focuses on human and vehicle targets classification based on deep learning. Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time. Linked audible and visual alarm. Built-in microphone and speaker. Up to 2560 × 1440 @ 30 fps. Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light. 24/7 colorful imaging with low power consumption. Up to 30 m white light distance. 120 dB WDR, 3D DNR, HLC. IP66; PoE

Teknik özellikler

Image Sensor 1/1.8" progressive scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
Shutter Speed 1/1 to 1/30,000 s
Day & Night 24/7 colorful imaging
Zoom 16x digital
Focal Length 4 mm
FOV Horizontal field of view: 88.7° Vertical field of view: 46.5° Diagonal field of view: 105.0°
Aperture F1.0
Supplement Light Type White Light
Supplement Light Range White Light Distance: up to 30 m
Movement Range (Pan) 350°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Park Action Preset, patrol scan
3D Positioning Yes
Scheduled Task Preset, patrol scan, dome reboot, dome adjust, aux output
Power-off Memory Yes
Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Environment Noise Filtering Yes
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security Authenticated username and password, MAC address binding, HTTPS encryption, IP address filter
Network Storage NAS (NFS, SMB/ CIFS)
Web Browser IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR) 120 dB WDR
SNR ＞52 dB
Defog Digital defog
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask Up to 24 masks (8 masks for each scene)
Regional Exposure Yes
Ethernet Interface 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
On-board Storage Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
Built-in Speaker 1 built-in speaker
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm 1 input, 1 output
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Yes
Power Output 12 VDC; < 60 mA
Basic Event Video tampering alarm, motion detection, alarm input, alarm output, exception
Smart Event Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
Linkage Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Face Capture Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
Power 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 14 W (including max. 4 W for white light)
Dimension 179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71")
Weight Approx. 1.125 kg (2.48 lb.)
Operating Condition Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
General Function Mirror, password protection, watermark, IP address filter
Demist Yes
Protection IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Dokümanlar

Data Sheet - 3-inch 4 MP ColorVu Mini PT Dome Network Camera User Manual - 3-inch 4 MP ColorVu Mini PT Dome Network Camera V5.8.0_260404 Release Notet - 3-inch 4 MP ColorVu Mini PT Dome Network Camera
