Hikvision

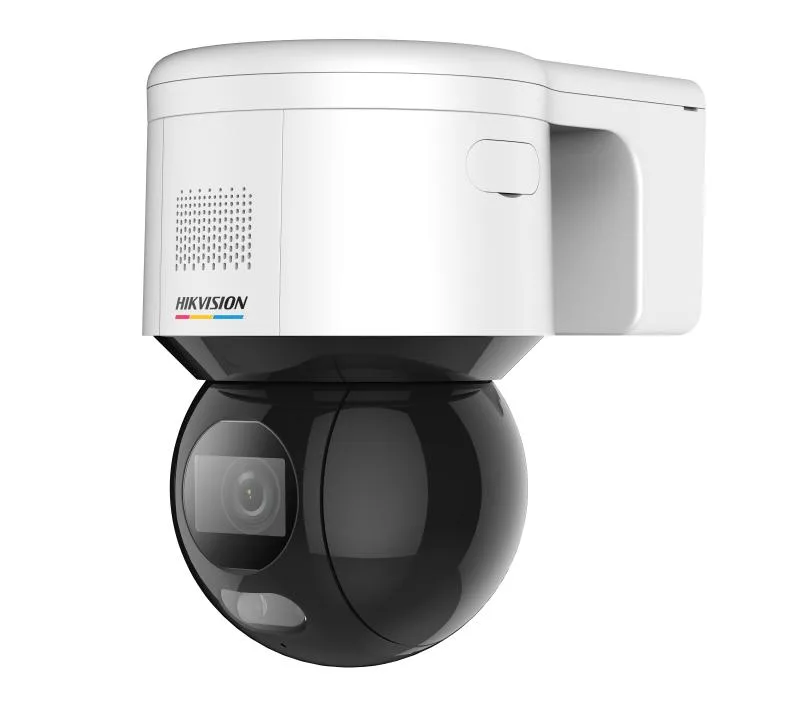

Hikvision DS-2DE3A400BW-DE/W(T5) - PTZ IP kamera
- Model kodu
- DS-2DE3A400BW-DE/W(T5)
- Sistem
- Kamera sistemi
- Kategori
- PTZ IP kamera
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
Accurate human and vehicle target classification and alarm, and face capture based on deep learning hardware and algorithm. Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time. Linked audible and visual alarm. Built-in microphone and speaker. Up to 2560 × 1440 @ 30 fps. Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light. 24/7 colorful imaging with low power consumption. Up to 30 m white light distance. 120 dB WDR, 3D DNR, HLC. IP66; PoE
Teknik özellikler
| Image Sensor | 1/1.8" progressive scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light |
| Shutter Speed | 1/1 to 1/30,000 s |
| Day & Night | 24/7 colorful imaging |
| Zoom | 16x digital |
| Focal Length | 4 mm |
| FOV | Horizontal field of view: 88.7° Vertical field of view: 46.5° Diagonal field of view: 105.0° |
| Aperture | F1.0 |
| Supplement Light Type | White Light |
| Supplement Light Range | White Light Distance: up to 30 m |
| Movement Range (Pan) | 350° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Environment Noise Filtering | Yes |
| Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP |
| User/Host | Up to 32 users. 3 user levels, administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| Client | iVMS-4200,Hik-Connect,*Wi-Fi connection with Hik-Connect directly is not possible |
| Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
| Encryption Mode | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Wi-Fi Protocols | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz -2.4835 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Transfer Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps |
| Wireless Range | Up to 50 m |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | ＞ 52 dB |
| Defog | Digital defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | Up to 24 masks (8 masks for each scene) |
| Regional Exposure | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at) |
| On-board Storage | Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB |
| Built-in Speaker | 1 built-in speaker |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 1 input, 1 output |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
| Power Output | 12 VDC; < 60 mA |
| Basic Event | Video tampering alarm, motion detection, alarm input, alarm output, exception |
| Smart Event | Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection |
| Linkage | Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Power | 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 16 W (including max. 4 W for white light) |
| Dimension | 179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71") |
| Weight | Approx. 1.125 kg (2.48 lb.) |
| Operating Condition | Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F) |
| General Function | Mirror, password protection, watermark, IP address filter |
| Demist | Yes |
| Protection | IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
