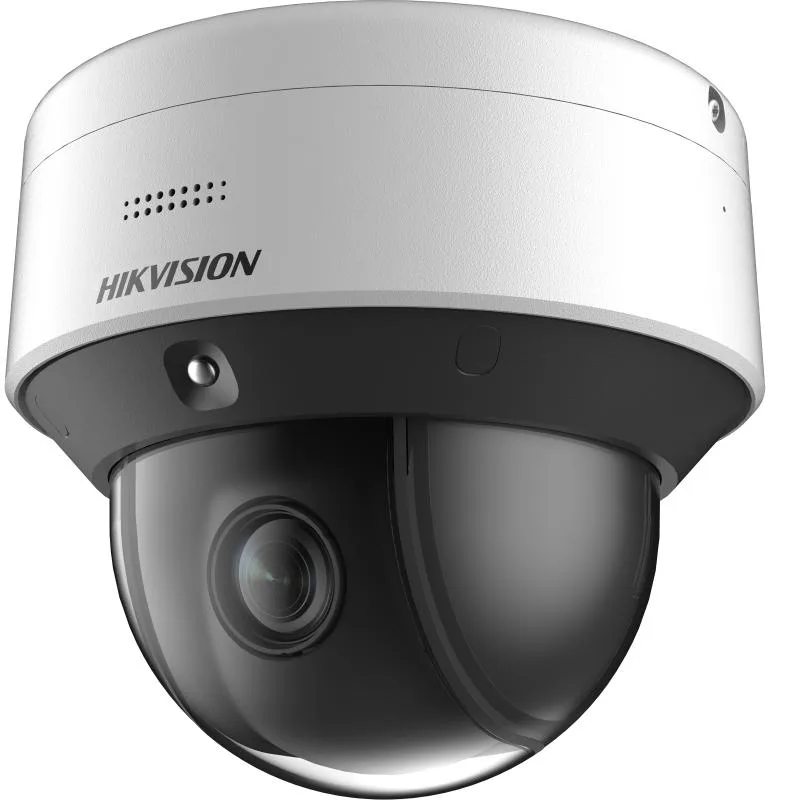

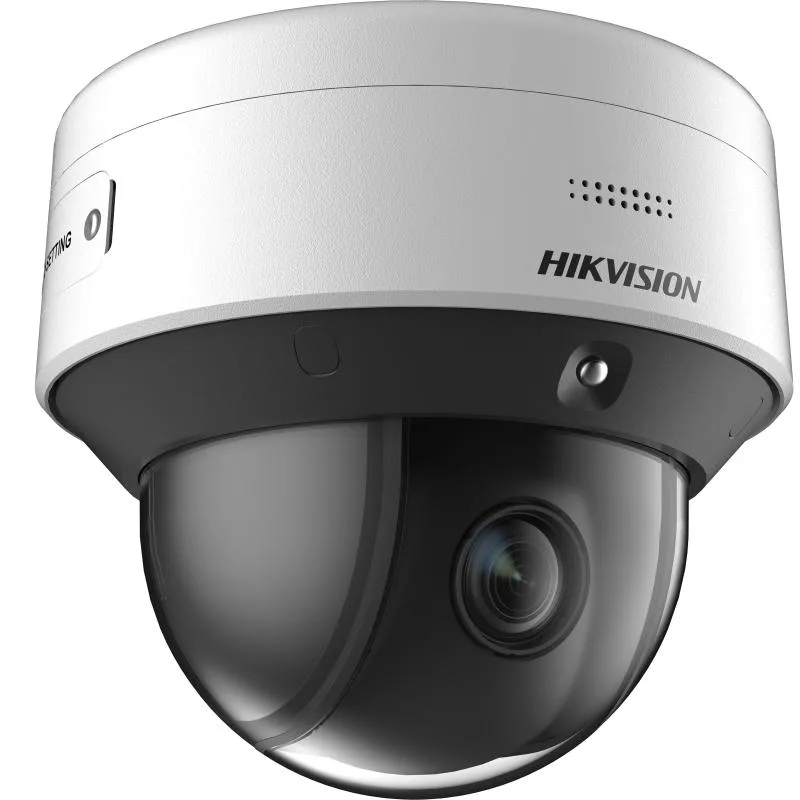

Hikvision DS-2DE3C210IX-DE(C1)(T5) - PTZ IP kamera
Hikvision

Hikvision DS-2DE3C210IX-DE(C1)(T5) - PTZ IP kamera

Model kodu
DS-2DE3C210IX-DE(C1)(T5)
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. 10x optical zoom and 16x digital zoom provide close up views over an expansive area. Up to 50 m IR range ensures safety at night. Supports face capture, detects, captures, grades and selects faces in motion, and outputs the best face picture. Water and dust resistant (IP66)

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.3, AGC ON), B/W: 0.001 Lux @ (F1.3, AGC ON), 0 Lux with IR
Shutter Speed 1/1 to 1/30,000 s
Day & Night IR cut filter
Zoom 10x optical, 16x digital
Slow Shutter Yes
Focal Length 2.8 to 28 mm
FOV Horizontal FOV 108° to 19.8°, vertical FOV 56.4° to 11.5°
Focus Auto, semi-auto, manual
Aperture Max. F1.3
Zoom Speed Approx. 6.0 s
Supplement Light Type IR
Supplement Light Range IR Distance: up to 50 m
Smart Supplement Light Yes
Movement Range (Pan) 355°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Park Action Preset, patrol scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, patrol scan, dome reboot, dome adjust, auxiliary output
Power-off Memory Yes
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Region of Interest (ROI) 8 fixed regions for each stream
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser Chrome 57+, Firefox 52+, Safari 11+, IE11
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 55 dB
Defog Digital Defog
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Microphone 1 built-in microphone
Built-in Speaker 1 built-in speaker
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm 1 input, 1 output
Power Output 12 VDC, max. 0.7 W
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan)
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Face Capture Detects up to 30 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture of the face
Power 12 VDC, Max. 24 W; PoE (802.3at)
Dimension Ø 156.4 mm × 142.1 mm (Ø 6.16" × 5.59")
Weight Approx. 1.90 kg (4.19 lb.)
Material Metal
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017);
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529-2013)

Dokümanlar

Data Sheet - 3-inch 2 MP 10X Powered by DarkFighter IR Network Speed Dome User Manual - 3-inch 2 MP 10X Powered by DarkFighter IR Network Speed Dome FAQ - 3-inch 2 MP 10X Powered by DarkFighter IR Network Speed Dome
