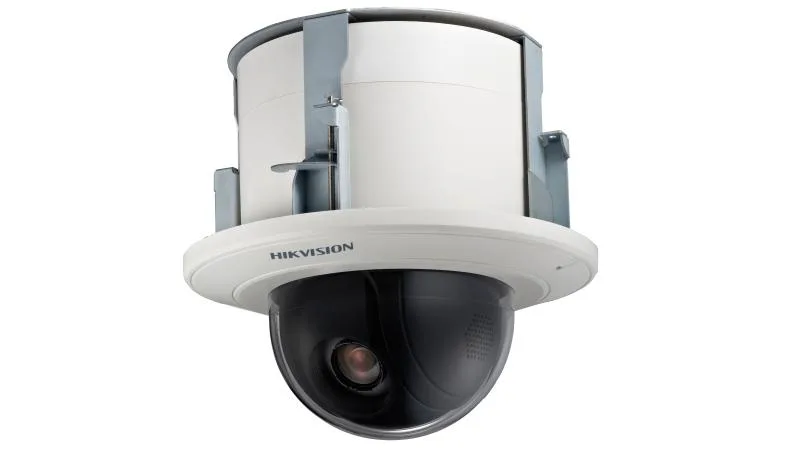

Hikvision DS-2DE5330W-AE3 - PTZ IP kamera

Markaya göre filtrele

Hikvision DS-2DE5330W-AE3 - PTZ IP kamera
Hikvision

Hikvision DS-2DE5330W-AE3 - PTZ IP kamera

Model kodu
DS-2DE5330W-AE3
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

1/2.8" progressive scan CMOS. High quality imaging with 3 MP resolution. Excellent low-light performance. 30 × optical zoom, 16 × digital zoom. WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus. 24 VAC & PoE (802.3at, class4). Efficient H.265+/H.265 compression technology

Teknik özellikler

FOV Horizontal field of view: 57.2° to 2.2° (Wide-Tele) Vertical field of view: 44.4° to 1.6° (Wide-Tele) Diagonal field of view: 68.5° to 2.7° (Wide-Tele)
Zoom Speed Approx. 4.1 s (optical lens, wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F4.4
Focal Length 4.5 mm to 135 mm, 30× optical zoom
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution 2048 × 1536
Main Stream 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users,3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm Linkage Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
Alarm Output 1-ch alarm output
Alarm Input 1-ch alarm input
Audio Input 2-ch audio input
Audio Output 1-ch audio output
Network Interface 1 RJ45 10 M/100 M Ethernet, PoE+ (802.3at, class4)
H.264+ Support
H.265+ Support
H.264 Type Baseline Profile/Main Profile/High Profile
Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
H.265 Type Baseline Profile/Main Profile/High Profile
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate G.711alaw/G.711ulaw: 64 Kbps G.722.1/G.726: 16 Kbps MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
SVC Support
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.05 Lux @(F1.6, AGC ON) B/W: 0.01 Lux @(F1.6, AGC ON)
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16×
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Movement Range (Pan) 360° endless
Pan Speed Configurable, from 0.1°/s to 250°/s, ,Preset speed: 300°/s
Movement Range (Tilt) From -5° to 90° (auto-flip)
Tilt Speed Configurable, from 0.1°/s to 150°/s,Preset Speed: 200°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning Support
PTZ Status Display Support
Preset Freezing Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Basic Event Detection Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
Smart Detection Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection
Smart Tracking Support
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
Material ADC 12, PC+ABS, PC/PMMA
Dimensions Φ 183.4 mm × 243 mm (Φ 7.22" × 9.57") (Indoor) Φ 245 mm × 236 mm (Φ 9.65" × 9.29") (In-ceiling)
Weight Approx. 3 kg (6.61 lb)
Protection Level 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power 24 VAC, 1.5 A, 50/60 Hz and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max.: 22 W
Working Temperature -10°C to 50°C (14°F to 122°F)
Working Humidity ≤ 90%

Dokümanlar

User Manual - 5-inch 3 MP 30X Powered by DarkFighter Network Speed Dome Release Note - 5-inch 3 MP 30X Powered by DarkFighter Network Speed Dome
