Hikvision

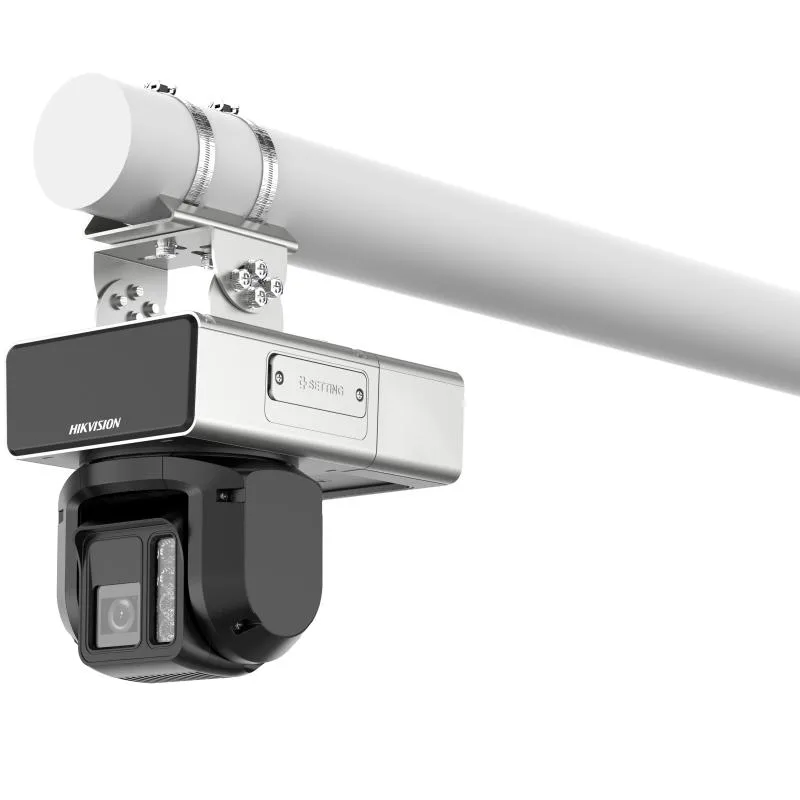

Hikvision DS-2DF3C400SCG-D(/4G)(/WL15 WL40)(F1) - PTZ IP kamera
- Model kodu
- DS-2DF3C400SCG-D(/4G)(/WL15 WL40)(F1)
- Sistem
- Kamera sistemi
- Kategori
- PTZ IP kamera
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
24/7 colorful imaging. High quality imaging with 4 MP resolution. Clear imaging against strong back lighting thanks to 120 dB WDR technology. 30m white light distance. Water and dust resistant (IP67). Supports 4G and low power consumption design. The lowest power consumption is less than 1 W.. Supports water level detection with millimeter wave radar. The detection distance ranges from 0.15 m to 15 m/40 m, and the precision reaches to ±1 mm.
Teknik özellikler
| Detection Distance | Water Level: 15 m |
|---|---|
| Distance Measurement Accuracy | ± 1 mm |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Speed | 1/1 s to 1/30000 s |
| Slow Shutter | Yes |
| Focal Length | 4 mm |
| FOV | Horizontal field of view: 67°, vertical field of view: 41°, diagonal field of view: 75° |
| Aperture | F1.0 |
| Supplement Light Type | White Light |
| Supplement Light Range | White light distance: up to 30 m |
| Smart Supplement Light | Yes |
| Movement Range (Pan) | 0° to 340° |
| Movement Range (Tilt) | -20° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 40°/s, preset speed: 40°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 40°/s, preset speed 40°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Park Action | Preset,pattern scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | patrol scan,Preset,dome reboot,dome adjust,aux output |
| Power-off Memory | Yes |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile,Main profile,High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC |
| Audio Bit Rate | 8 to 320 Kbps (MP3),64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC) |
| Audio Sampling Rate | MP2L2: 16kHz，32kHz，48kHz,PCM：8kHz，16kHz，32kHz，48kHz,AAC-LC: 16kHz，32kHz，48kHz,MP3：8 kHz，16 kHz，32 kHz，48 kHz |
| Protocols | IPv4/IPv6,HTTP,HTTPS,QoS,FTP,TCP/IP,ICMP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,UPnP,SMTP,SNMP,IGMP,UDP,Bonjour,NTP,ISUP |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI,SDK,ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection,complicated password,IP address filter,HTTPS encryption,host authentication (MAC address),watermark |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200 |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Wireless Range | Up to 50 m (The performance varies based on actual environment) |
| Mobile Communication Type | 4G |
| Frequency | TDD-LTE: Band38/39/40/41,FDD-LTE: Band 1/3/5/8,WCDMA:Band1/8,TD-SCDMA: B34/39,EVDO/CDMA1X: BC0,GSM:Band:3/8 |
| Standard | TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/EVDO/CDMA/GSM |
| SIM | Nano SIM |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain |
| Day/Night Switch | Day,night,auto,schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Exposure | Yes |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 2 input(s), 1 output(s) |
| RS-485 | 1 RS-485 (,HIKVISION, Pelco-P, Pelco-D) |
| Reset | Yes |
| Basic Event | exception |
| Alarm Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset),and PTZ actions (such as preset, patrol scan, pattern scan) |
| Power | 12 VDC ± 25%, max. 21 W |
| Dimension | 145 mm × 182 mm × 232 mm (5.7" × 7.16" × 9.13") |
| Weight | Approx. 1.8 kg (3.97 lb.) |
| Material | ADC12 |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Heater | Yes |
| Wiper | No |
| Demist | Yes |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015) |
| Safety | CE-LVD (EN 62368-1: 2014/A11: 2017),CB (IEC 62368-1: 2014 + A11) |
| Environment | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6K V lightning protection, surge protection and voltage transient protection |
