Hikvision

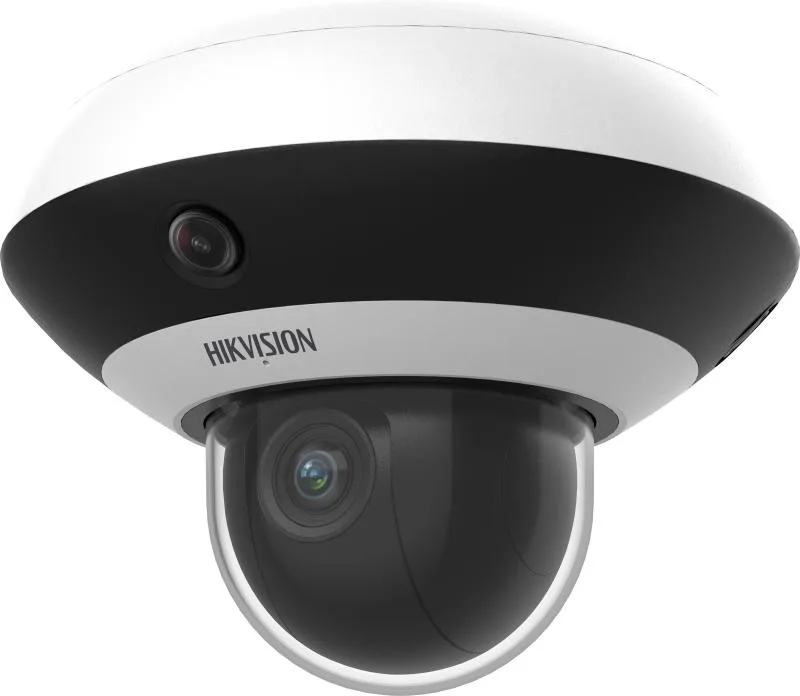

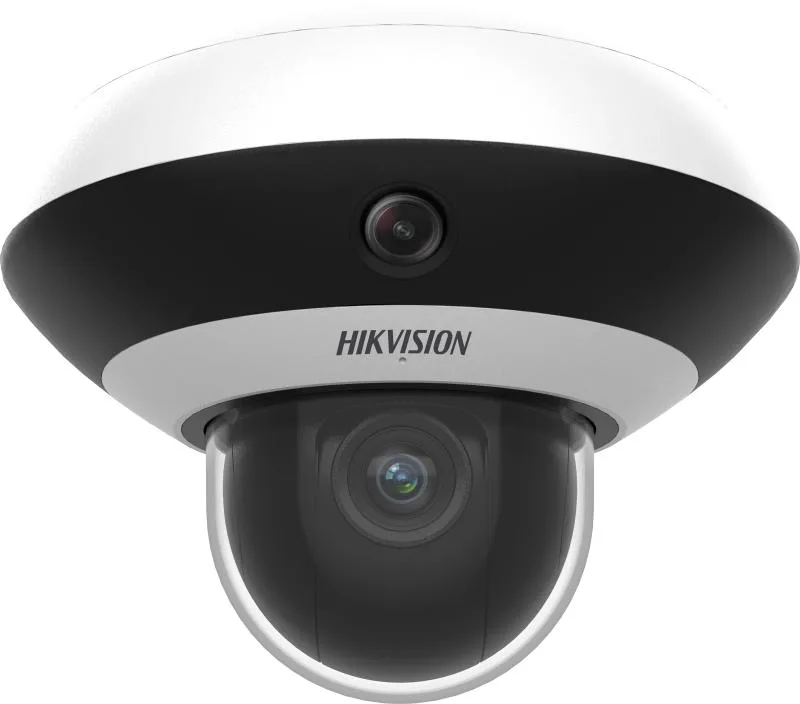

Hikvision DS-2DP3D404IWG1-E/36 - Panoramik/fisheye IP kamera
- Model kodu
- DS-2DP3D404IWG1-E/36
- Sistem
- Kamera sistemi
- Kategori
- Panoramik/fisheye IP kamera
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
Captures a large area and great details at the same time. High quality imaging with 4 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. Secures an expansive area with 4× optical zoom and 16× digital zoom. Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus. Supports 12V DC. Support regional population statistics function, which can enable regional population statistics for panoramic 1 stream + detail 1 stream
Teknik özellikler
| Image Sensor | [Panoramic channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/3" Progressive Scan CMOS |
|---|---|
| Min. Illumination | [Panoramic channel] Color: 0.03 Lux @ (F2.3, AGC ON), B/W: 0.01 Lux @ (F2.3, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.02 Lux @ (F1.82, AGC ON), B/W: 0.01 Lux @ (F1.82, AGC ON), 0 lux with IR |
| Shutter Speed | 1/30 s to 1/30,000 s |
| Slow Shutter | yes |
| Day & Night | ICR |
| Zoom | [PTZ channel] 4 × optical, 16 × digital |
| Max. Resolution | [Panoramic channel] 1920 × 1080, [PTZ channel] 2560 × 1440 |
| Focus | Auto,semi-auto,manual |
| Focal Length | [Panoramic channel] 2 mm, [PTZ channel] 2.8 to 12 mm |
| Zoom Speed | [PTZ channel]: approx. 3.3 s |
| FOV | [Panoramic channel] horizontal field of view: 125.3°, vertical field of view: 73.2°, diagonal field of view: 143.1°, [PTZ channel] horizontal field of view: 93.2° to 48.6°, vertical field of view: 50.3° to 27.3°, diagonal field of view: 109.7° to 55.8° |
| Aperture | [Panoramic channel] Max. F2.3, [PTZ channel] Max. F1.82 |
| Supplement Light Type | IR |
| Supplement Light Range | IR distance: up to 20 m |
| Movement Range (Pan) | [PTZ channel] 0° to 340° |
| Movement Range (Tilt) | [PTZ channel] 0° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 35°/s, preset speed: 35°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Power-off Memory | Yes |
| Park Action | Preset |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset,dome reboot,dome adjust |
| Main Stream | [PTZ channel] Channel 1: 50 Hz: 25 fps (1920 × 1080,1280 × 960,1280 × 720), 60 Hz: 30 fps (1920 × 1080,1280 × 960,1280 × 720) [Panoramic channel] Channel 2, 3, 4: 50 Hz: 25 fps (2560 × 1440,1920 × 1080,1280 × 960,1280 × 720), 60 Hz: 30 fps (2560 × 1440,1920 × 1080,1280 × 960,1280 × 720) |
| Sub-Stream | [Panoramic channel] 50 Hz:25 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 576,640 × 480,352 × 288) 60 Hz:30 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 480,640 × 480,352 × 240) [PTZ channel] 50 Hz:25 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 576,640 × 480,352 × 288) 60 Hz:30 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 480,640 × 480,352 × 240) |
| Third Stream | [Panoramic channel] 50 Hz: 25 fps (1920 × 1080, 1280 x 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 x 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 50 Hz: [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 x 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 x 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| Region of Interest (ROI) | 8 fixed regions for main stream |
| Video Bit Rate | 32 Kbps to 16384 Mbps |
| H.264 Type | Baseline profile,Main profile,High profile |
| H.265 Type | Main profile |
| Video Compression | H.265, H.264, MJPEG |
| Scalable Video Coding (SVC) | Yes |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC |
| Audio Bit Rate | 8~320 Kbps(MP3)/16 Kbps(G.726)/16 Kbps(G.722.1)/32~192 Kbps(MP2L2)/16~64 Kbps(AAC-LC)/PCM/64 Kbps(G.711ulaw/G.711alaw) |
| Audio Sampling Rate | 32kHz/16kHz/48kHz/8kHz |
| Environment Noise Filtering | Yes |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTCP,RTSP,NTP,UPnP,SMTP,SNMP,IGMP,QoS,UDP,Bonjour,SSL/TLS,WebSocket,WebSockets |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log |
| Client | iVMS-4200 |
| Web Browser | IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+ |
| Image Settings | sharpness, saturation, brightness, contrast |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Day/Night Switch | Day,night,auto,schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | [Panoramic channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks |
| Regional Focus | [Panoramic channel] No, [PTZ channel] Yes |
| Regional Exposure | Yes |
| Image Parameters Switch | Yes |
| Built-in Microphone | 1 built-in microphone |
| Built-in Speaker | 1 built-in speaker |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| RS-485 | No |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB |
| Reset | yes |
| Basic Event | Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection |
| Linkage | [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| General Function | mirror,watermark,IP address filter,password protection |
| Power | DC 12V| 2A ，PoE(802.3at) 42.5-57V| 0.6A |
| Operating Condition | -10 °C to 50 °C (14 °F to 122 °F). Humidity 90% or less (non-condensing) |
| Material | PC |
| Dimension | Ø183.2 mm × 128.6 mm (Ø7.2" × 5.2") |
| Weight | Approx. 0.9 kg (1.98 lb.) |
| Protection | IP54 (IEC 60529-2013) |
