Hikvision DS-2DT6223-AELY - PTZ IP kamera

Markaya göre filtrele

Hikvision DS-2DT6223-AELY - PTZ IP kamera
Hikvision

Hikvision DS-2DT6223-AELY - PTZ IP kamera

Model kodu
DS-2DT6223-AELY
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

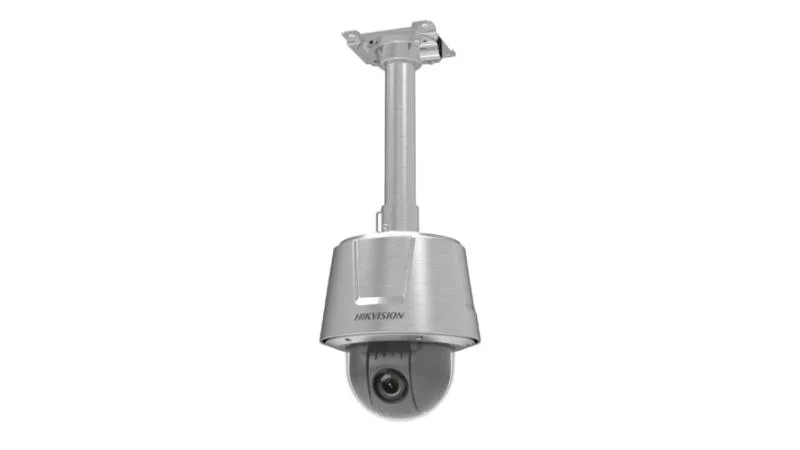

316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras. A built-in heater allows for start-up in ultra-low temperatures to -40℃. IP67/IK10: water resistant and vandal proof, preventing water ingress for outdoor use. DarkFighter technology enables the capture of high quality color images in even the dimmest lighting environments. PTZ: pan-tilt-zoom ability allows the camera to move to view zones of interest. Up to 23X zoom: zoom to examine subjects of interest within expansive scenes

Teknik özellikler

FOV 59.8° to 3.0° (Wide-Tele)
Zoom Speed Approx. 4.4 s (Optical Wide-Tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.5 to F3.4
Focal Length 5.9 to 135.7 mm, 23× optical zoom
Sub-Stream 50Hz: 25fps (704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
Max. Resolution 1920 × 1080
Main Stream 50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720)
Third Stream 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
SVC Yes
Image Sensor 1/1.8" progressive scan CMOS
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16×
Privacy Mask 24 programmable privacy masks; optional multiple colors and mosaics
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB
Rapid Focus No
Movement Range (Pan) 360° endless
Pan Speed Configurable, from 0.1°/s to 300°/s, preset speed: 540°/s
Movement Range (Tilt) From -10° to 90°
Tilt Speed Configurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory Yes
Park Action Preset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan
Scheduled Task Preset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Dome adjust/Aux output

Dokümanlar

Data Sheet - 6-inch 23x Anti-corrosion Network Speed Dome Quick Start Guide - 6-inch 23x Anti-corrosion Network Speed Dome

Bu ürünü satan firmalar

1 firma
TESAN İLETİŞİM A.Ş
Bahçelievler, İstanbul
