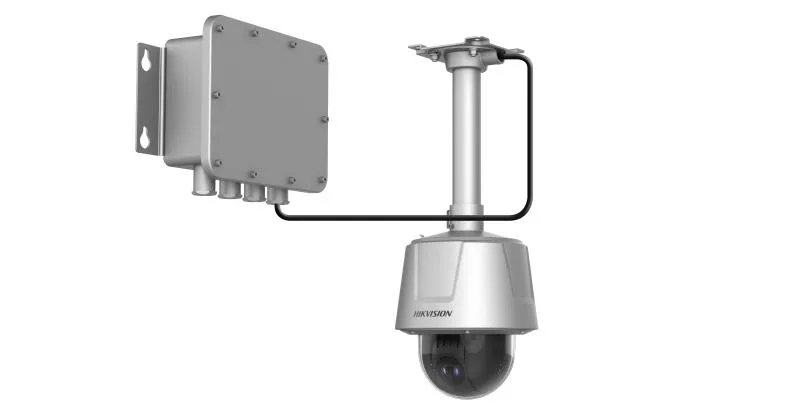

Name: Hikvision DS-2DT6232X-AELY(T5) - PTZ IP kamera
Brand: Hikvision

Image Sensor

1/1.8＂ progressive scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)

Shutter Speed

1/1s ~ 1/30,000s

Day & Night

ICR

Zoom

32 × optical, 16 × digital

Slow Shutter

yes

Focal Length

5.9mm to 188.8mm, 32× Optical

FOV

Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)

Focus

semi-auto,manual,auto

Aperture

F1.5

Zoom Speed

approx. 4.5 s

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s

Tilt Speed

tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Power-off Memory

yes

Main Stream

50Hz:25fps(1920×1080,1280×960,1280×720)； 60Hz:30fps(1920×1080,1280×960,1280×720)；

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265, H.264, MJPEG

Video Bit Rate

32 Kbps ~ 16384 Kbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

main profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

fixed region

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

Smooth Streaming

yes

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Day/Night Switch

day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

140 dB WDR

SNR

≥52dB

Defog

yes

Image Enhancement

HLC/BLC/3D DNR/EIS/Regional Exposure/Regional Focus

Privacy Mask

up to 24 masks,polygon region, mosaic mask, mask color configurable

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

Audio

1-ch audio input and 1-ch audio output

Alarm

7-ch alarm input and 2-ch alarm output

RS-485

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Basic Event

Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)

Smart Event

Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)

Linkage

Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Smart Linkage

manual tracking, event tracking, auto-tracking

Face Capture

Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

Road Traffic

Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)

Power

24 VAC Hi-PoE

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

General Function

mirror, password protection, watermark, IP address filter

Language

32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10
