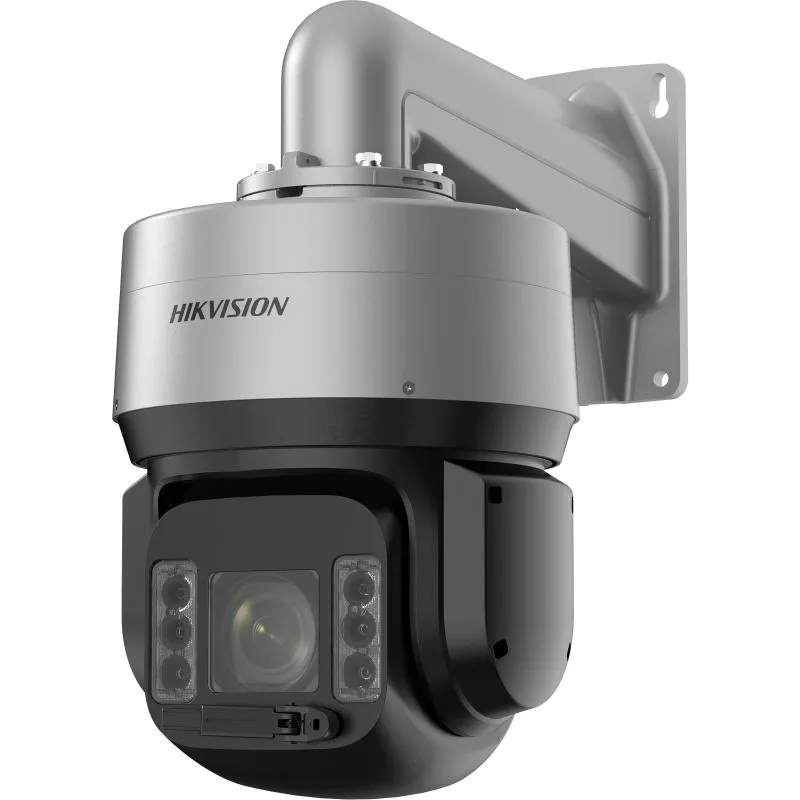

Hikvision DS-2DV6C425MXG-ELWY - PTZ IP kamera
Hikvision

Hikvision DS-2DV6C425MXG-ELWY - PTZ IP kamera

Model kodu
DS-2DV6C425MXG-ELWY
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

1/1.8" Progressive Scan CMOS. High quality imaging with 4 MP resolution. 25 × optical zoom and 16 × digital zoom provide close up views over expansive areas. Excellent low-light performance via DarkFighter 2.0 technology. Expansive night view with up to 50 m white light distance and 200 m IR distance. Supports low latency, camera decoding with a delay as low as 100 ms. Smart Pan-Tilt Correction. Built-in gyroscope to ensure stable image output. Water and dust resistant (IP67)

Teknik özellikler

Image Sensor 1/1.8＂ progressive scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.5, AGC ON),B/W: 0.0001 Lux @ (F1.5, AGC ON),0 Lux with IR
Shutter Speed 1/30 s to 1/30,000 s
Day & Night ICR
Zoom 25 × optical,16 × digital
Slow Shutter yes
Focal Length 5.9mm to 147.5 mm
FOV Horizontal field of view: 57.6° to 3.3°, vertical field of view: 32.3° to 1.8°, diagonal field of view: 67.1° to 2.3°
Focus Auto,semi-auto,manual,rapid focus
Aperture F1.5
Zoom Speed Approx. 4.8 s
Supplement Light Range IR distance: up to 200 m,White light distance: up to 50 m
Movement Range (Pan) 360°
Movement Range (Tilt) -20° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 210°/s, preset speed: 210°/s
Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 150°/s
Proportional Pan yes
Presets 300
Preset Freezing yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Park Action Preset,patrol scan
3D Positioning yes
PTZ Status Display yes
Scheduled Task Preset,patrol scan,dome reboot,dome adjust,aux output
Power-off Memory yes
Main Stream 50 Hz: up to 75 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: up to 90 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16384 Kbps
H.264 Type baseline profile||main profile||high profile
H.265 Type main profile
Scalable Video Coding (SVC) yes
Region of Interest (ROI) fixed region
Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC-LC)
Protocols IPv4/IPv6,HTTP,HTTPS,FTP,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,ISUP,Bonjour,WebSocket,WebSockets,SSL/TLS,ARP,SRTP,SFTP
Simultaneous Live View Up to 20 channels
API ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security Password protection,complicated password,HTTPS encryption,watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
Network Storage NAS (NFS, SMB/CIFS)
Client iVMS-4200,Hik-Connect,HikCentral Pro
Web Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
Model Specification Up to 4 models, Model type: detection model, classification model, mixed model (detection model and classification model)
Day/Night Switch day, night, auto, scheduled-switch
SNR ≥52dB
Defog Optical defog
Wide Dynamic Range (WDR) 150 dB
Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus yes
Regional Exposure yes
Ethernet Interface RJ45, self-adaptive 10M/100M Ethernet port
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
Alarm 7 alarm inputs, 2 alarm outputs
RS-485 HIKVISION, Pelco-P, Pelco-D, self-adaptive
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Basic Event Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,smart tracking
Perimeter Protection Line crossing detection, region entrance detection, intrusion detection, region exiting detection
Smart Tracking Manual tracking, auto-tracking 3.0
Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
Power 36 VDC± 25%, max. 60 W (Max. 36 W, including max. 6.4 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class7, max. 75W (Max. 36 W, including max. 6.4 W for IR and max. 8 W for heater)
Dimension Ø214.9 mm × 288.3 mm (Ø8.5" × 11.3")
Weight Approx. 6.1 kg (13.45 lb.)
Operating Condition Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
General Function mirror, password protection, watermark, IP address filter
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Heater Yes
Wiper Yes
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)
Safety CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
Anti-Corrosion Protection NEMA 4X (NEMA 250-2018)

Dokümanlar

Data Sheet - Vibration Resistant 6C Series 4MP 25X Darkfighter Network Speed Dome User Manual - Vibration Resistant 6C Series 4MP 25X Darkfighter Network Speed Dome
