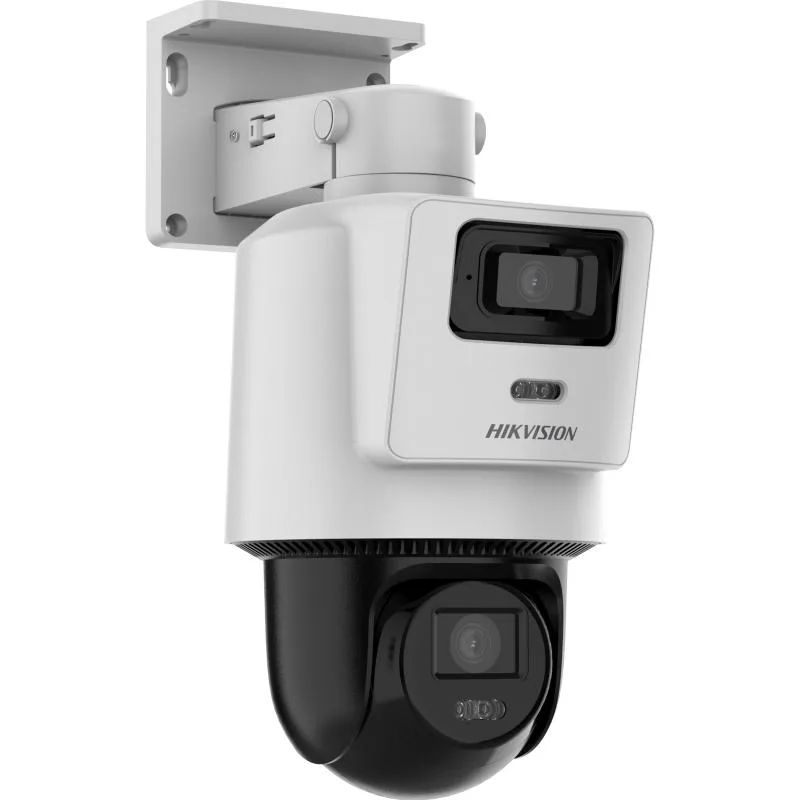

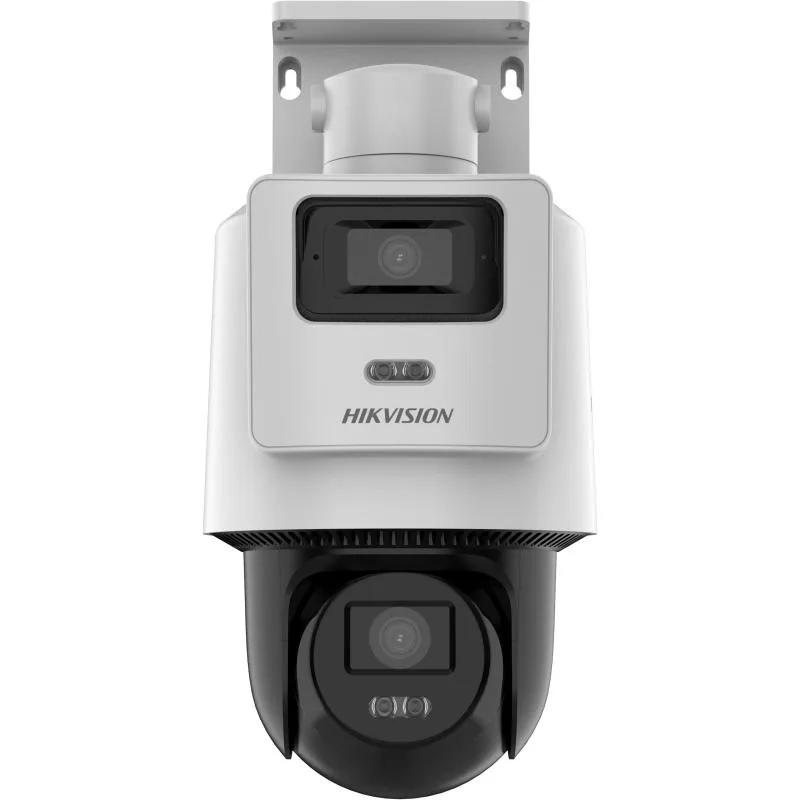

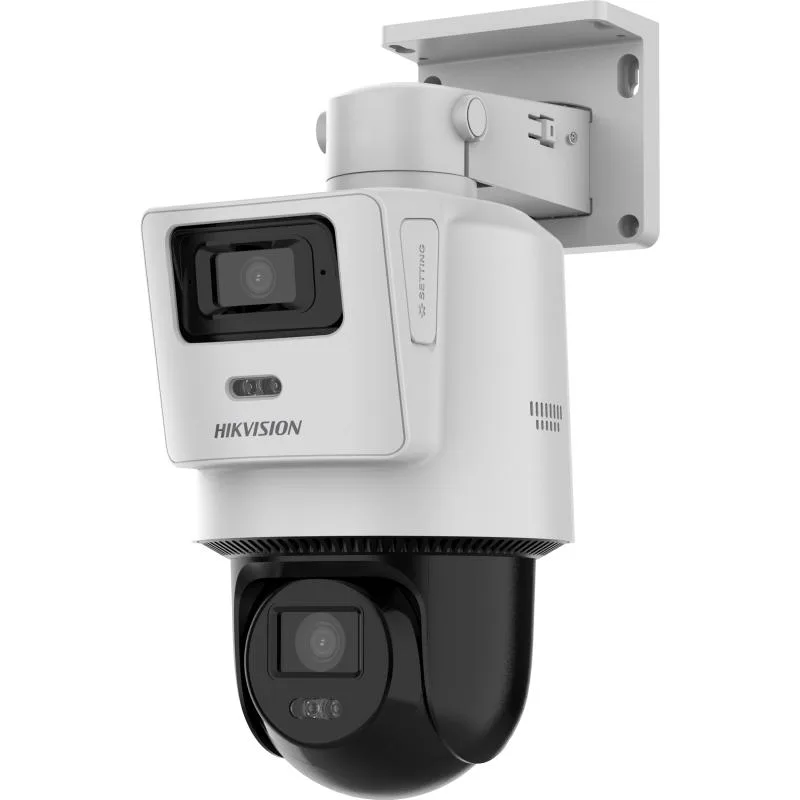

Hikvision DS-2SE2C400MWG-E/14

Name: Hikvision DS-2SE2C400MWG-E/14
Brand: Hikvision

Markaya göre filtrele

1st Player A4 Tech ABB Absen Acer Aero Cool Ajax Amd Aoc APart Audio Argox Artes Aruba Aselsan AselsanNET Astor Şarj ASUS Atlas Turnike Aukey Aztech Bawcon Bebird Benq Berqnet Bitdefender Bitfenix Biwin Bluetti Bory Bosch Brother Bticino BULLWARK CamBox CAME Canon Cas Cenova Codegen Colop Commax Crucial Cube Dahua Dark Datalogic Dayline Dayzip Decon Deep Cool Dell Digitus Dji Dlink DSC DSC Alarm EATON Endikal Epson Eşarj Eset Esonic Everest Excel EZVIZ FAAC Fanvil Finder Flaxes Flexsolar Foem Formrack Fortigate Fragile Frisby FSP Fujitron Gameon Gigabyte Gigaset Global Glorious Godex GVD H3C Hawk Hcs HI-LEVEL High power Hikvision HiLook Hochiki Honeywell HP HPRT Huawei Hytech Imou Inca Inform INNO Intel Inter-M Ip-Com Jabra JETVİEW Kamera Kutusu Karel Kaspersky Kingston Kioxia Kodpos Kokoni Kyocera Lande Leaderhub Legrand Lenovo Lexar Leyard Lg LifeSmart Logitech M3 Mobile Mack Makelsan Mavili Metcom Microsoft Msi Multitek NarBulut Netelsan NETGEAR Nets Neutron Newland Nexans Nice Notifier Oem Omada Oring Osram Özak Palmx Panasonic Paradox Perkon Philips Plm Pny Point Mobil Powermaster Proxsen QNAP Qport Rampage Rapoo Raydın Razer Redragon Reyee Ruijie Ruijie-Reyee Samsonite Samsung Sandisk Schneider Electric Seagate Sensei Sewoo Slink Spenta Spider Sunlux Suprema Tazga Technopc Teknim Teknosec Teletek Tenda Tescom Tiandy Tiwox TOA Toshiba TP-Link Tplink-Vigi Tsc Ttec Turkcell Twinmos TX Ubiquiti Ugreen Unilumin Uniwiz UNV Uptech Uranium Vacos Vento Vestel vGUARD Viewsonic WD Weko Westa Western Digital Wisetech Xbright Xerox Xprinter Yealink Yıldırım Zalman Zebra ZES ZKTeco ZYXEL

Hikvision

Hikvision DS-2SE2C400MWG-E/14

Model kodu: DS-2SE2C400MWG-E/14
Sistem: Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Capture a large area and details at the same time. Support Human and Vehicle detection. Smart Hybrid Light: advanced technology with long range. Hik-Connect cloud service and app for remote management and views of devices. Built-in microphone and speaker for real-time audio security. Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB. Water and dust resistant (IP66)

Teknik özellikler

Image Sensor	[Bullet channel] 1/2.8" Progressive Scan CMOS [PTZ channel] 1/2.8" Progressive Scan CMOS
Min. Illumination	[Bullet channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR [PTZ channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR
Shutter Speed	1 s to 1/30,000 s
Slow Shutter	Yes
Day & Night	ICR
Max. Resolution	[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Focal Length	[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
FOV	[Panoramic channel] horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°, [PTZ channel] horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51°
Aperture	[Bullet channel] F1.6, [PTZ channel] F1.6
Supplement Light Type	[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
Supplement Light Range	[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
Smart Supplement Light	Yes
Movement Range (Pan)	[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
Movement Range (Tilt)	[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
Pan Speed	Pan speed: configurable from 4° to 25°/s, preset speed: 25°/s
Tilt Speed	Tilt speed: configurable from 4° to 20°/s, preset speed 20°/s
Presets	300
Power-off Memory	Yes
Scalable Video Coding (SVC)	Yes
Region of Interest (ROI)	1 fixed region for main stream
Main Stream	[Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream	[Bullet channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression	Main stream: H.265/H.264/Smart264/Smart265, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 4 Mbps
H.264 Type	Baseline profile,Main profile,High profile
H.265 Type	Main profile
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM)
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Protocols	TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
API	ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security	Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users. 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect,Hik Partner Pro
Web Browser	Chrome 31 to 44, Firefox 30 to 51, Safari 8.0+
Image Settings	Saturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR)	Digital WDR
SNR	≥ 52 dB
Day/Night Switch	Day,night,auto,schedule
Image Enhancement	BLC,HLC,3D DNR
Privacy Mask	[Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks
Image Parameters Switch	Yes
Built-in Microphone	1 built-in microphone
Built-in Speaker	1 built-in speaker
Ethernet Interface	1 RJ45 10 M/100M self-adaptive Ethernet port
On-board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset	Yes
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), exception
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning
Material	PC
General Function	Mirror,password protection,watermark,IP address filter
Power	12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 21.5 W
Operating Condition	-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimension	134 mm × 213.5 mm × 291.7 mm (5.3" × 8.4" × 11.5")
Weight	Weight: 1000 g (2.2 lb.) With Package Weight: 1500 g (3.3 lb.)
Protection	IP66 Standard, Surge Protection and Voltage Transient Protection
