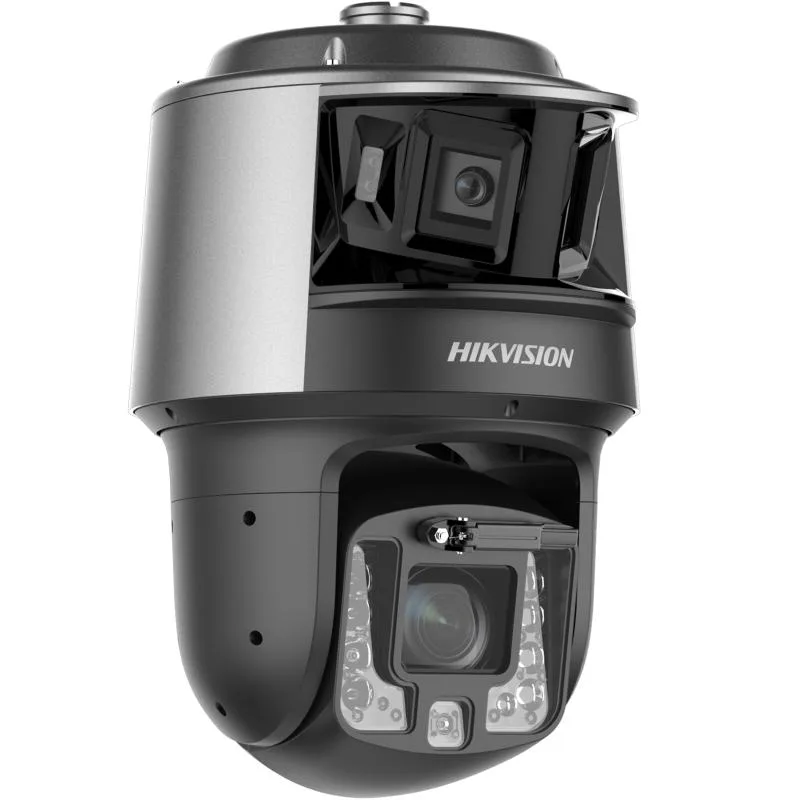

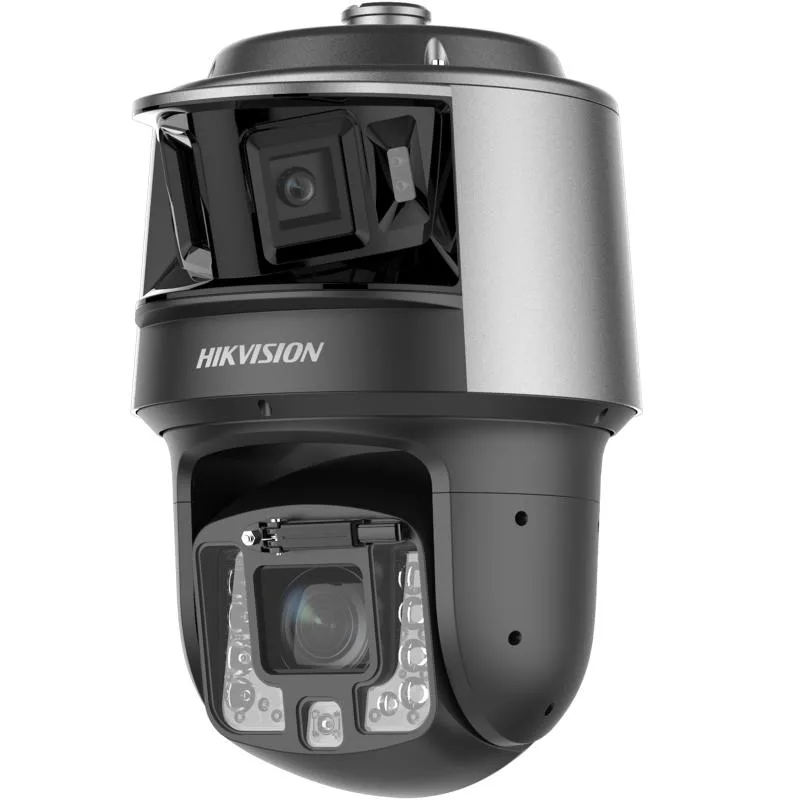

Hikvision DS-2SF7C420MXG0-EL(W)(Y)/2C - Panoramik/fisheye IP kamera

Markaya göre filtrele

Hikvision DS-2SF7C420MXG0-EL(W)(Y)/2C - Panoramik/fisheye IP kamera
Hikvision

Hikvision DS-2SF7C420MXG0-EL(W)(Y)/2C - Panoramik/fisheye IP kamera

Model kodu
DS-2SF7C420MXG0-EL(W)(Y)/2C
Sistem
Kamera sistemi
Kategori
Panoramik/fisheye IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Captures a large area and great details at the same time. High quality imaging with 12 MP resolution for bullet channel. 24/7 colorful imaging and excellent low-light performance with DarkFighter technology. Bullet channel tilt adjustable from 12° to 24°. Secures an expansive area with 20 × optical zoom and 16 × digital zoom. Expansive night view with up to 30 m white light distance and 250 m IR distance. Supports deep learning functions. Water and dust resistant (IP67)

Teknik özellikler

Image Sensor [Bullet channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with Light, [PTZ channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 lux with IR
Shutter Speed 1/25 s to 1/30000 s
Slow Shutter Yes
Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
Max. Resolution [Bullet channel] 5344 × 2256, [PTZ channel] 2688 × 1520
Focus Auto,semi-auto,manual
Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length [Bullet channel] 2.8 mm, [PTZ channel] 12 to 240 mm
FOV [Bullet channel] horizontal field of view: 190° ± 5°, vertical field of view: 75° ± 5°, diagonal field of view: 195° ± 5°, [PTZ channel] horizontal field of view: 30.7° to 2.8°, vertical field of view: 17.6° to 1.6°, diagonal field of view: 69.18° to 2.35°
Aperture [Bullet channel] F1.0, [PTZ channel] F1.0
Supplement Light Range [Bullet channel] White light: up to 30 m, [PTZ channel] white light: up to 30 m, IR: up to 250 m
Smart Supplement Light Yes
Movement Range (Pan) [PTZ channel] 0° to 360°
Movement Range (Tilt) [Bullet channel] 12° to 24°, [PTZ channel] -20° to 90°
Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan [Bullet channel] No, [PTZ channel] Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Main Stream [Bullet channel] 50 Hz: 25 fps (5344 × 2256，4384 × 1856，3680 × 1656), 60 Hz: 24 fps (3840 × 1080),[PTZ channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080，1280 × 960，1280 × 720, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream [Bullet channel] 50 Hz: 25 fps (1336 × 564, 960 × 432), 60 Hz: 25 fps (1336 × 564, 960 × 432),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream [Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate 16 to 64Kbps (AAC-LC),32 to 192 Kbps (MP2L2)
Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering Yes
API ISUP,ISAPI,SDK,Open Network Video Interface (Profile S, Profile G, Profile T)
Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Protocols IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Security Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
Client iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Day/Night Switch Day,night,auto,schedule
Image Enhancement HLC,3D DNR
Wide Dynamic Range (WDR) [Bullet channel] No, [PTZ channel] 120 dB
Defog Optical defog
Image Stabilization EIS
Regional Exposure Yes
Regional Focus [Bullet channel] No, [PTZ channel] Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch Yes
Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR ≥ 52 dB
Satellite Positioning No
Gyroscope Yes
Compass No
Ethernet Interface 1 RJ45 1000M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm 7 input(s), 2 output(s)
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Yes
Basic Event video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,audio except detection
Smart Event Line crossing detection,intrusion detection,region entrance detection,region exiting detection
Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking [PTZ channel] yes
Smart Linkage tracking takeover, linked tracking capture, panorama linkage
Multi-Target-Type Detection [Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
General Function mirror,password protection

Dokümanlar

Data Sheet - TandemVu 7C Series Panoramic 4 MP 20X DarkFighter Network Speed Dome Quick Start Guide - TandemVu 7C Series Panoramic 4 MP 20X DarkFighter Network Speed Dome User Manual - TandemVu 7C Series Panoramic 4 MP 20X DarkFighter Network Speed Dome
