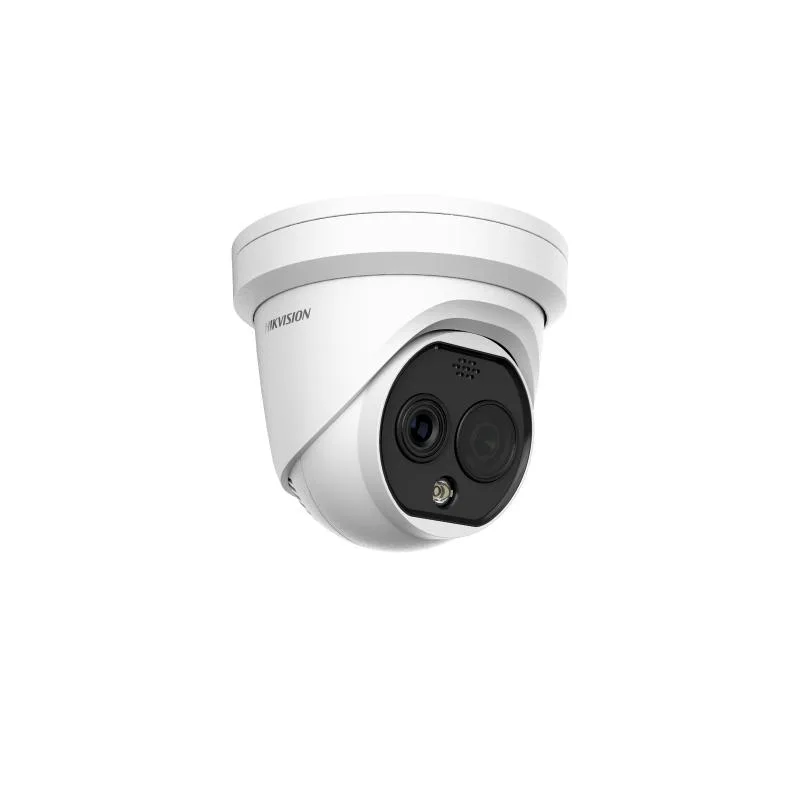

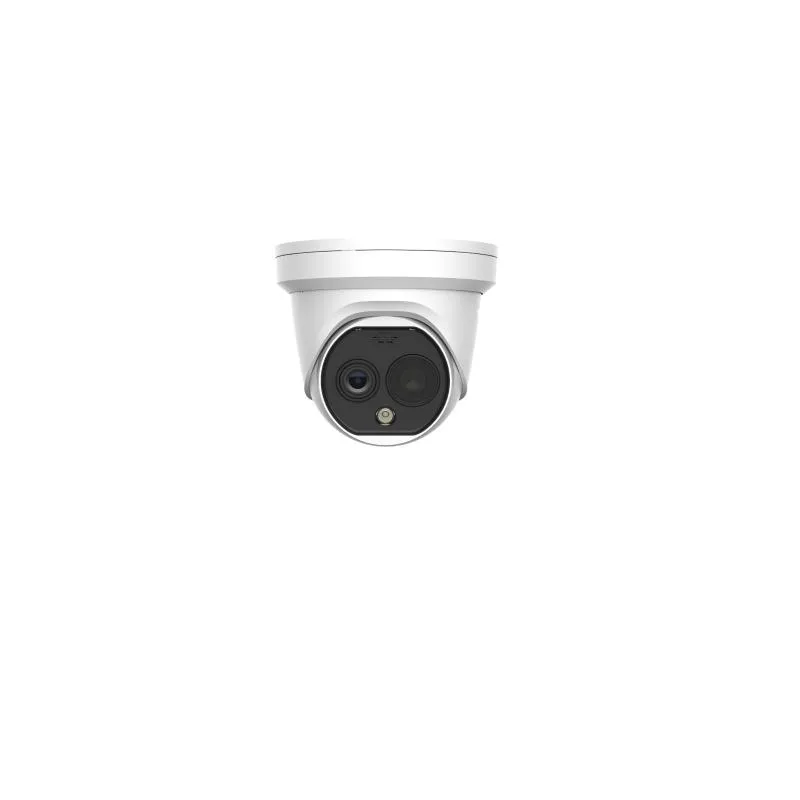

Hikvision DS-2TD1228T-3/QA(B) - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2TD1228T-3/QA(B) - Dome IP kamera
Hikvision

Hikvision DS-2TD1228T-3/QA(B) - Dome IP kamera

Model kodu
DS-2TD1228T-3/QA(B)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0). Video content analysis: vehicle/human classification. Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%). Support smoke detection algorithm. Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR. High quality detector with 10 years guarantee. Support smoking detection algorithm. Support sun-reflection filter and forklift alarm filter algorithm

Teknik özellikler

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 x 192
Pixel Pitch 12 μm
NETD ≤ 40 mK (@25° C,F# = 1.0)
Focal Length 3.6 mm
IFOV 3.33 mrad
Aperture F1.0
Field of View 50.0° × 37.3° (H × V)
Min. Focusing Distance 0.5 m
Digital Zoom ×2, ×4
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Field of View 84.0° ×43.1° (H × V)
Focal Length 4.3 mm
Shutter Speed 1 s to 1/100,000 s
White Balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode IR Cut Filter with Auto Switch
WDR 120 dB
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
IR Distance Up to 15 m
IR Intensity and Angle Automatically adjusted
White Light Range Up to 30 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm Yes, for three types of audible alarm (VCA and Temperature Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 550°C (-4°F to 1022°F);
Temperature Accuracy Max (±2°C, ±2 %)
General Function Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK, ISUP,，and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client iVMS-4200, Hik-Connect
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
Menu Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption 12 VDC ± 25%: 0.5 A, Max 6 W PoE (802.3af, class 3): 36 V to 57 V, 0.22 A to 0.14 A, Max 6.5 W
Working Temperature/Humidity Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less
Protection Level IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection
Dimensions 138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85")
Weight 940 g (2.07 lb)
VCA Range for Humans 24 m
VCA Range for Vehicles 72 m

Dokümanlar

Data Sheet - Thermal & Optical Bi-Spectrum Network Turret Camera User Manual - Thermal & Optical Bi-Spectrum Network Turret Camera General Firmware Update Release notes - Thermal & Optical Bi-Spectrum Network Turret Camera
