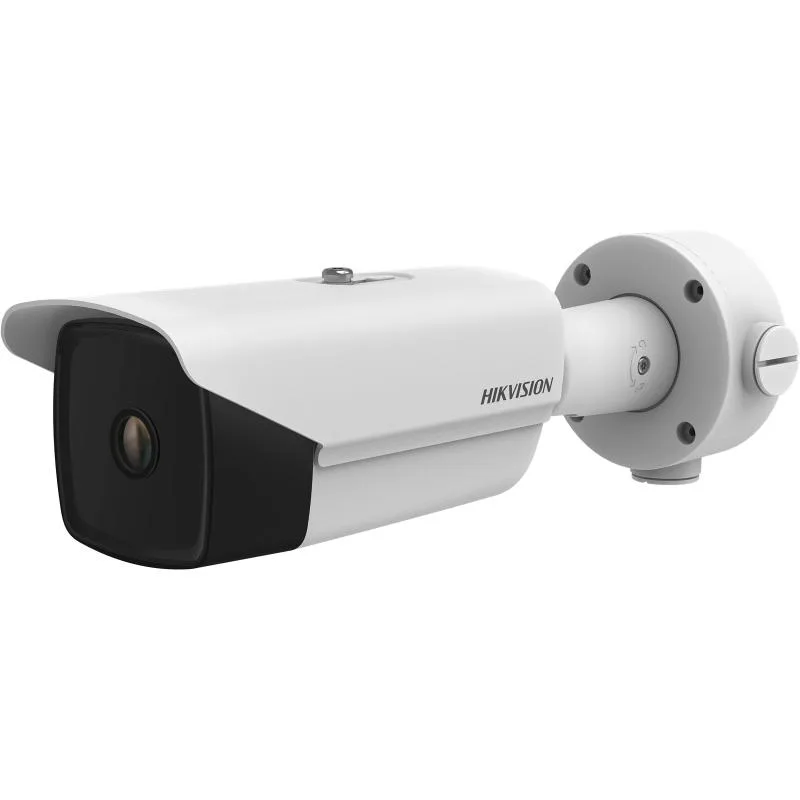

Hikvision DS-2TD2137T-7/QY - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2TD2137T-7/QY - Bullet IP kamera
Hikvision

Hikvision DS-2TD2137T-7/QY - Bullet IP kamera

Model kodu
DS-2TD2137T-7/QY
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0). Video content analysis: vehicle/human classification. Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%). Smoking detection Algorithm. Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR. High quality detector with 10 years guarantee

Teknik özellikler

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 384 x 288
Pixel Pitch 17 μm
Spectral Range 8 μm to 14 μm
NETD ≤ 35 mK (@25° C,F# = 1.0)
Focal Length 6.5 mm
IFOV 2.62 mrad
Aperture F1.0
Field of View 60° × 44.1° (H × V)
Min. Focusing Distance 0.6 m
Digital Zoom ×2, ×4, ×8
Target Coloration Yes. Supported in white hot and black hot mode.
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 550°C (-4°F to 1022°F);
Temperature Accuracy Max (±2°C, ±2 %)
Main Stream 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
Sub-stream 50 Hz: 25 fps (704 × 576, 352 × 288, 384 × 288)
Third Stream 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface ,ONVIF(Profile S, Profile G)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client iVMS-4200, Hik-Connect
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Menu Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3)
Power Consumption 24 VAC ± 25%: 0.13 A to 0.22 A, max 5 W 12 VDC ± 25%: 0.37 A to 0.61 A, max 5 W 24VDC: 0.21A, max 5 W PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W
Working Temperature/Humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
Protection Level IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing
Dimensions 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
Weight Approx. 1.77 kg (3.90 lb)
VCA Range for Humans 49 m
VCA Range for Vehicles 147 m

Dokümanlar

Data Sheet - Thermographic Network Bullet Camera Quick Start Guide - Thermographic Network Bullet Camera User Manual - Thermographic Network Bullet Camera General Firmware Update Release notes - Thermographic Network Bullet Camera
